Keysight Technologies

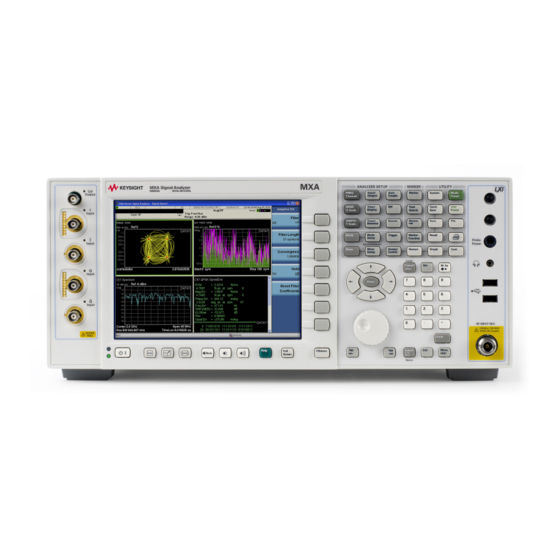

MXA X-Series Signal Analyzer
N9020A
Configuration Guide
This MXA configuration guide will help you
determine which performance options,
measurement applications, accessories,
and services to include with your new MXA
or to add as upgrades to an existing MXA.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Keysight Technologies MXA N9020A-508
Summary of Contents for Keysight Technologies MXA N9020A-508
- Page 1 Keysight Technologies MXA X-Series Signal Analyzer N9020A Configuration Guide This MXA configuration guide will help you determine which performance options, measurement applications, accessories, and services to include with your new MXA or to add as upgrades to an existing MXA.
- Page 2 02 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Configure Your Keysight N9020A MXA Signal Analyzer This step-by-step process will help you configure your new N9020A MXA X-Series signal analyzer. Tailor the performance to meet your requirements. For detailed specifications, refer to the specification guide (N9020-90113). For a summary of specifications, refer to the data sheet (5989-4942EN).
- Page 3 03 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 5. Choose analysis bandwidth Description Option number Additional information 10 MHz/25 MHz analysis bandwidth Standard Useful for most cellular communications, wireless connectivity, and audio/video broadcasting measurement applications; licensed as N9020A-B25 40 MHz analysis bandwidth N9020A-B40 Extends the analysis bandwidth to 40 MHz...
- Page 4 04 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 8. Add optional features Description Option number Additional information Enhanced display package N9020A-EDP Includes spectrogram, trace zoom, and zone span Basic EMI precompliance N9020A-EMC Perform basic EMI precompliance measurements with CISPR 16-1-1 detectors and bandwidths;...
- Page 5 05 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 12. Choose measurement application or software and license type Note: The last two letters of the ordering numbers indicate the license type—FP stands for fixed perpetual, TP for transportable perpetual; it is recommended that you configure each application with the same license type;...
- Page 6 06 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 12. Choose measurement application software and license type, continued Description Fixed license Transportable Additional information license Wireless connectivity Mobile WiMAX™ N9075A-2FP N9075A-2TP Standard-based, one-button Mobile WiMAX measurements; supports analog baseband analysis with Option BBA (BBIQ inputs) Fixed WiMAX N9074A-XFP...
- Page 7 07 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 12. Choose measurement application software and license type, continued Description Fixed license Transportable Additional information license General purpose, continued Noise figure N9069A-1FP N9069A-1TP Adds one-button measurements for noise figure, gain, and related (requires preamplifier (requires metrics;...
- Page 8 08 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 13. Choose physical instrument configuration Description Option number Additional information Bench top configuration Standard Provides two side carrying straps, four rear feet, and four bottom feet with a tilt stand; a front panel protective cover is included Portable configuration N9020A-PRC...
- Page 9 09 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 14. Choose accessories Description Option number Additional information Mouse, USB interface Standard Enhances the usability of the Windows operating system User guide Standard – US – English localization –...
- Page 10 10 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Step 15. Choose localized Getting Started guides Description Option number Getting started guide MXA Korean N9020A-AB1 Getting started guide MXA Chinese N9020A-AB2 Getting started guide MXA German N9020A-ABD Getting started guide MXA French N9020A-ABF Getting started guide MXA Japanese...
-
Page 11: Instrument Upgrades
11 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Instrument Upgrades Fast license-key upgrades for performance options that do not require additional hardware: You can upgrade! Place an order for the upgrade with Keysight and request to receive the Options can be option upgrade entitlement certificate and a one-time software upgrade added after your... - Page 12 12 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Description Upgrade number Requirements Additional information (MXA must already include the following) Increase analysis bandwidth from N9020AK-HLB Includes hardware and license key; not compatible with Option 40 MHz to 85 MHz Serial prefix <...
- Page 13 13 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Description Upgrade number Requirements Additional information (MXA must already include the following) Upgrade operating system to Windows Embedded Standard 7 From 32-bit processor N9094AK-W7X PC1 or PC2 Upgrade the existing 32-bit processor with Windows XP to N9094AK-PC6 a 64-bit performance processor, 8 GB RAM, with removable solid-state drive...
-
Page 14: Related Literature
14 | Keysight | MXA X-Series Signal Analyzer N9020A - Configuration Guide Description Upgrade number Requirements Additional information (MXA must already include the following) System memory upgrade (2 GB) N9020AK-MS1 None Increases system memory; does not increase capture memory and is not required for instruments with serial number prefixes equal to or greater than MY4738, SG4738, US4736 Getting started guide MXA Korean... - Page 15 DEKRA Certified ISO9001 Quality Management System www.keysight.com/go/quality Keysight Technologies, Inc. DEKRA Certified ISO 9001:2015 Quality Management System This information is subject to change without notice. © Keysight Technologies, 2014 - 2017 Published in USA, December 1, 2017 5989-4943EN www.keysight.com...
