Turn the locking screw to the Locked position (
2.

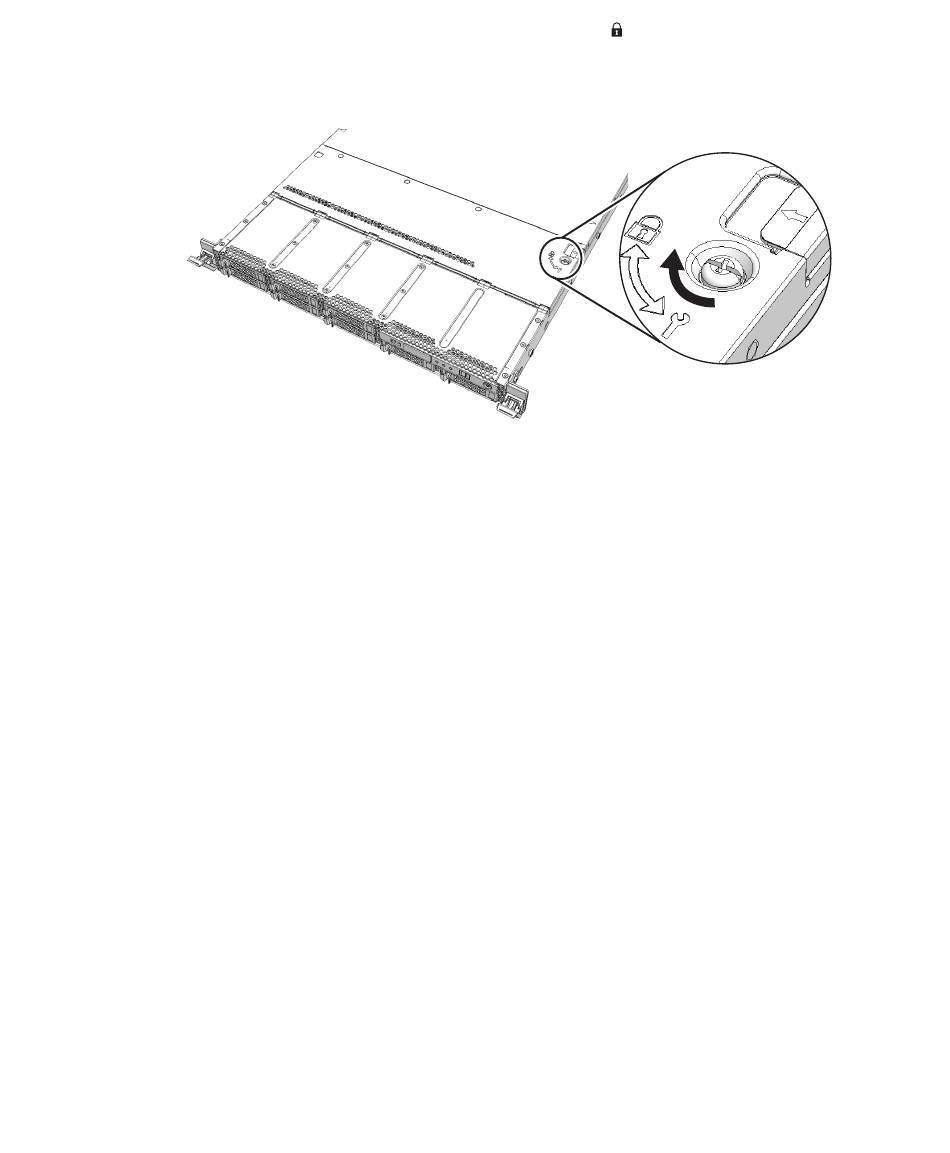

Figure 6-6 Fixing with the Locking Screw
6.1.5

Putting the SPARC M12-1 Into the Rack

If the maintenance was performed on an internal FRU in the SPARC M12-1, install
the upper cover, close the fan cover, and then put the SPARC M12-1 back into the
rack.
Carefully push the SPARC M12-1 all the way into the rack.
1.
a. Align the edge of each inner rail attached to the SPARC M12-1 with the edge
b. The rail locks with an audible click as you insert the server. Pull each green
c. Shake the SPARC M12-1 a little to confirm that the SPARC M12-1 is secured to
76 Fujitsu SPARC M12-1 Service Manual • January 2023
of a middle rail in the rack (A in
lock lever (B in Figure
SPARC M12-1 into the rack.
Pull down both of the green levers at the front end of the SPARC M12-1, and
push the SPARC M12-1 further until it goes in all the way. Then, take your
hands off the levers to engage the locks.
the rack.
Figure 6-7), and insert the SPARC M12-1.
6-7) of the inner rails to release the locks, and insert the
) to lock.
