16.5.4

Switching the SD Card

If you replace the MBU, the firmware version may be different from that used before
the replacement. To use the same firmware version as that used before the
replacement, remove the SD card from the replaced MBU, and install it in the
replacement MBU.
Loosen the screw (A in
1.
fixed to the removed MBU, then slide the protection cover towards the
memory, and lift up to remove the cover.

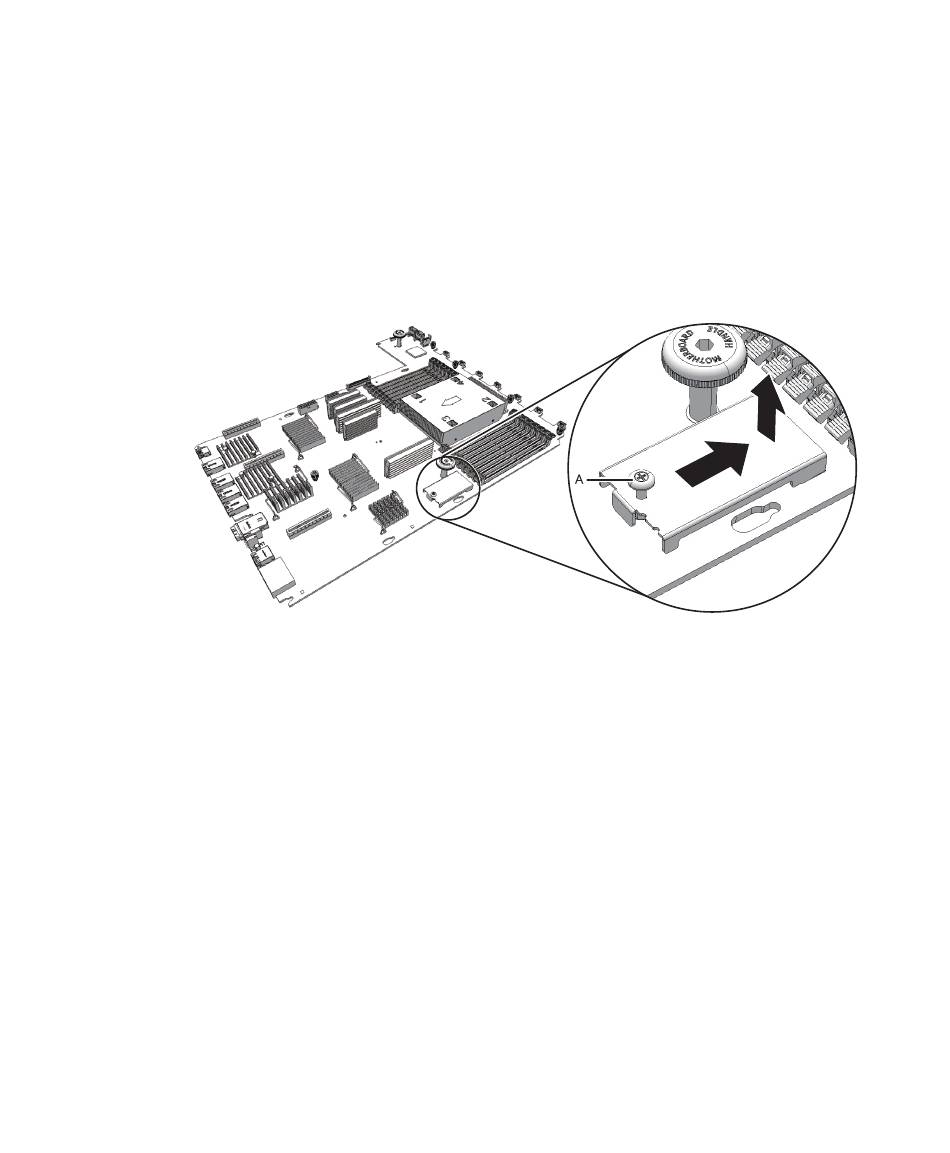

Figure 16-8 Removing the SD Card Protection Cover
192 Fujitsu SPARC M12-1 Service Manual • January 2023
Figure 16-8) securing the SD card protection cover
