Installing The Mbu And Memory; Installing The Mbu - Oracle Fujitsu SPARC M12-1 Service Manual

16.6

Installing the MBU and Memory

This section describes the procedure for installing the MBU.
16.6.1

Installing the MBU

Caution - Be careful not to damage the connectors when installing the MBU in the
SPARC M12-1.
1. Hold the handles on the MBU, and install the MBU in the SPARC M12-1.
Install it from the front of the SPARC M12-1, aligning it with the mounting
location.
2. Confirm that the 10 fixing pins are inserted into the MBU, and then slide the
MBU toward the rear of the SPARC M12-1.

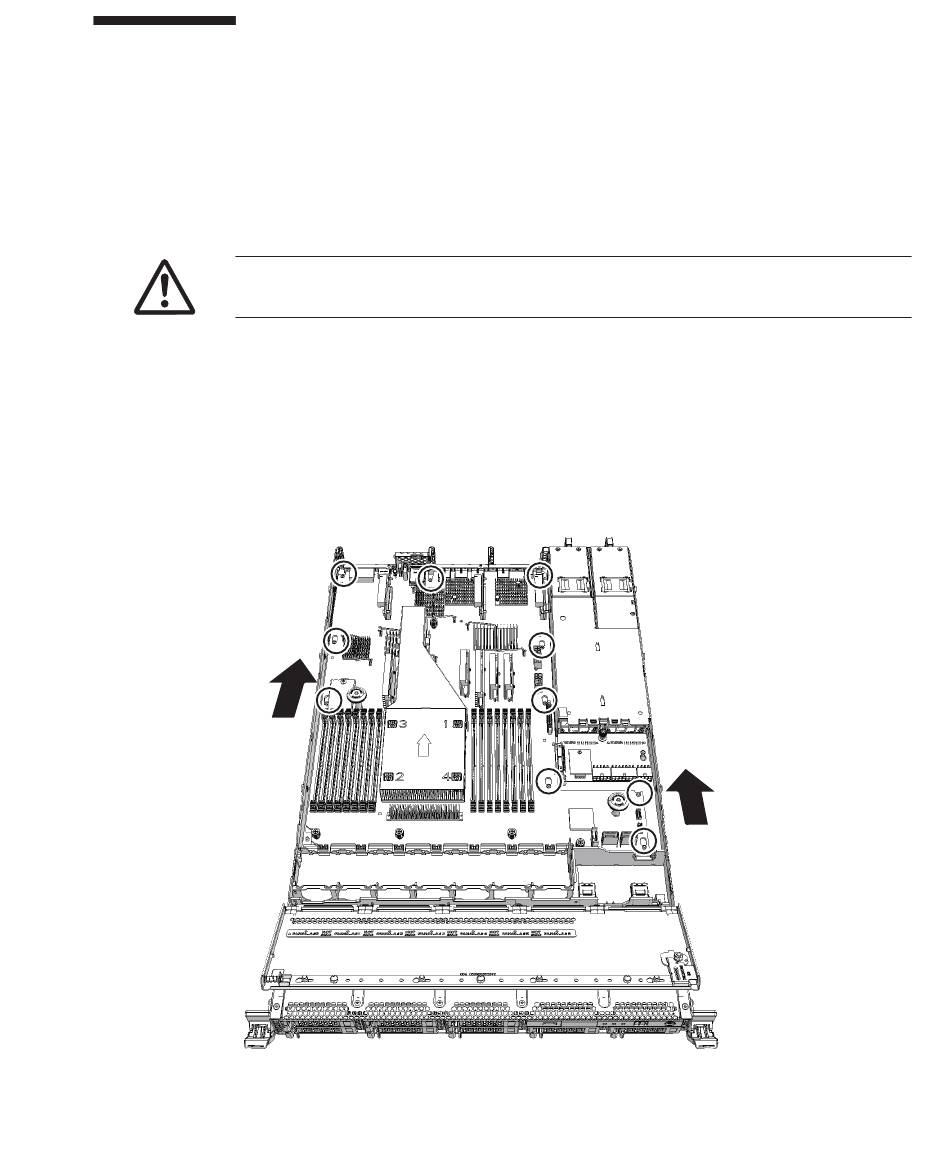

Figure 16-12 Fixing Pins of the MBU
Chapter 16 Maintaining the Motherboard Unit/Memory 195
