Installing a PCIe Card

Insert the PCIe card into the connector of the PCIe riser.
1.
In PCIe card reduction, you do not have to perform this step. Install the PCIe
card filler in the PCIe riser.
Note - Confirm that the tab (A in
is inserted in the notch (B in
Note - The PCIe card filler is easily removed. Be careful not to drop it.

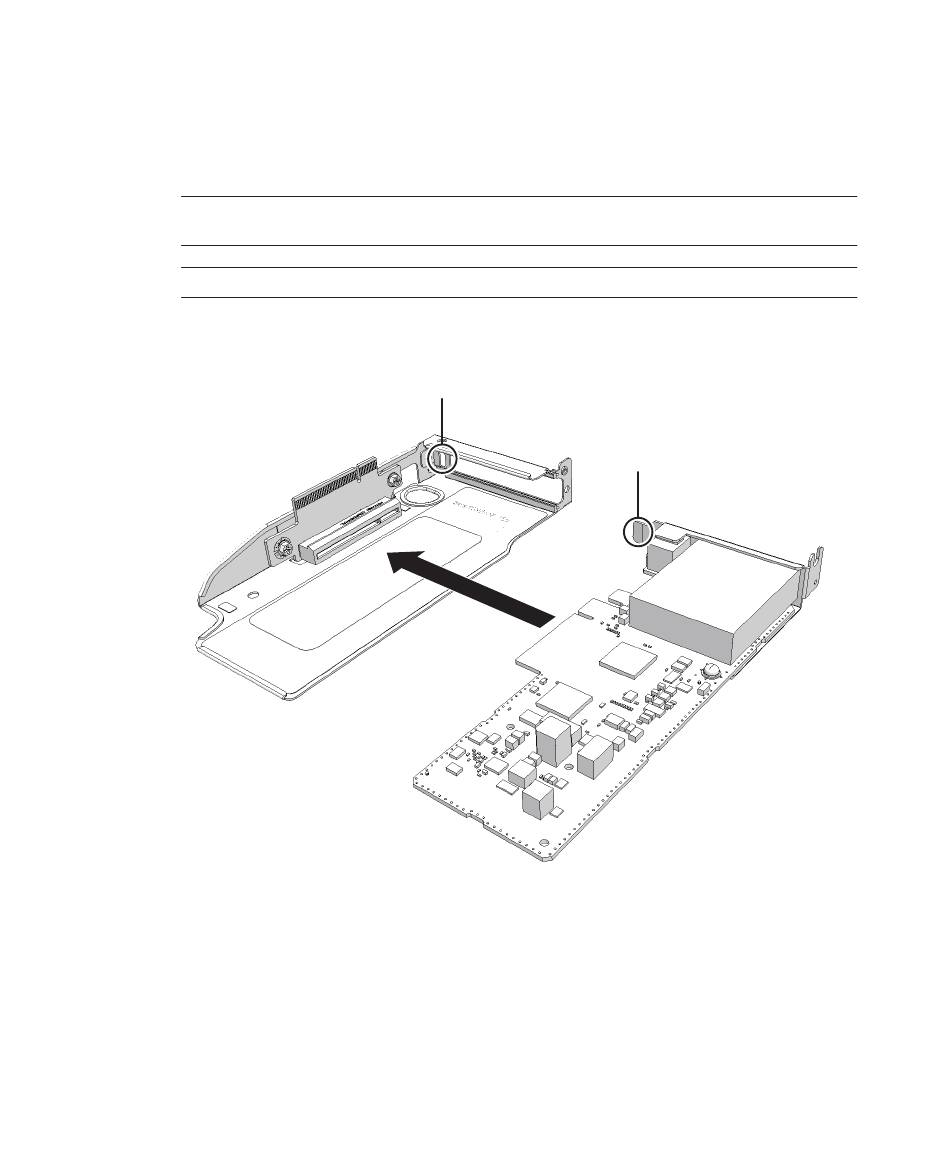

Figure 8-4 Installing a PCIe Card
8.4.2

Installing a PCIe Riser

Hold the PCIe riser at two points and install it on the MBU.
1.
128 Fujitsu SPARC M12-1 Service Manual • January 2023
Figure 8-4) of the PCIe card or the tab of the PCIe card filler
Figure 8-4) of the PCIe riser.
