Remove the PSUBP cover by sliding it to the front while pressing the latch of
2.
the PSUBP cover.

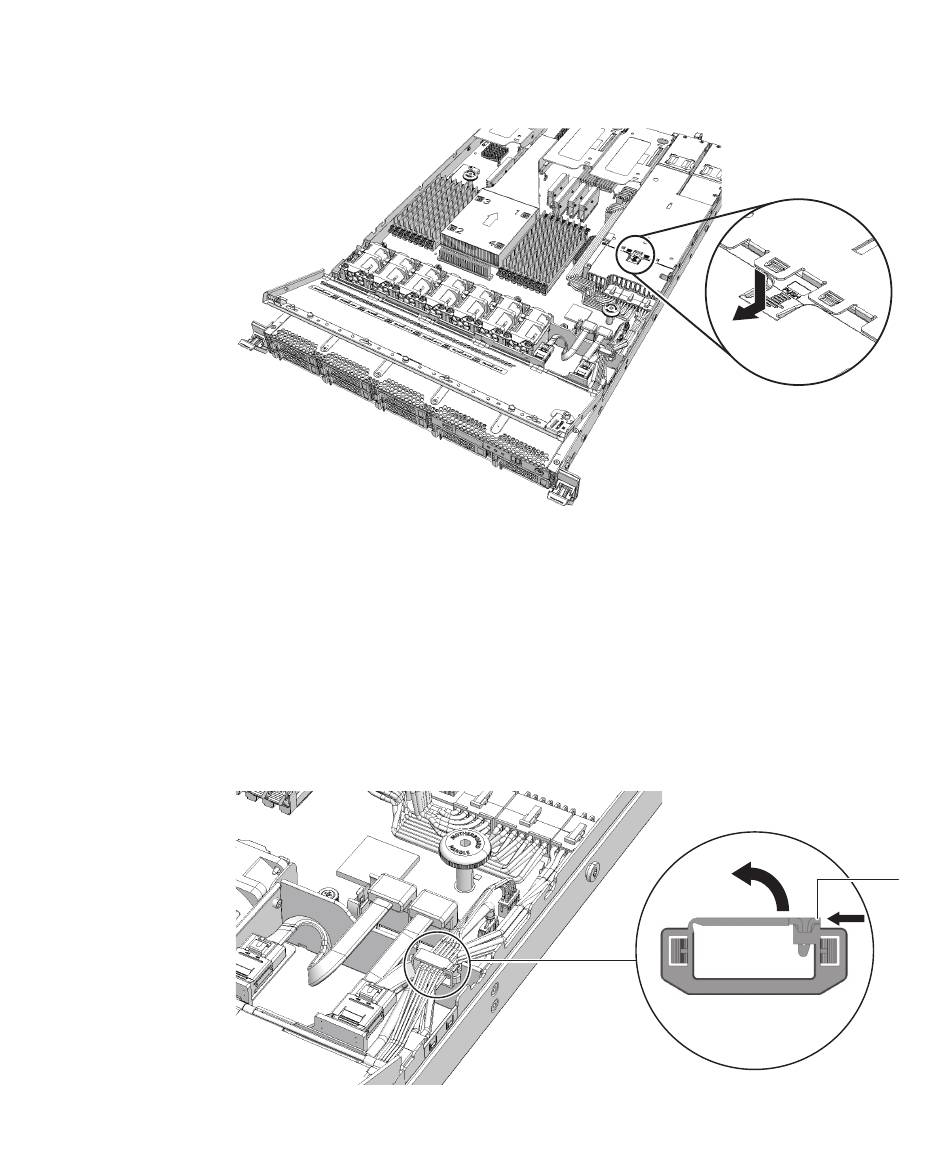

Figure 5-9 Removing the PSUBP Cover
5.8.7

Releasing the Cable Guide Lock

To perform maintenance with the connected cables removed from the motherboard
unit, release the cable guide lock to remove the cables.
Release the cable guide lock by pressing the lock toward the inside (A in
1.
Figure
Figure 5-10 Releasing the Cable Guide Lock
5-10).
Chapter 5 Preparations Required for Maintenance
A
