Pull the SPARC M12-1 out of the rack.
2.
For details, see
3. Open the fan cover.
For details, see
4. Remove the upper cover.
For details, see
Remove the air duct and PSUBP cover.
5.
For details, see
13.3.2

Removing the Cable Kit

1. Three cables connect the PSUBP to the MBU. Remove these cables from the
MBU connectors.
Note - Record the positions of the cables before removing them, to ensure that they are
reinstalled correctly.

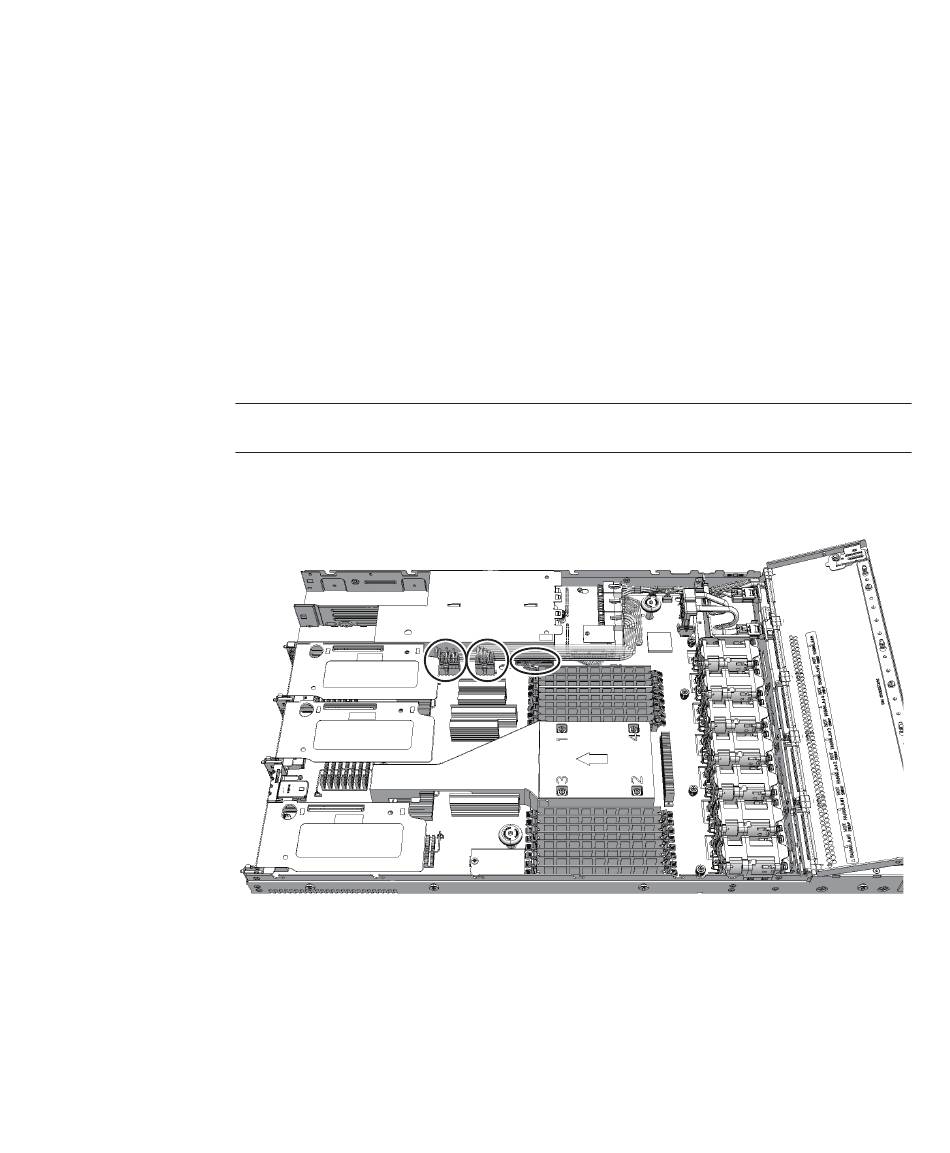

Figure 13-2 MBU Cables
2. Release the cable guide lock.
For details, see
If the cable guide does not have a lock, proceed to step 3.
"5.8.3 Pulling the SPARC M12-1 Out From the
"5.8.4 Opening the Fan
"5.8.5 Removing the Upper
"5.8.6 Removing the Air Duct and PSUBP
"5.8.7 Releasing the Cable Guide
Cover."
Cover."
Cover."
Lock."
Chapter 13 Maintaining the Cable Kit
Rack."
165
