Control Function Of The Operation Panel - Oracle Fujitsu SPARC M12-1 Service Manual

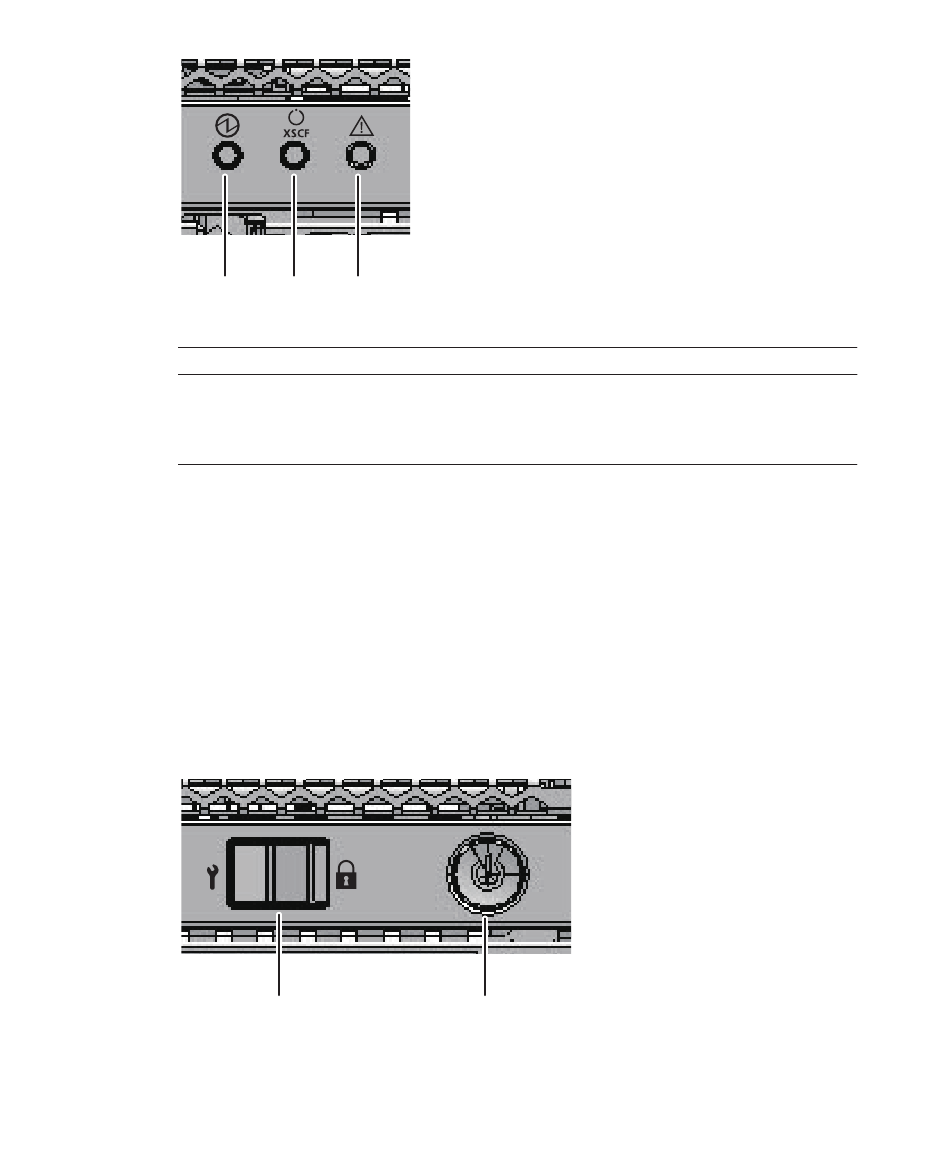

Figure 2-8 Operation Panel LEDs
(1)
Location No.
1
2
3
2.3.2

Control Function of the Operation Panel

The operation panel has the following switches to implement its control function:
Mode switch (slide switch)
■
Specifies the mode for either operation or maintenance.
Power switch
■
Controls start/stop of the system.
Figure 2-9 Operation Panel Switches
16 Fujitsu SPARC M12-1 Service Manual • January 2023
(2) (3)
LED
POWER LED
XSCF STANDBY LED
CHECK LED
(1) (2)
