VLT® AutomationDrive EZ FC 321
Programming Guide
12 13 18 19 27 29
Start Stop inverse
Speed
Start (18)
Start (27)

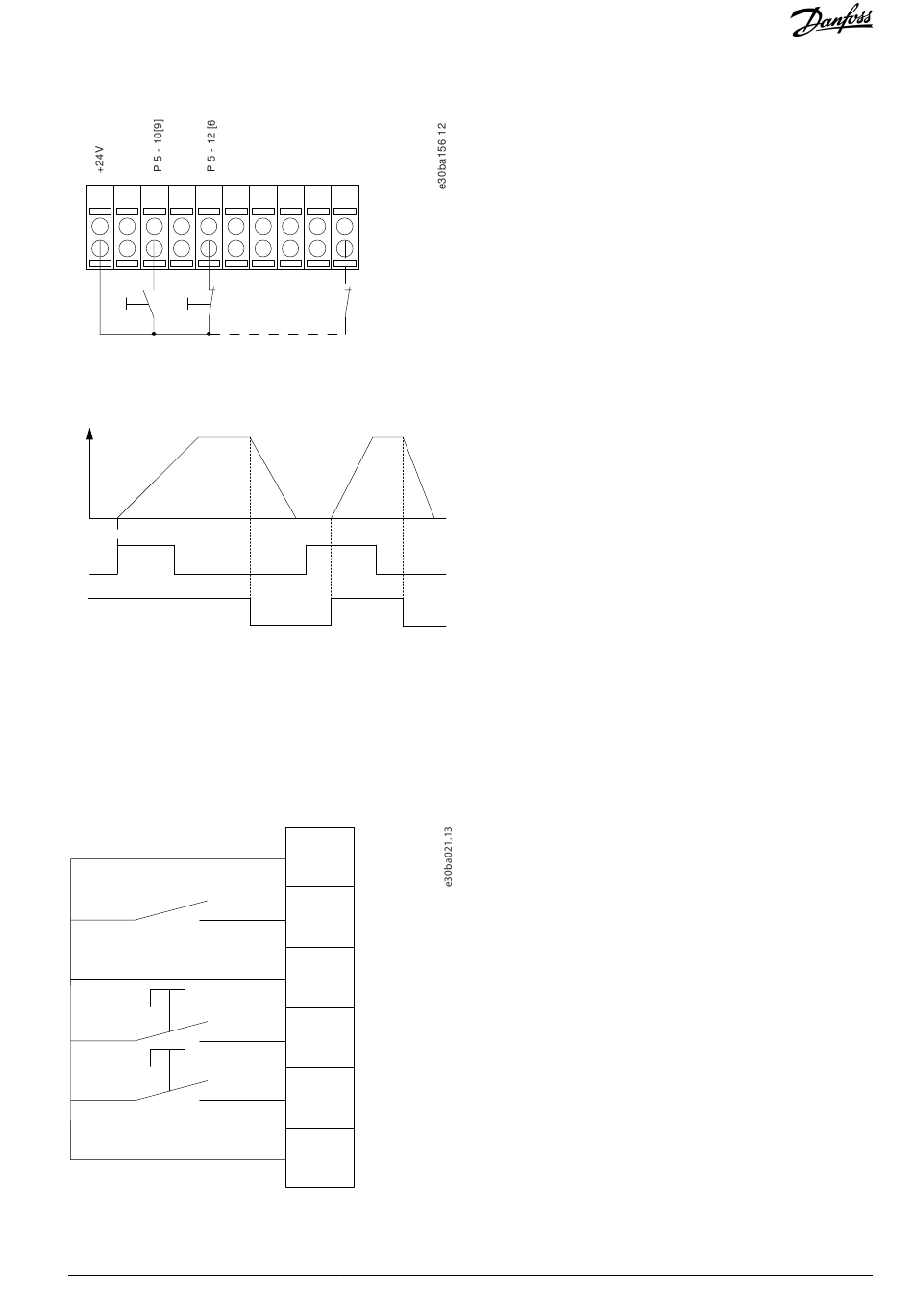

Illustration 6: Pulse Start/Stop

1.4.3 Speed Up/Speed Down

Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [8] Start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [19] Freeze reference.
Terminal 37 = Safe Torque Off.
Terminal 29 = Parameter 5-13 Terminal 29 Digital Input [21] Speed up.
Terminal 32 = Parameter 5-14 Terminal 32 Digital Input [22] Speed down.
Illustration 7: Speed Up/Speed Down
Danfoss A/S © 2021.08
32 33 20 37
Safe Stop
12 +24V
18 Par. 5-10
27 Par. 5-12
29 Par. 5-13
32 Par. 5-14
37
Introduction
AU373327181955en-000101 / 130R1208 | 13
