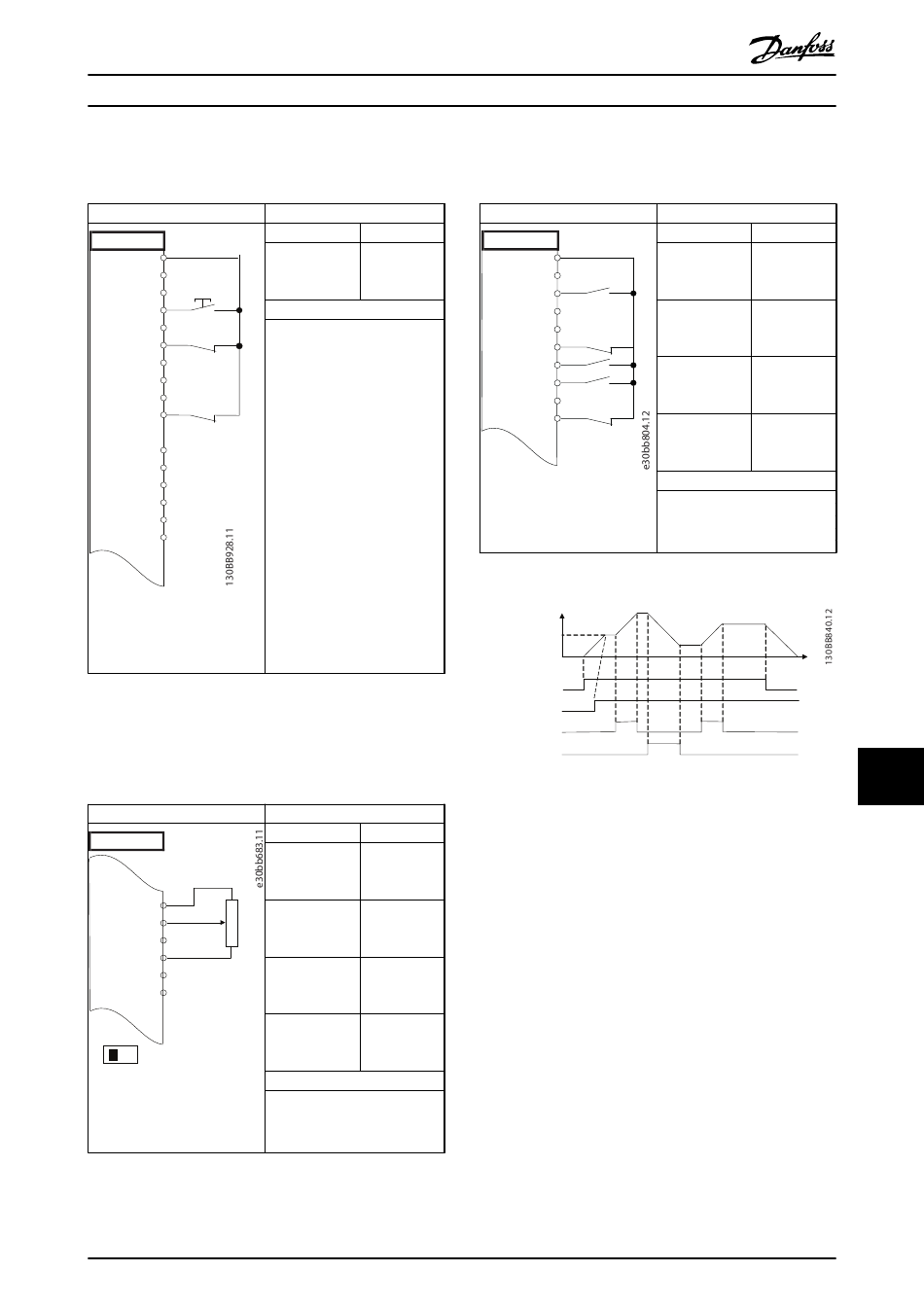

Application Examples
12.5 Wiring Configuration for an External
Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 12.8 Wiring Configuration for an External Alarm Reset
12.6 Wiring Configuration for Speed
Reference Using a Manual
Potentiometer
FC
+10 V 50
A IN
53 ≈ 5kΩ
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
Table 12.9 Wiring Configuration for Speed Reference
(Using a Manual Potentiometer)
MG38C202
Design Guide
Parameters
Function Setting
Parameter 5-11 T [1] Reset
erminal 19
Digital Input
*=Default value
Notes/comments:
Parameters
Function Setting
Parameter 6-10 T 0.07 V*
erminal 53 Low
Voltage
Parameter 6-11 T 10 V*
erminal 53 High
Voltage
Parameter 6-14 T 0 RPM
erminal 53 Low
Ref./Feedb. Value
Parameter 6-15 T 1500 RPM
erminal 53 High
Ref./Feedb. Value
*=Default value
Notes/comments:
Danfoss A/S © 01/2018 All rights reserved.
12.7 Wiring Configuration for Speed Up/
Speed Down
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
Table 12.10 Wiring Configuration for Speed Up/Speed Down
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)
Illustration 12.4 Speed Up/Speed Down
Parameters
Function Setting
Parameter 5-10 T [8] Start*
erminal 18
Digital Input
Parameter 5-12 T [19] Freeze
erminal 27 Reference
Digital Input
Parameter 5-13 T [21] Speed Up
erminal 29
Digital Input
Parameter 5-14 T [22] Speed
erminal 32 Down
Digital Input
*=Default value
Notes/comments:
