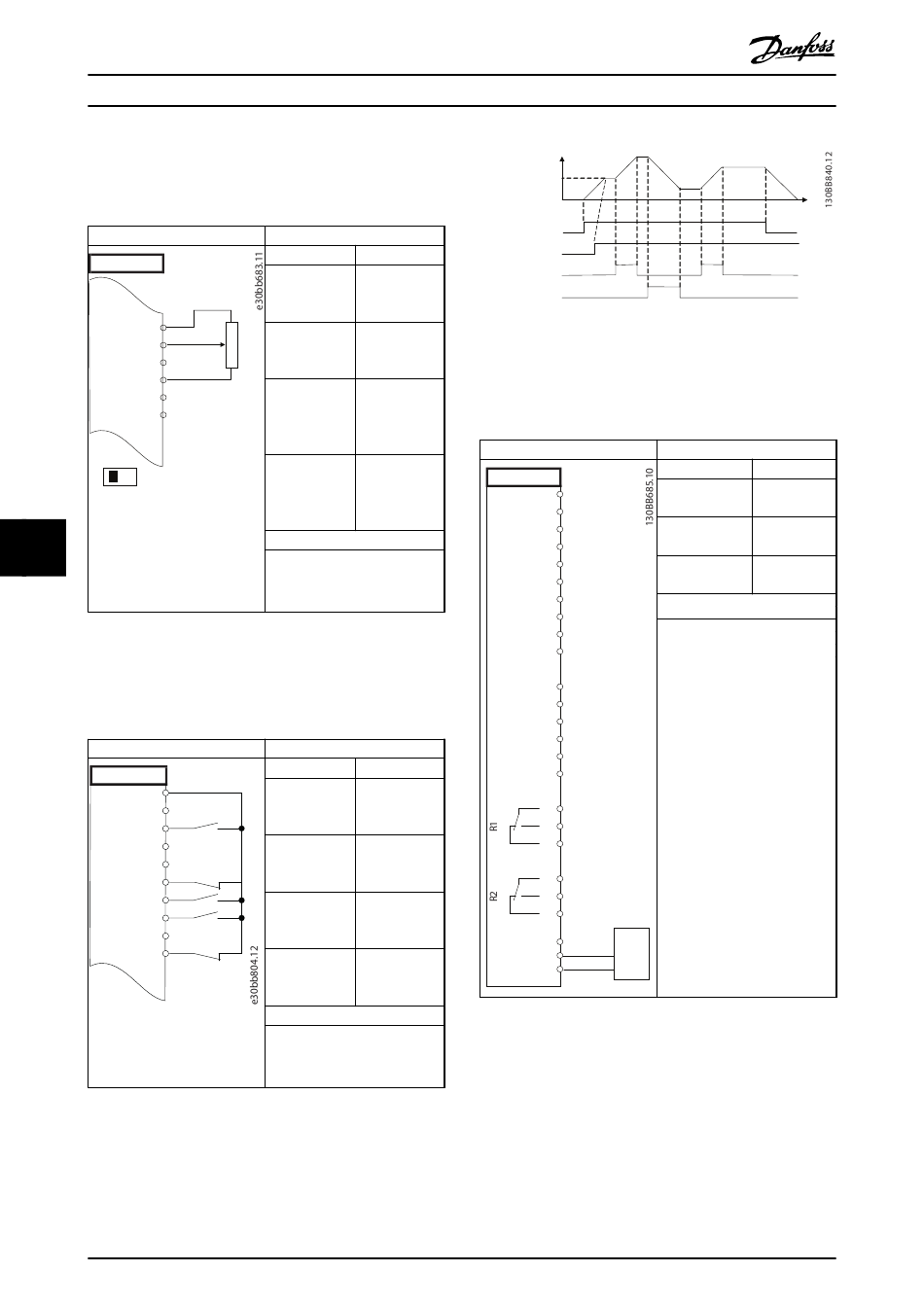

8.5 Wiring Configuration for Speed
Reference Using a Manual
Potentiometer
FC
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
U - I
A53
8 8
Table 8.9 Wiring Configuration for Speed Reference
(Using a Manual Potentiometer)
8.6 Wiring Configuration for Speed Up/
Speed Down
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
Table 8.10 Wiring Configuration for Speed Up/Speed Down
76
VLT® AQUA Drive FC 202
Parameters
Function Setting
Parameter 6-10
0.07 V*
Terminal 53
Low Voltage
Parameter 6-11 10 V*
≈ 5kΩ
Terminal 53
High Voltage
Parameter 6-14 0 RPM
Terminal 53
Low Ref./Feedb.
Value
Parameter 6-15 1500 RPM
Terminal 53
High Ref./Feedb.
Value
*=Default value
Notes/comments:
Parameters
Function Setting
Parameter 5-10 [8] Start*
Terminal 18
Digital Input
Parameter 5-12 [19] Freeze
Terminal 27 Reference
Digital Input
Parameter 5-13 [21] Speed Up
Terminal 29
Digital Input
Parameter 5-14 [22] Speed
Terminal 32 Down
Digital Input
*=Default value
Notes/comments:
Danfoss A/S © 09/2018 All rights reserved.
Speed
Reference
Start (18)
Freeze ref (27)
Speed up (29)
Speed down (32)
Illustration 8.3 Speed Up/Speed Down
8.7 Wiring Configurations for RS485
Network Connection
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
01
02
03
04
05
RS-485
06
61
+
68
69
-
Table 8.11 Wiring Configuration for RS485 Network Connection
Parameters
Function Setting
Parameter 8-30 FC*
Protocol
Parameter 8-31 1*
Address
Parameter 8-32 9600*
Baud Rate
*=Default value
Notes/comments:
Select protocol, address, and
baud rate in the parameters.
MG21A502
