1.3.3 Pulse Start/Stop
Terminal 18 = 5-10 Terminal 18 Digital Input [9] Latched
start
Terminal 27= 5-12 Terminal 27 Digital Input [6] Stop inverse
12
Speed
Start (18)
Start (27)

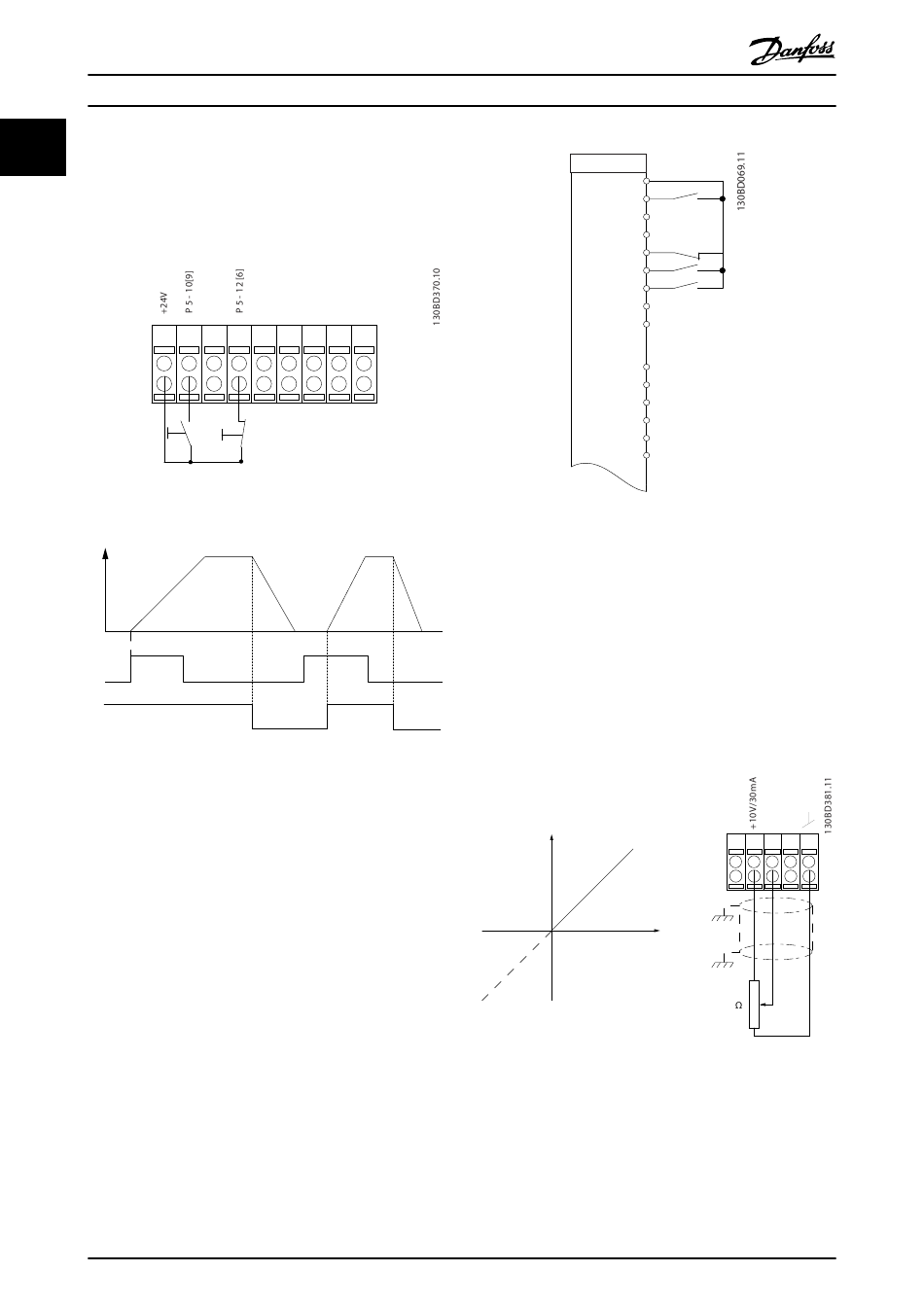

Illustration 1.8 Pulse Start/stop
1.3.4 Speed Up/Down
Terminals 29/32 = Speed up/down
Terminal 18 = 5-10 Terminal 18 Digital Input [9]
Start (default)
Terminal 27 = 5-12 Terminal 27 Digital Input [19]
Freeze reference
Terminal 29 = 5-13 Terminal 29 Digital Input [21]
Speed up
Terminal 32 = 5-14 Terminal 32 Digital Input [22]
Speed down
12
Programming Guide
18
19
27
29
31
32
33
Start
Stop inverse
Danfoss A/S © Rev. 2014-03-31 All rights reserved.
20
Illustration 1.9 Speed Up/down
1.3.5 Potentiometer Reference
Voltage reference via a potentiometer
Illustration 1.10 Potentiometer Reference
FC
+24 V
12
D IN
18
D IN
19
COM
20
D IN
27
D IN
29
D IN
32
D IN
33
D IN
31
+10 V
50
A IN
53
A IN
54
COM
55
A OUT
42
A OUT
45
Reference source 1 = [1] Analog input 53 (default)
Terminal 53, low voltage = 0 V
Terminal 53, high voltage = 10 V
Terminal 53, low ref./feedback = 0
Terminal 53, high ref./feedback = 1500
6-19 Terminal 53 mode=[1] Voltage
Speed
P 6-15
Ref. voltage
P 6-11 10V
42
50
53 54
55
1 k
MG06C402
