4.1.4 0-3* LCP Custom Readout

It is possible to customize the display elements for various purposes:
•
Custom readout. Value proportional to speed (linear, squared, or cubed depending on the unit selected in parameter 0-30 Cus-
tom Readout Unit.
• Display text. Text string stored in a parameter.
Custom reaout
The calculated value to be shown is based on the settings in:
•
Parameter 0-30 Custom Readout Unit.
•
Parameter 0-31 Custom Readout Min Value (linear only).
•
Parameter 0-32 Custom Readout Max Value.
•
Parameter 4-13 Motor Speed High Limit [RPM].
•
Parameter 4-14 Motor Speed High Limit [Hz].
• Actual speed.
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
Linear
units only
P 0-31
0

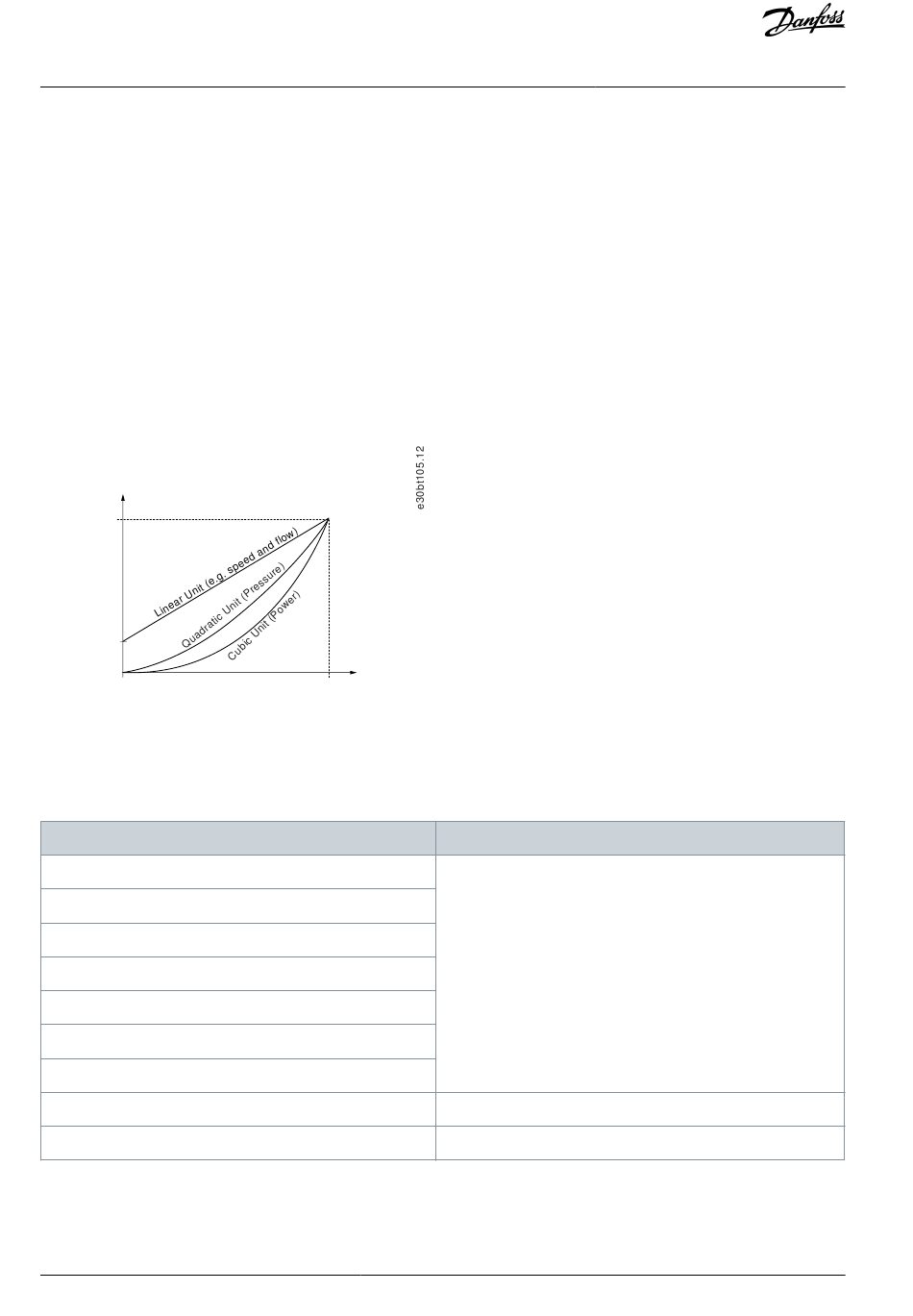

Illustration 26: Custom Readout
The relation depends on the type of unit selected in parameter 0-30 Custom Readout Unit.
Table 22: Speed Relations for Different Unit Types
Unit type
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure
Power
