Example
Use multi set-up to shift from setup 1 to setup 2 while the motor is running. Program in setup 1 first, then ensure that setup 1 and
setup 2 are synchronized (or linked). Synchronization can be performed in 2 ways:
• Select the following options:
- [2] Set-up 2 in parameter 0-11 Edit Set-up
- Set parameter 0-12 This Set-up Linked to to [1] Set-up 1.

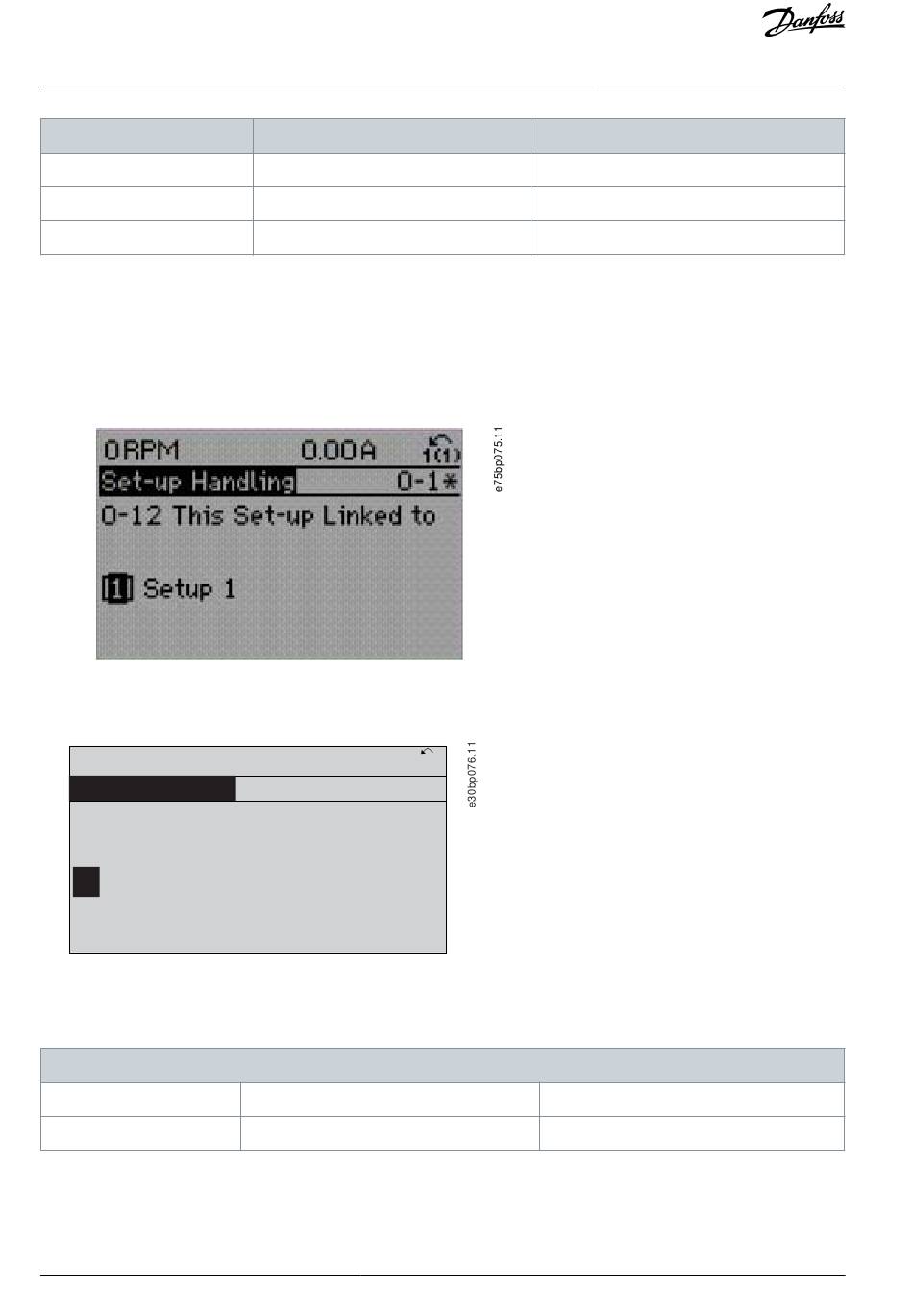

Illustration 24: Set-up 1
• While still in setup 1, copy setup 1 to setup 2. Then set parameter 0-12 This Set-up Linked to to [2] Set-up 2.
0 RPM
Set-up Handling
0-12 This Set-up Linked to
[2] Setup 2
Illustration 25: Setup 2
Parameter 0-13 Readout: Linked Set-ups
Table 16: Parameter 0-13 Readout: Linked Set-ups
0-13 Readout: Linked Set-ups
Default value: 0
Conversion index: 0
View a list of all the setups linked by parameter 0-12 This Set-up Linked to. The parameter has 1 index for each parameter setup. The
value for each index shows which setups are linked to that parameter setup.
