VLT® AutomationDrive EZ FC 321
Programming Guide
Selected
event
Relay
output
On delay
P 5-41

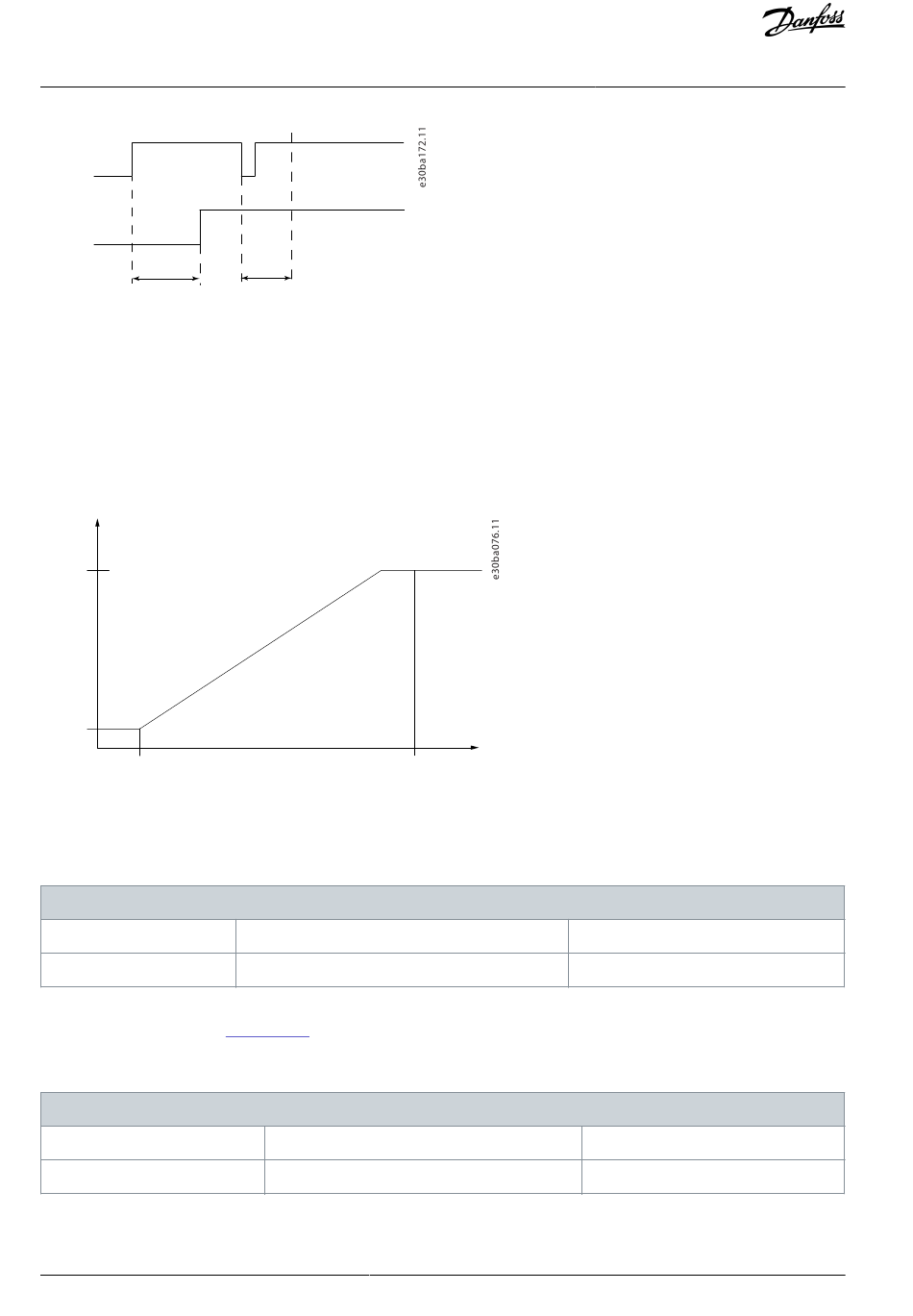

Illustration 56: Off Delay, Relay
If the selected event condition changes before the on delay or off delay timer expires, the relay output is unaffected.

4.6.5 5-5* Pulse Input

The pulse input parameters are used to define an appropriate window for the impulse reference area by configuring the scaling and
filter settings for the pulse inputs. Input terminals 29 or 33 act as frequency reference inputs. Set terminal 29 (parameter 5-13 Termi-
nal 29 Digital Input) or terminal 33 (parameter 5-15 Terminal 33 Digital Input) to [32] Pulse input. If terminal 29 is used as an input, set
parameter 5-01 Terminal 27 Mode to [0] Input.
Ref.
(RPM)
High
ref.
value
P 5-53/
p 5-58
Low
ref.
value
P 5-52/
p 5-57
Low freq.
P 5-50/
P 5-55
Illustration 57: Pulse Input
Parameter 5-50 Term. 29 Low Frequency
Table 317: Parameter 5-50 Term. 29 Low Frequency
5-50 Term. 29 Low Frequency
Default value: 100 Hz
Conversion index: 0
Enter the low frequency limit corresponding to the low motor shaft speed (that is low reference value) in parameter 5-52 Term. 29
Low Ref./Feedb. Value. Refer to
Parameter 5-51 Term. 29 High Frequency
Table 318: Parameter 5-51 Term. 29 High Frequency
5-51 Term. 29 High Frequency
Default value: Size related
Conversion index: 0
Enter the high frequency limit corresponding to the high motor shaft speed (that is high reference value) in parameter 5-53 Term. 29
High Ref./Feedb. Value.
170 | Danfoss A/S © 2021.08
Off delay
P 5-42
High freq.
P 5-51/
P 5-56
Parameter type: Range, 0 – 110000 Hz
Data type: Uint32
Illustration 57.
Parameter type: Range, 0 – 110000 Hz
Data type: Uint32
Input
(Hz)
Setup: All setups
Change during operation: True
Setup: All setups
Change during operation: True
Parameter Descriptions
AU373327181955en-000101 / 130R1208
