VLT® AutomationDrive EZ FC 321
Programming Guide
t [s]
2000
1000
600
500
400
300
200
100
60
50
40
30
20
10
1.0
1.2
1.4

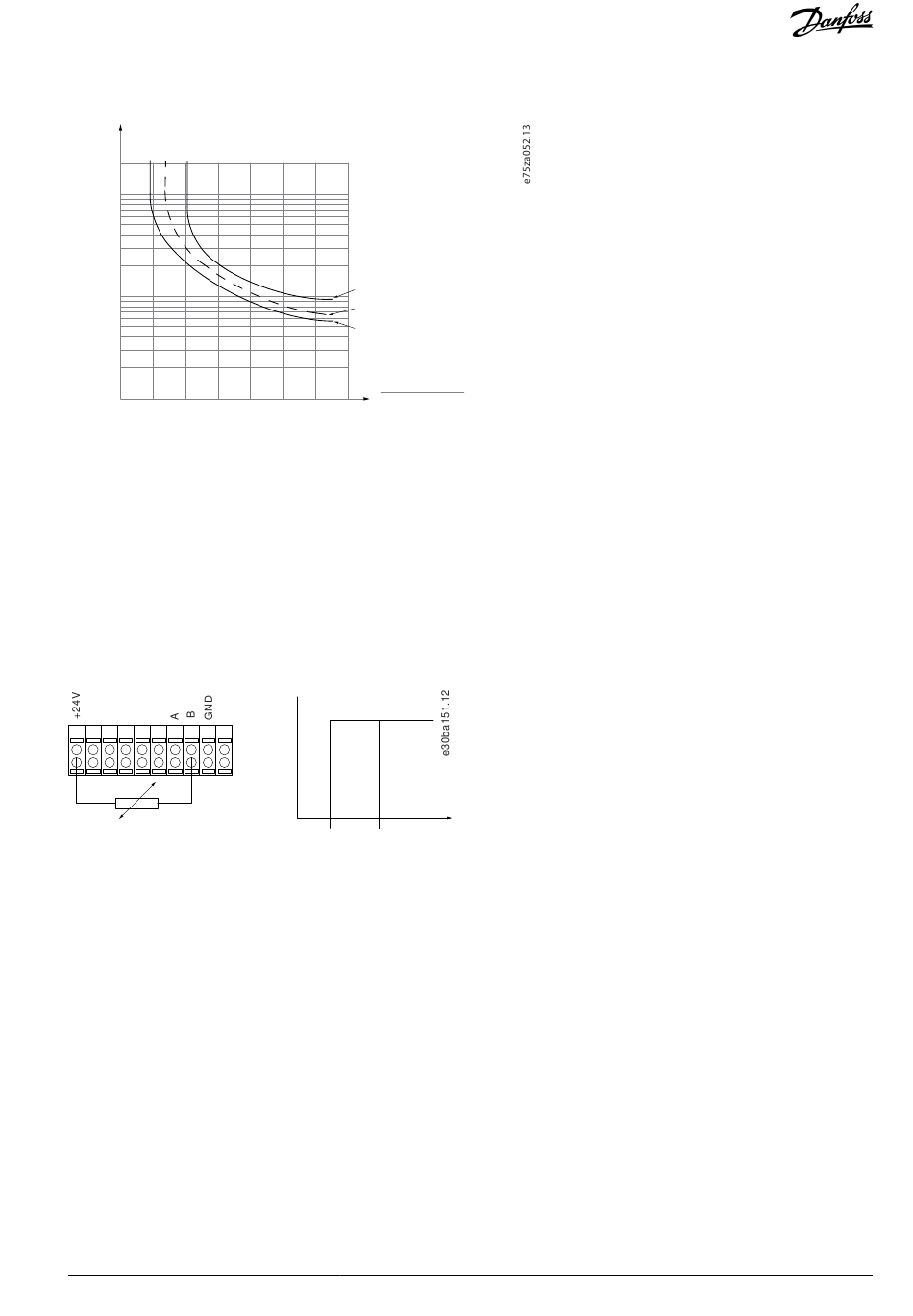

Illustration 38: ETR Profile

4.2.10.4 Klixon

The Klixon type thermal circuit breaker uses a KLIXON® metal dish. At a predetermined overload, the heat caused by the current
through the disc causes a trip.
Using a digital input and 24 V as supply:
Example: The drive trips when the motor temperature is too high.
Parameter setup:
Set parameter 1-90 Motor Thermal Protection to [2] Thermistor Trip.
Set parameter 1-93 Thermistor Source to [6] Digital Input.
12 13 18
19
27
29
32
33 20
37
PTC / Thermistor
Illustration 39: Thermistor Connection

4.2.11 PM Settings

If [2] Std. PM, non-salient is selected in parameter 1-10 Motor Construction, enter the motor parameters manually in the following
order:
Parameter 1-24 Motor Current.
Parameter 1-26 Motor Cont. Rated Torque.
Parameter 1-25 Motor Nominal Speed.
Parameter 1-39 Motor Poles.
Parameter 1-30 Stator Resistance (Rs).
Parameter 1-37 d-axis Inductance (Ld).
Parameter 1-40 Back EMF at 1000 RPM.
The following parameters have been added for PM motors.
Parameter 1-41 Motor Angle Offset.
Parameter 1-07 Motor Angle Offset Adjust.
Parameter 1-14 Damping Gain.
Danfoss A/S © 2021.08
f
= 2 x f
OUT
f
= 1 x f
OUT
f
= 0.2 x f
OUT
I
M
I
(parameter 1-24)
1.6
1.8
2.0
M,N
OFF
ON
<6.6 k # >10.8 k #
(parameter 1-23)
M,N
M,N
M,N
R
Parameter Descriptions
AU373327181955en-000101 / 130R1208 | 95
