VLT® AutomationDrive EZ FC 321
Programming Guide
Output value
High output
value
P 5-60(term27)
P 5-63(term29)

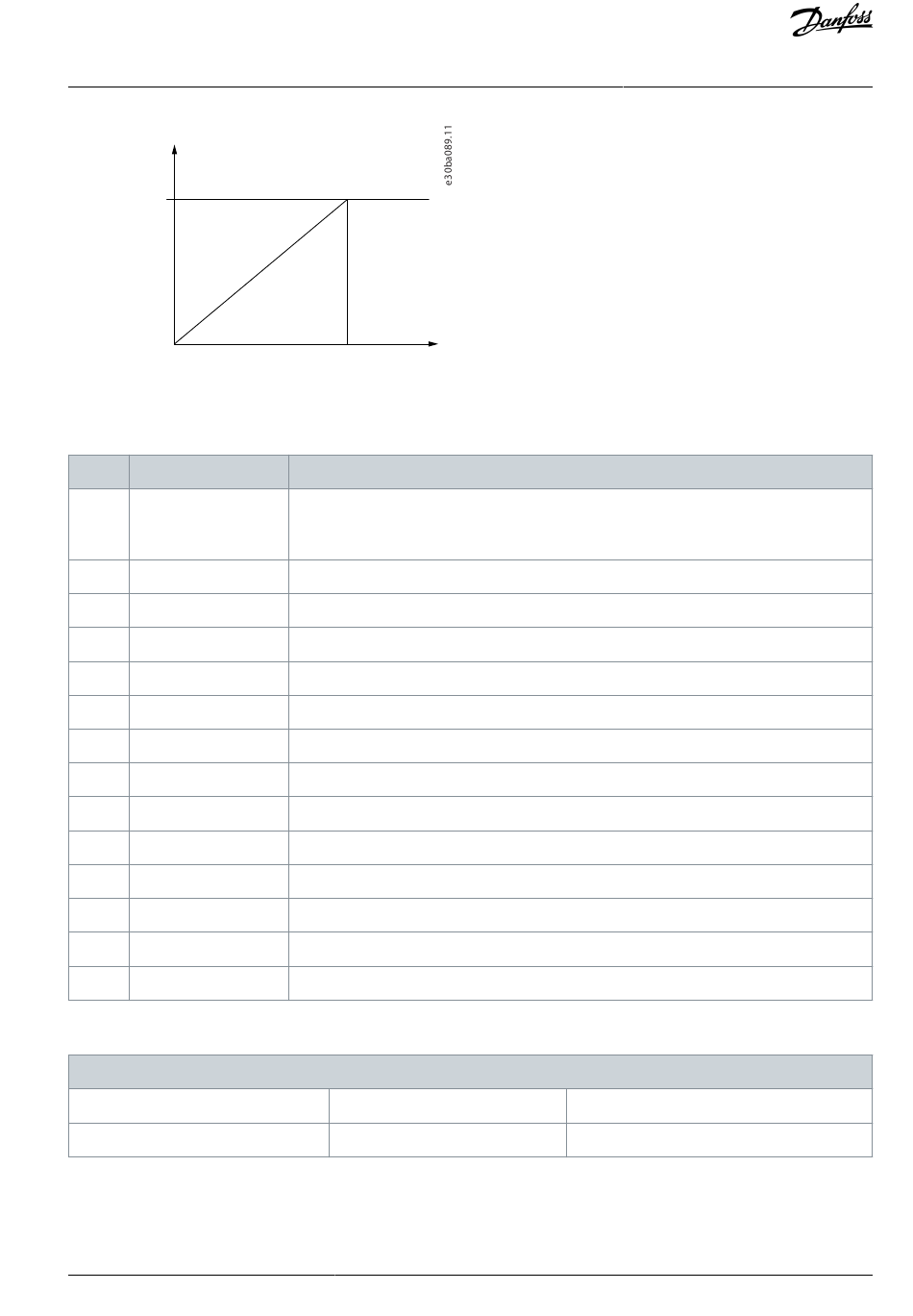

Illustration 58: Configuration of Pulse Outputs
Table 327: Options for Readout Output Variables
Option Name
[0] No operation
[45] Bus control
[48] Bus control timeout
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque relative to limit
[105] Torque relative to rated
[106] Power
[107] Speed
[108] Torque
[109] Max. out freq
Parameter 5-60 Terminal 27 Pulse Output Variable
Table 328: Parameter 5-60 Terminal 27 Pulse Output Variable
5-60 Terminal 27 Pulse Output Variable
Default value: Size related
Conversion index: –
Danfoss A/S © 2021.08
High freq. Output
P 5-62(term27) (Hz)
P 5-65(term29)
Description
Parameters for configuring the scaling and output functions of pulse outputs. The pulse out-
puts are designated to terminals 27 or 29. Select terminal 27 output in parameter 5-01 Termi-
nal 27 Mode and terminal 29 output in parameter 5-02 Terminal 29 Mode.
Parameter type: Option
Data type: Uint8
Parameter Descriptions
Setup: All setups
Change during operation: True
