VLT® AutomationDrive EZ FC 321
Programming Guide
Current
(mA)
20
0/4
0% Analog Analog
output output
min scale max scale
par. 6-51 par. 6-52

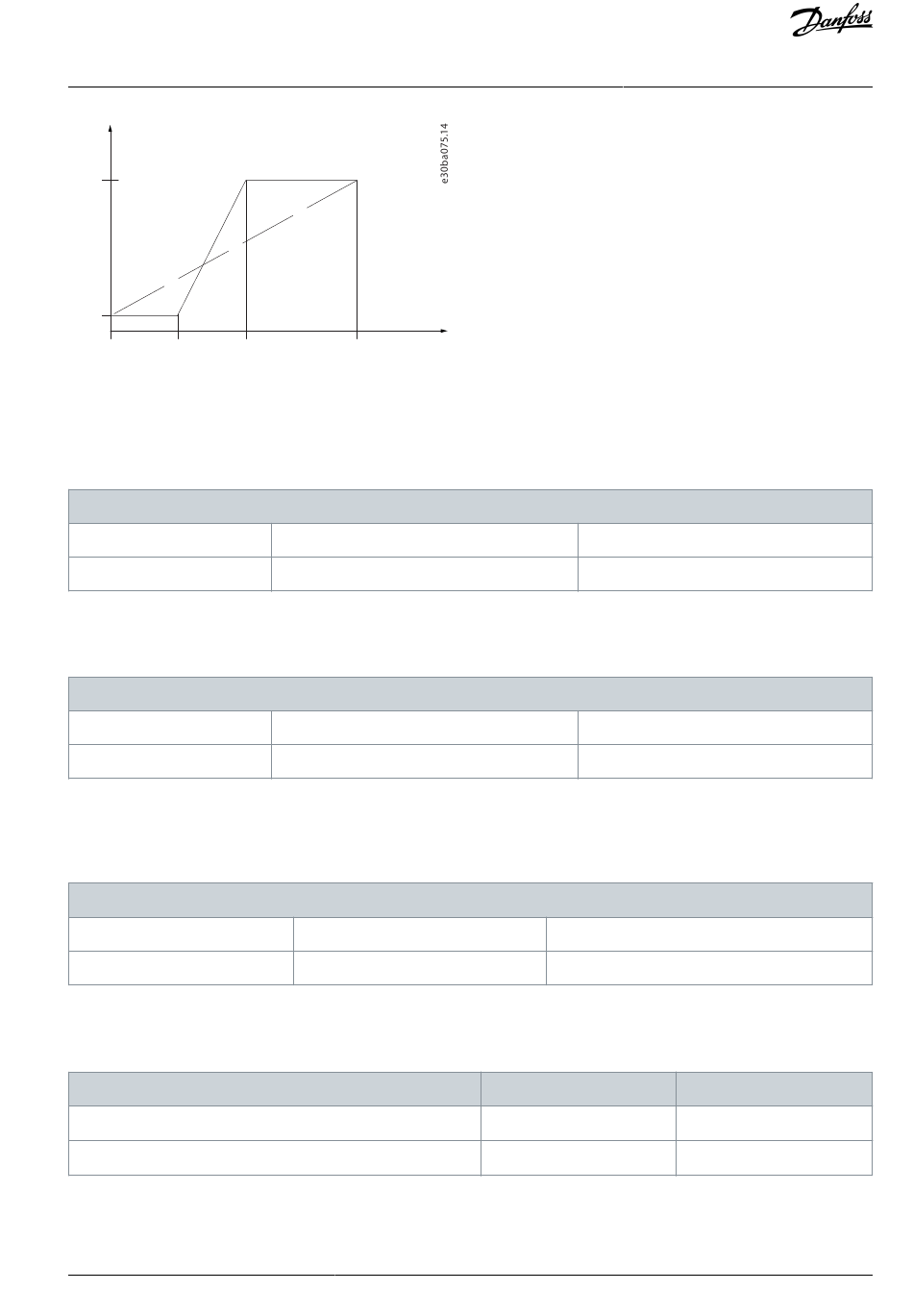

Illustration 62: Output Maximum Scale
Parameter 6-53 Term 42 Output Bus Ctrl
Table 362: Parameter 6-53 Term 42 Output Bus Ctrl
6-53 Term 42 Output Bus Ctrl
Default value: 0%
Conversion index: -2
Holds the level of output 42 if controlled by bus.
Parameter 6-54 Term 42 Output Timeout Preset
Table 363: Parameter 6-54 Term 42 Output Timeout Preset
6-54 Term 42 Output Timeout Preset
Default value: 0%
Conversion index: -2
Holds the preset level of output 42. If a timeout function is selected in parameter 6-50 Terminal 42 Output, the output is preset to this
level if a fieldbus timeout occurs.
Parameter 6-55 Analog Output Filter
Table 364: Parameter 6-55 Analog Output Filter
6-55 Analog Output Filter
Default value: [0] Off
Conversion index: –
The following readout parameters from selection in parameter 6-50 Terminal 42 Output have a filter selected when parameter 6-55
Analog Output Filter is on:
Table 365: Readout Parameters
Selection
Motor current (I )
max
Torque limit (0–T )
lim
Danfoss A/S © 2021.08
Variable for
100%
output
example:
Speed (RPM)
Parameter type: Range, 0 - 100%
Data type: N2
Parameter type: Range, 0 - 100%
Data type: Uint16
Parameter type: Option
Data type: Uint8
Setup: All setups
Change during operation: True
Setup: 1 setup
Change during operation: True
Setup: 1 setup
Change during operation: True
0–20 mA
[103]
[104]
AU373327181955en-000101 / 130R1208 | 187
Parameter Descriptions
4–20 mA
[133]
[134]
