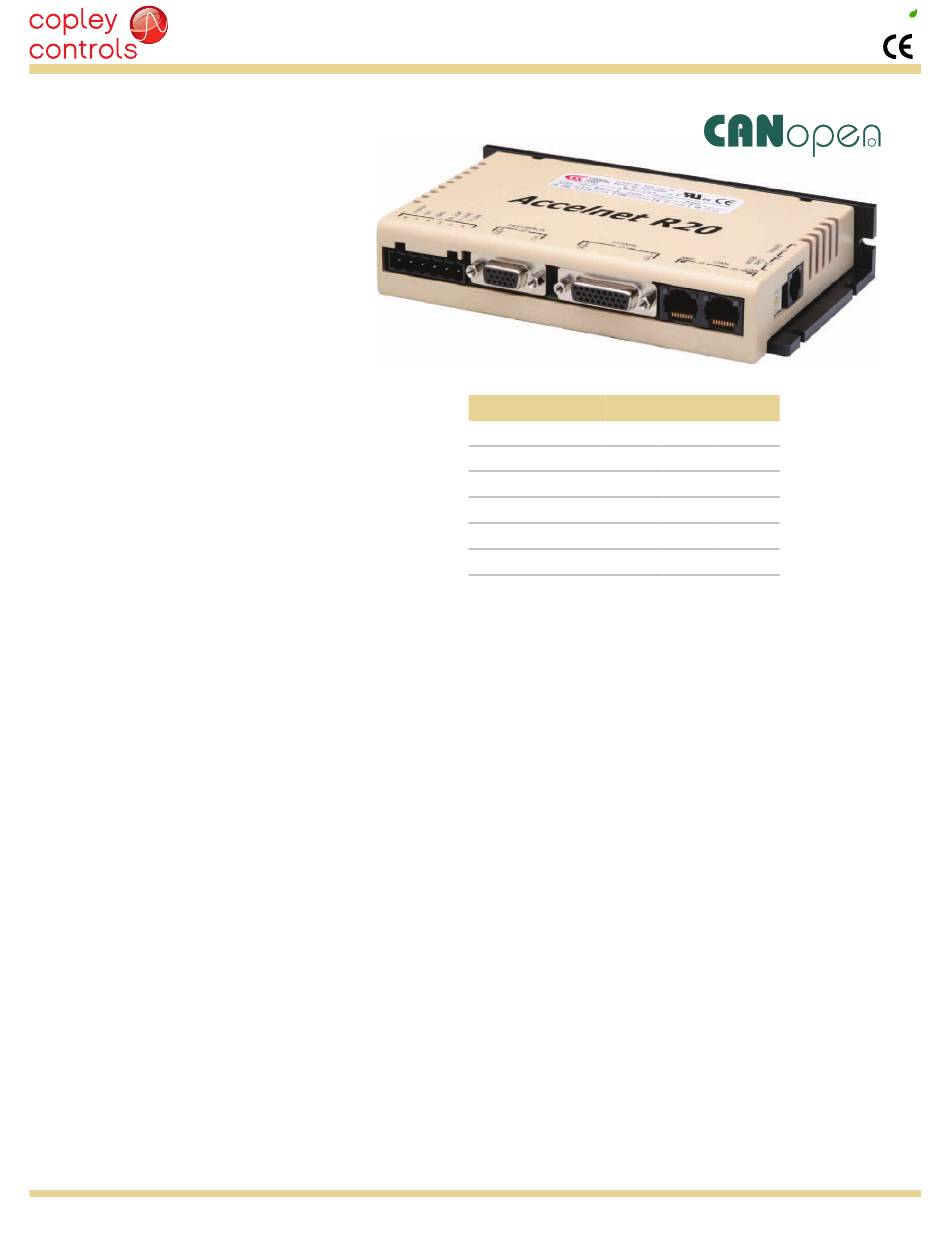

Accelnet R20
CONTROL MODES
Indexer, Point-to-Point, PVT
Camming, Gearing, Position, Velocity, Torque
COMMAND INTERFACE
Stepper commands
Single-ended or Differential selectable
CANopen
ASCII and discrete I/O
±10V position/velocity/torque command
PWM position/velocity/torque command
Master encoder (Gearing/Camming)
COMMUNICATIONS
CANopen
RS-232
RS-422 (Optional)
FEEDBACK
Digital quad A/B encoder
Aux encoder / emulated encoder out
Analog sin/cos encoder (-S versions)
Brushless resolver (-R option)
Digital Halls
I/O - DIGITAL
12 inputs, 3 outputs
DIMENSIONS: mm [in]
168 x 99 x 31 [6.6 x 3.9 x 1.2]
DESCRIPTION
Accelnet R20 is a ruggedized high-performance, DC powered drive for position, velocity (using encoder, resolver, Halls, or BEMF), and
torque control of brushless and brush motors. It operates as a distributed drive using the CANopen protocol, or as a stand-alone drive
accepting analog or digital commands from an external motion controller. In stand-alone mode, current and velocity modes accept
digital 50% PWM or PWM/polarity inputs as well as ±10V analog. In position mode inputs can be incremental position commands from
step-motor controllers, analog ±10V, or A/B quadrature commands from a master-encoder. Pulse to position ratio is programmable for
electronic gearing.
Accelnet R20 models operate as Motion Control Devices under the DSP-402 protocol of the CANopen DS-301 V4.01 (EN 50325-4)
application layer. DSP-402 modes supported include: Profile Position, Profile Velocity, Profile Torque, Interpolated Position Mode (PVT),
and Homing. The two CAN ports are optically isolated from drive circuits.
There are twelve digital inputs eleven of which have programmable functions. These include CAN address, motion-abort, limit & home
switches, stepper/encoder pulse inputs, reset, digital torque or velocity reference, and motor over-temperature. Input [IN1] is dedicated
for the drive Enable. There are three programmable logic outputs for reporting an drive fault, motor brake control, or other status
indications.
Drive power is transformer-isolated DC from regulated or unregulated power supplies. An AuxHV input powers control circuits for "keep-
alive" operation permitting the drive power stage to be completely powered down without losing position information, or communications
with the control system.
RUGGEDIZED STANDARDS CONFORMANCE
Ambient Temperature
Thermal Shock
Relative Humidity
Vibration
Altitude
Shock
MIL-STD specifications
IEC specifications
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
RUGGEDIZED DIGITAL
BRUSHLESS/BRUSH MOTORS
Model
Ip
R20-055-18
18
R20-090-09
R20-090-18
18
R20-090-36
36
R20-180-09
R20-180-18
18
Add -S to part numbers above for sin/cos feedback
Add -R to part numbers above for resolver feedback
Non-Operating
-50ºC to 85ºC
Operating
-40ºC to 70ºC
Operating
-40ºC to 70ºC in 1 minute
Non-Operating
95% non-condensing at 60ºC
Operating
95% non-condensing at 60ºC
Operating
5 Hz to 500 Hz, up to 3.85 grms
Non-Operating
-400 m to 12,200 m
Operating
-400 m to 5,000 m
Crash Safety
75 g peak acceleration
Operating
40 g peak acceleration
MIL-STD-
461, 704, 810, 1275, 1399
IEC-
60068, 60079
Tel: 781-828-8090
R20
SERVO DRIVE FOR
Ic
Vdc
6
55
9
3
90
6
90
12
90
9
3
180
6
180
Fax: 781-828-6547
Page 1 of 24
RoHS
R
