Accelnet R23

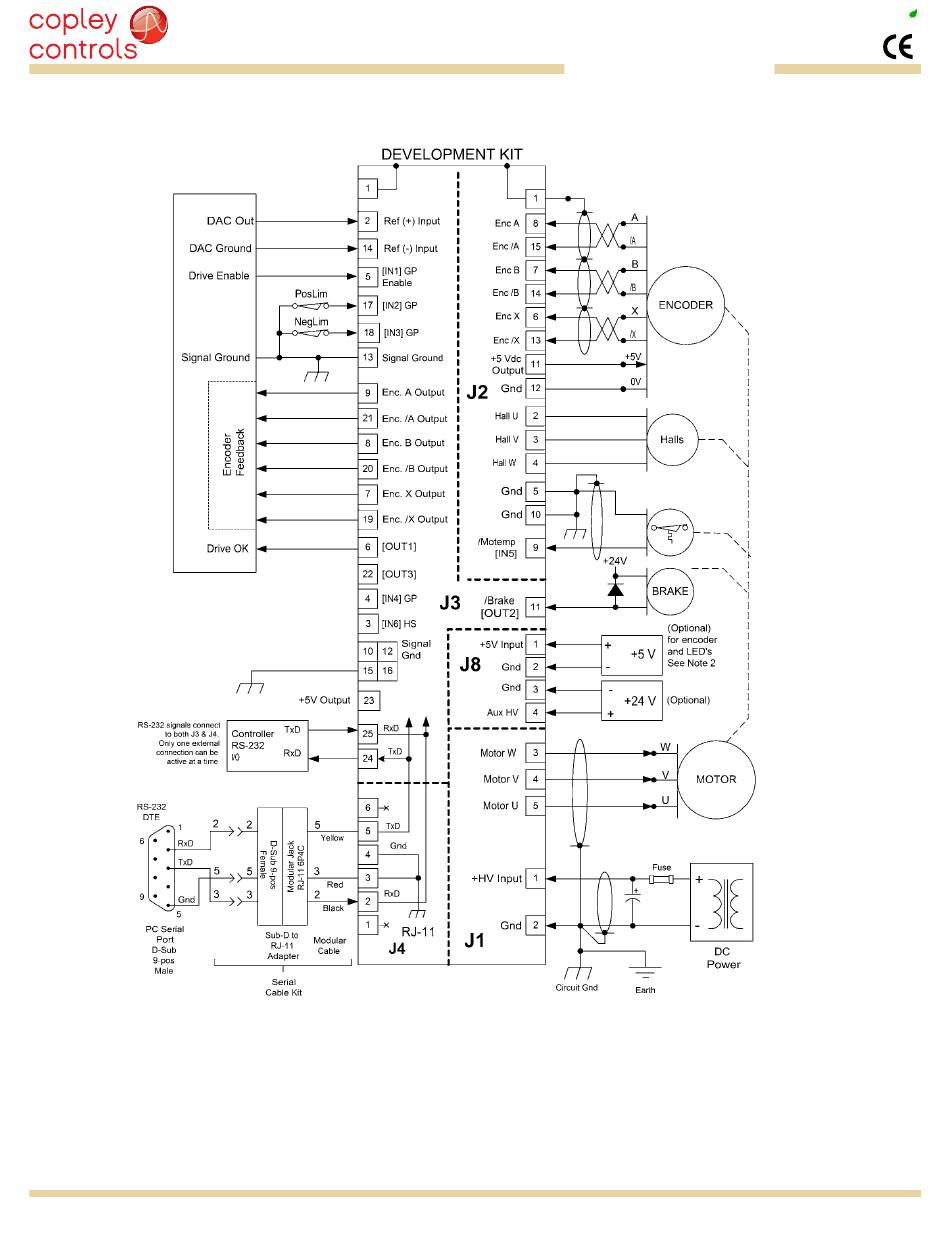

DEVEloPMEnT kIT ConnECTIonS
notes:
1. CAn connectors J6 & J7 are not shown here. for details see pp. 3,6, & 10.
2. JP8 installed: +5 Vdc @ 250 mA from drive available at J3-23
JP8 removed: +5 Vdc must be supplied from an external power supply connected to J8-1 & 2.
WhEn UsInG EXtERnal 5 VDC PoWER sUPPly, JP8 MUst BE REMoVED oR DaMaGE to DRIVE WIll oCCUR
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
N 2
ote
RUGGEDIZED DIGITAL
SERVO DRIVE fOR
BRUSHLESS/BRUSH MOTORS
Development Kit
Tel: 781-828-8090
R23
RoHS
Fax: 781-828-6547
Page 18 of 24
