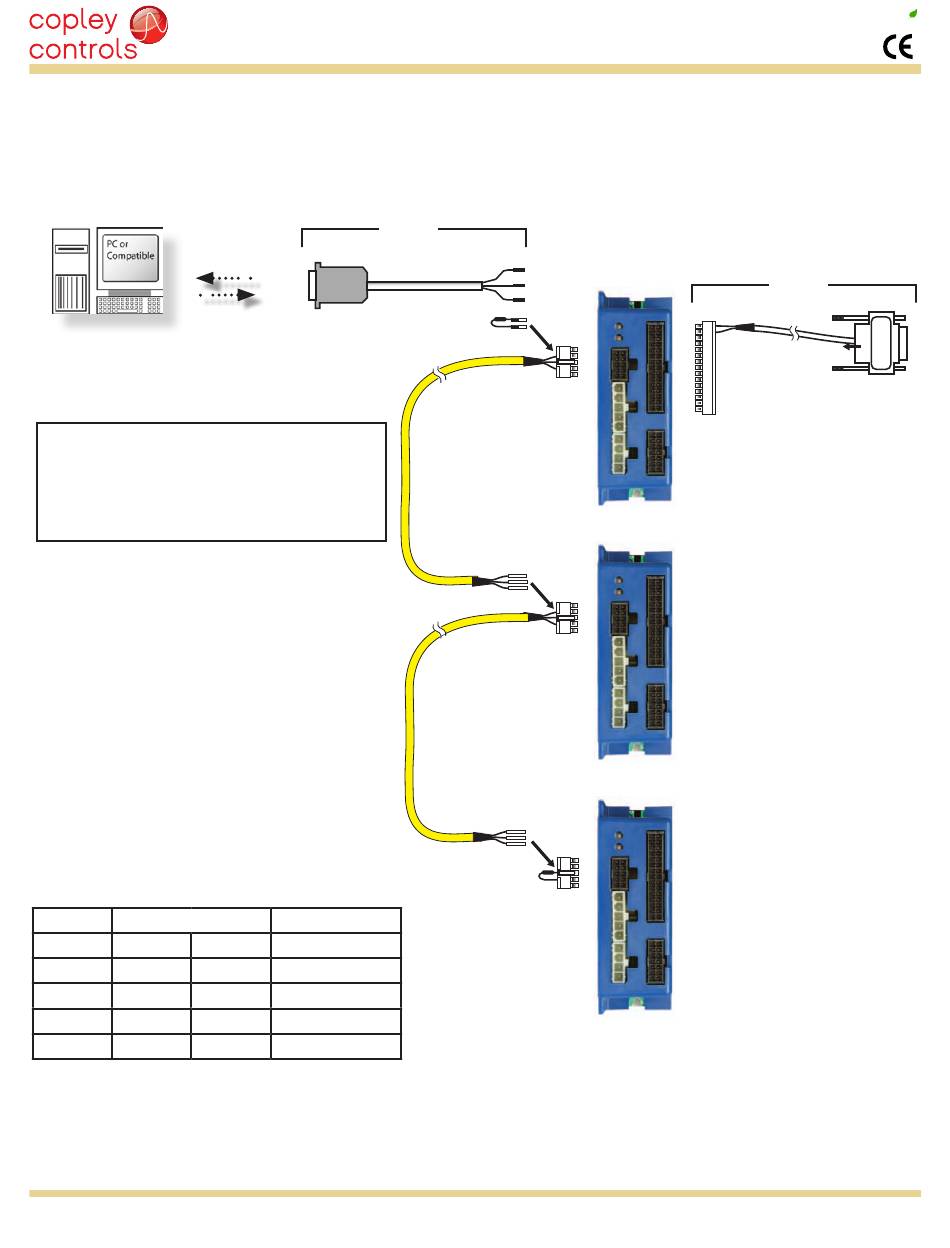

MULTIPLE-DRIVE SETUP FOR CANOPEN POSITION CONTROL
CANopen
Master
Node-ID = 0
Sub-D
9-pin
CANopen Rules:
Node-ID 0 is reserved for bus master
Slave node-ID range is 0x01~0x7F (1~127)
All slave node-ID's must be unique
The slave node-IDs shown here
are for example and can be any
number that follows the CANopen
rules (see box above).
R21-NC-10 & R21-NC-01 CAnopen
cable assemblies
Color
N/C 6
7
N/C
N/C 8
N/C 9
10
N/C
These cables connect to amplifier J1 and have 3 conductors of
AWG 24 wire that are terminated in contacts that can then be
inserted into pins 7~9 of another R21-NC-10 to "daisy chain"
the CAN signals to multiple amplifiers.
