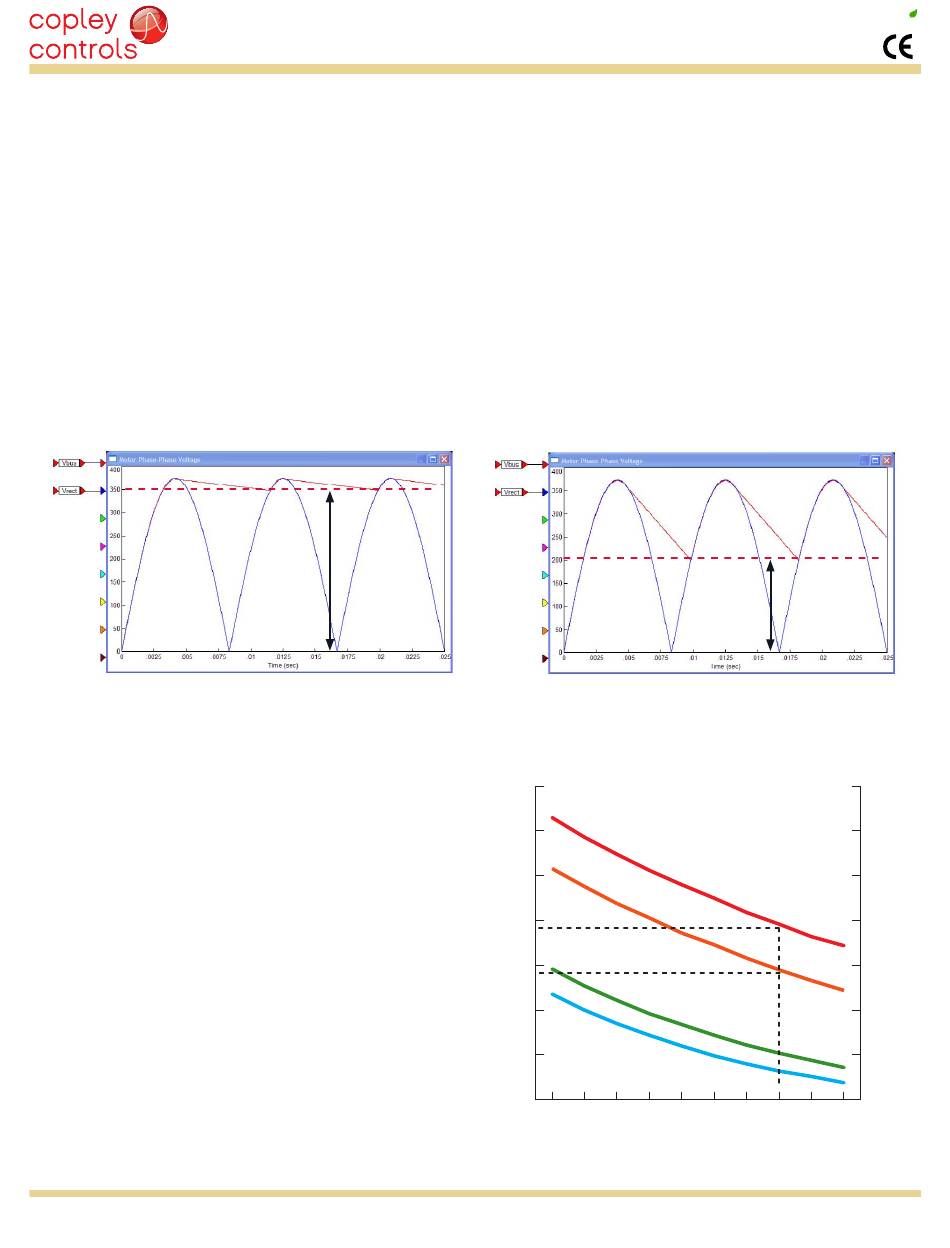

OUTPUT VOLTAGE LIMITS
The R11 rectifies the AC mains power to produce an internal DC
supply (HV). The rectified mains power is stored temporarily in a
capacitor. As the load power increases, energy is drawn from the
capacitor, discharging it until re-charged by the next cycle of the
mains. Because the capacitor is only charged for a brief time at
2X the line frequency, the voltage will decrease between these
charges producing "ripple" on the DC supply. As the motor voltage
increases (a combination of BEMF (Back ElectroMotive Force) and
voltage-drop across the motor's resistance) it eventually hits the
bottom of the ripple voltage waveform on the DC supply.
DC SUPPLY VOLTAGE AT LOW OUTPUT CURRENT
AND POWER
Clipping Voltage
EXAMPLE
Assume 8 Adc is required to accelerate a linear motor to 2.5 m/s. Motor
resistance is 12 Ω and BEMF constant is 36 V/m/s. The motor is brushless
driven with sinusoidal commutation:
1) Find I*R voltage drop:
8 Adc * 12 Ω * 0.75 = 72 Vdc.
The 0.75 factor converts the line-line resistance of the motor to the
effective resistance when commutating sinusoidally.
2) Find BEMF at 2.5 m/s: 36 V/m/s * 2.5 m/s = 90 Vdc
3) Find motor terminal voltage:
I*R + BEMF = 72 + 90 = 162 Vdc
4) The dotted lines on the graph to the right show the clipping voltages at
8 Adc. Operation at 240 Vac would give about 28 V of headroom. But, at
200 Vac, either the motor velocity or accelerating current would have to be
reduced to avoid clipping.
Finally, note that the motor resistance will increase 29% if it heats from 25C
to 100C. That would change the required terminal voltage to 183 Vdc. In
general, allow 20~30% headroom between motor terminal voltage demand
and the clipping voltage. Using the oscilloscope in CME 2 software, the bus
voltage and motor terminal voltage can be displayed for a final determination
of the headroom in the working machine.
