CANOPEN NODE-ID (ADDRESS) SWITCH CONNECTIONS

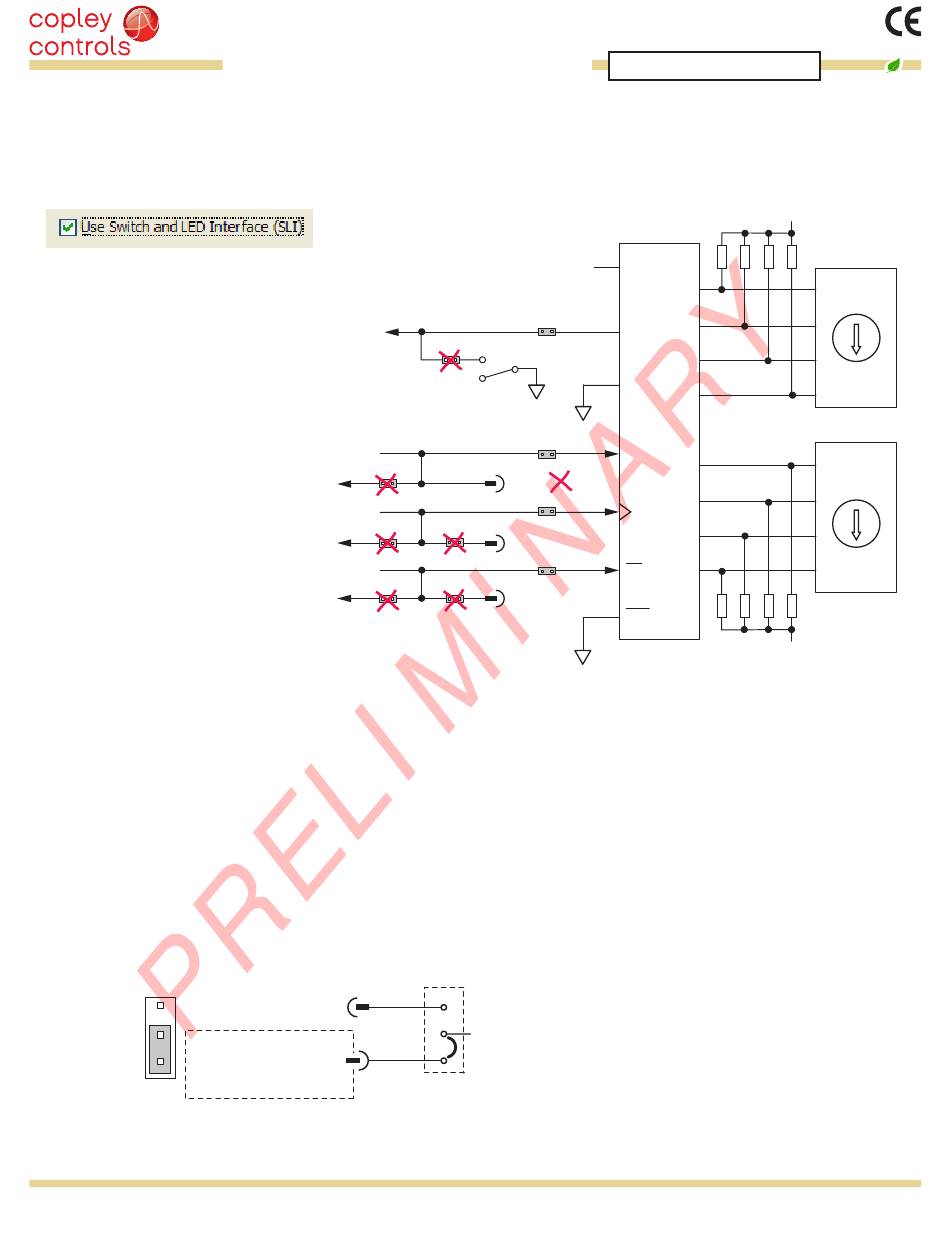

The graphic below shows the connections to the CANopen Node-ID switches. These are read after the drive is reset, or powered-on. When changing the
settings of the switches, be sure to either reset the drive, or to power it off-on. Outputs [OUT3,4,5] and input [IN10] operate as an SLI (Switch & LED
Interface) port which reads the settings on the CANopen Node-ID switches, and controls the LEDs on the serial and CANopen port connectors.
The jumpers marked with red "X" should be removed so that SW10, or external connections to the signals do not interfere with the operation of the SLI
port.
CME2 -> Input/Output -> Digital Outputs
The jumpers marked with red "X"
should be removed so that SW18,
or external connections to the
signals do not interfere with the
operation of the SLI port.
5V POWER SOURCES
The feedback connector J7 has connections for two power supplies:
Pin 6 has +5V supplied by the R52 module
Pin 17 connects to jumper J4 for the selection of the 5V power source:
On J4, when the jumper connects pins 2 & 3, the power source is the R52 internal supply (the default setting)
When the jumper is on pins 1 & 2, the power source comes from an external power supply connecting to J5-1.
5V power on the Development Kit that comes from the selectable 5V power source on J4 is labeled "5V SEL".
Circuits powered by 5V supplied only by the R52 are labeled "5V R52"
J4
External +5V
1
2
+5V output
3
from module
