SERVO MODE

Servo mode operates a stepper like a brushless servo motor taking position feedback from an encoder and controlling position, veloc-
ity, or torque. Command inputs include all of the digital inputs and modes as well as the ±10V analog input which can control position,
velocity, and current.

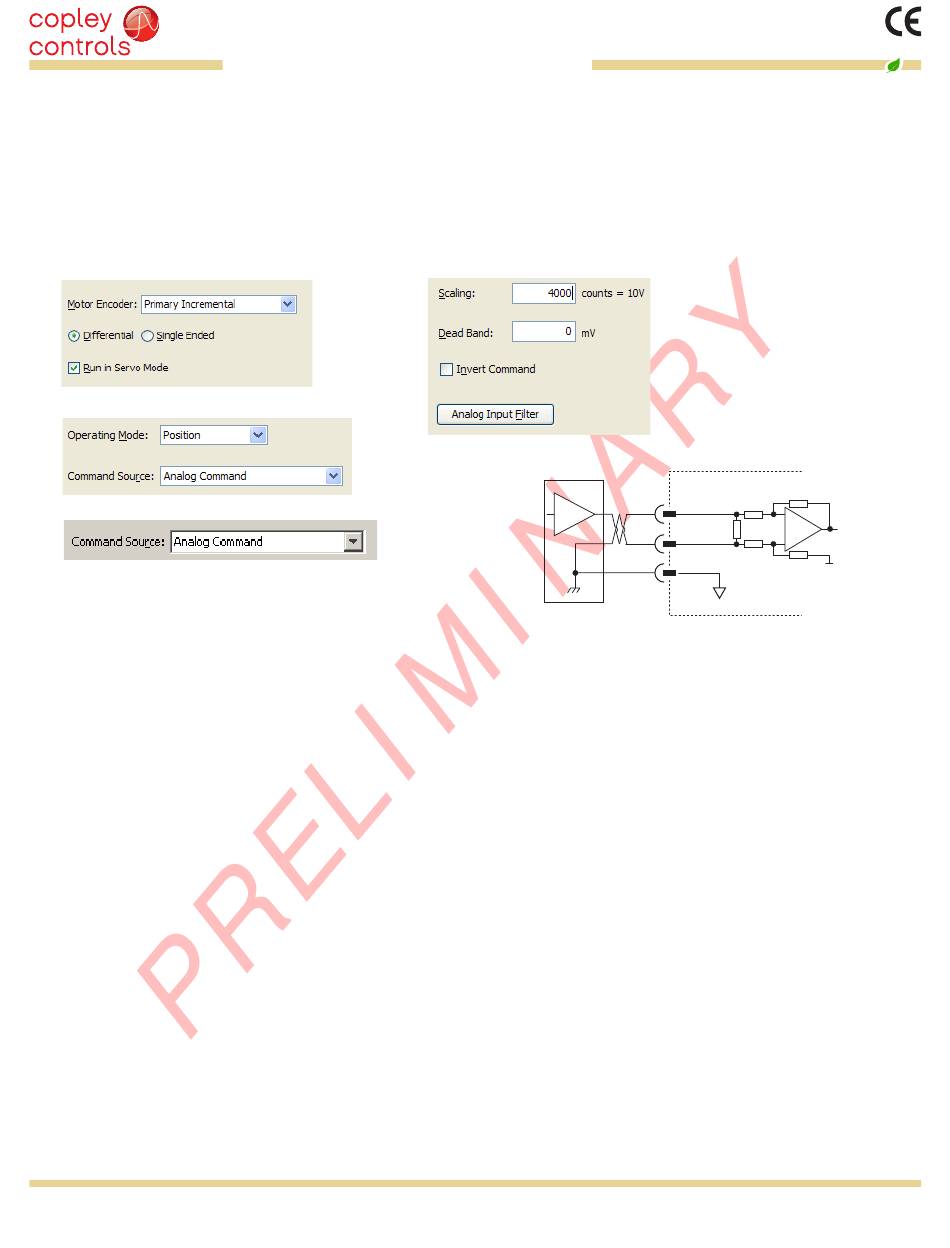

ANALOG COMMAND INPUT
In addition to the digital position and velocity inputs on the preceding page, the analog input can be used to control position, velocity,
and torque.
CME2 -> Basic Setup -> Feedback Options
CME2 -> Basic Setup -> Operating Mode Options
CME2 -> Basic Setup -> Operating Mode Options
