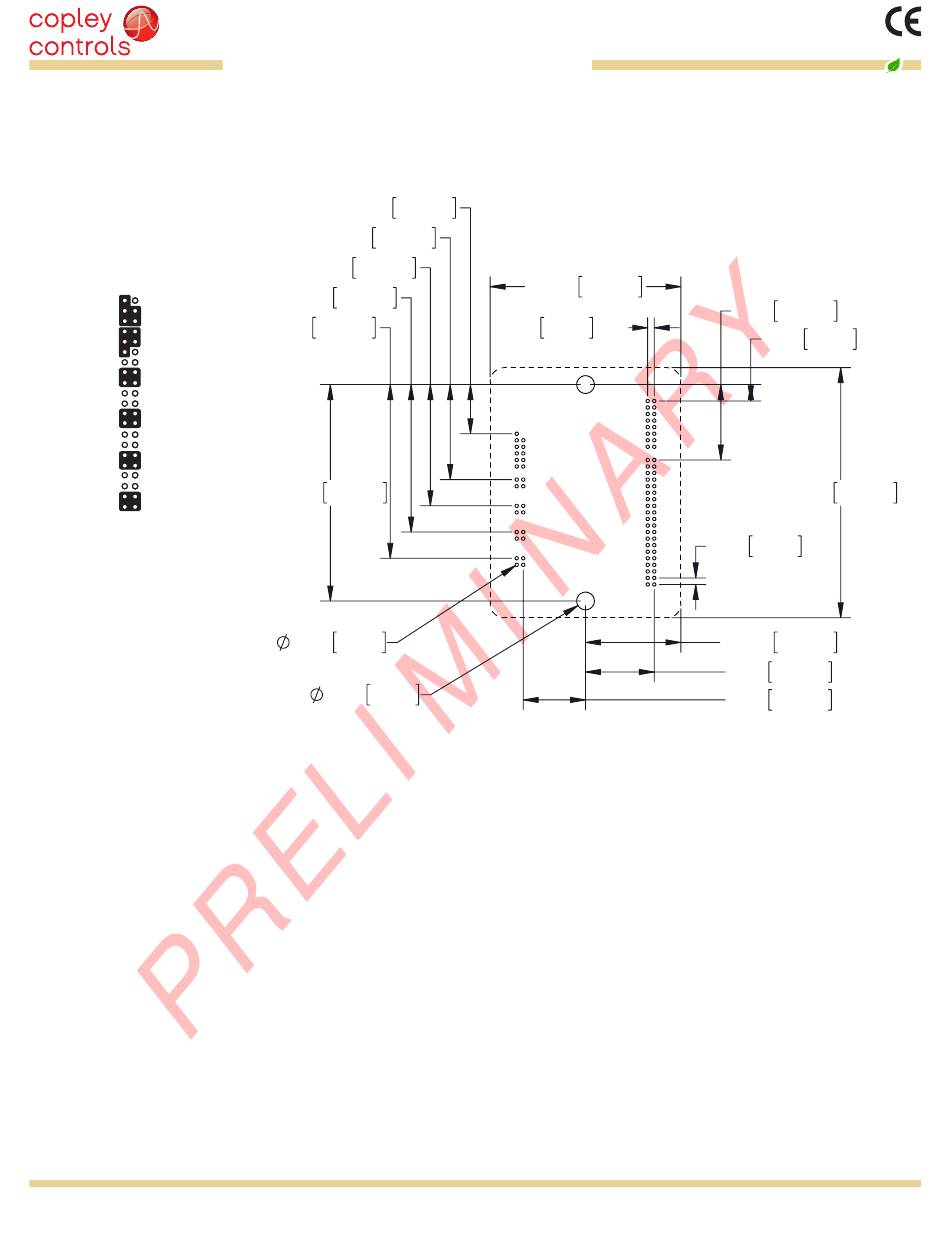

PRINTED CIRCUIT BOARD FOOTPRINT
DIMENSIONS ARE IN[MM]
P1 Signal Grouping
for current-sharing
See Note 1
PCB Hardware:
Qty Description
1 Socket Strip
1 Socket Strip
1 Socket Strip
2 Standoff
Additional Hardware (not shown above)
2 Screw, #4-40 x 1.25" Phillips Pan Head External Tooth Lockwasher SEMS, Stainless, or steel with nickel plating,
Torque to 3~5 lb-in (0.34~0.57 N·m)
Notes
1. J1 signals of the same name must be connected for current-sharing (see graphic above).
2. To determine copper width and thickness for J3 signals refer to specification IPC-2221.
(Association Connecting Electronic Industries, http://www.ipc.org)
3. Standoffs or mounting screws should connect to etch on pc board that connect to frame ground for maximum noise suppression and immunity.
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
Stepnet
.591 15.01
1.142 29.01
1.457 37.01
1.772 45.01
2.087 53.01
2.600 66.04
.040 1.02
2X .213 5.41
Mfgr Part Number
Samtec SQW-121-01-L-D
Samtec SQW-120-01-L-D
Samtec SQW-108-01-L-D
PEM KFE-4/40-8ET
R52
Plus
TOP VIEW
Viewed from above looking down on
the connectors or PC board footprint to
which the module is mounted
2.292 58.22
.079 2.00 TYP
Remarks
J1 HV & Motor
J2 Control
J3 CANopen
#4/40 X 1/4"
Tel: 781-828-8090
RUGGEDIZED DIGITAL
STEPPER DRIVE MODULE
RoHS
.906 23.01
.197 4.99
3.005 76.33
.079 2.00 TYP
1.146 29.11
.826 20.99
.748 19.00
Fax: 781-828-6547
Page 13 of 24
