MAXIMUM OPERATING TEMPERATURE VS HEATSINK TYPE & AIR CIRCULATION

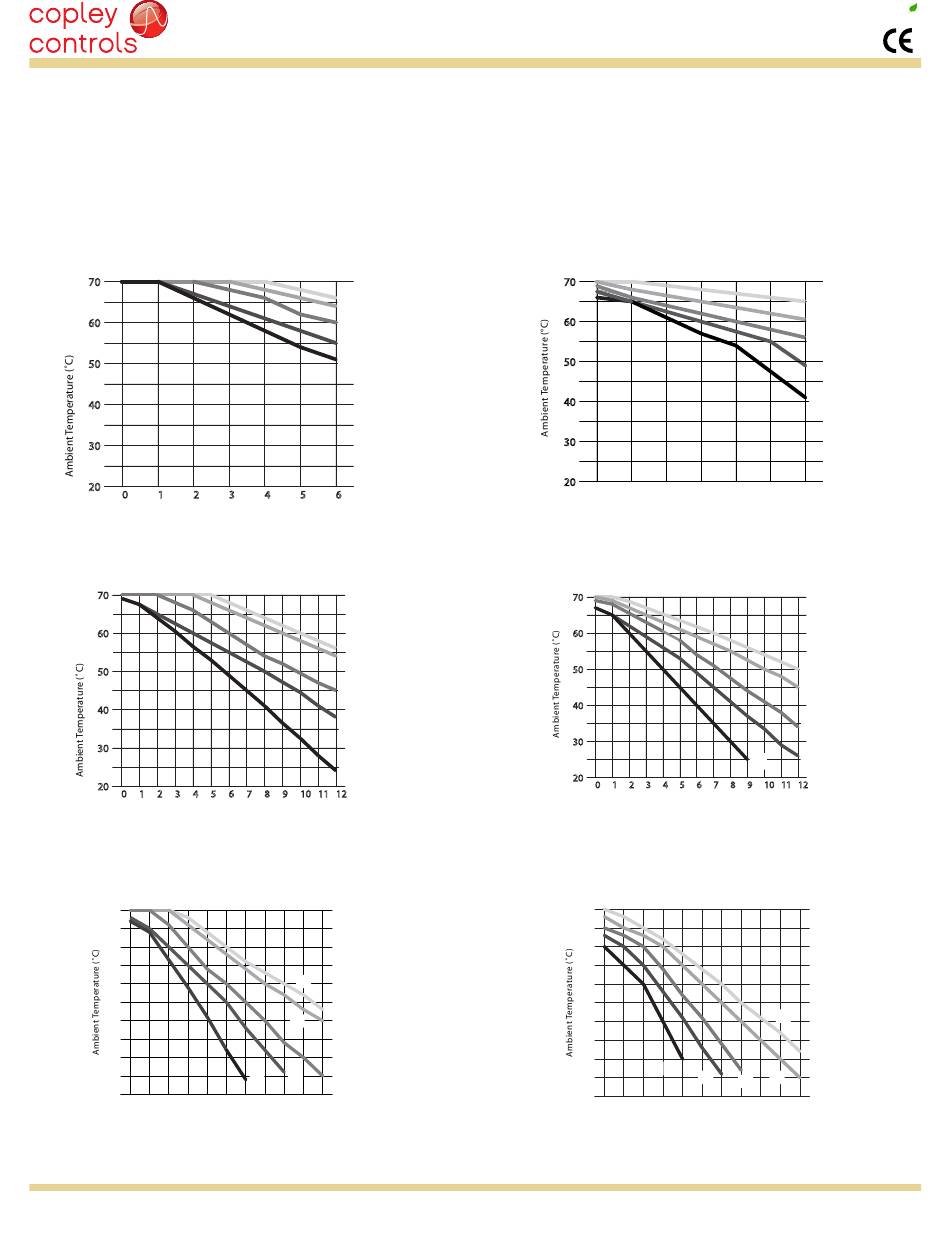

The charts below show that maximum ambient temperature vs. continuous output current for
the Xenus R10 models. The cooling options are no heatsink, standard heatsink, and low-profile
heatsink. For each of these the drive can be operated with convection or forced-air cooling.
Model: R10-230-18
Mains: 120 Vac
70
60
50
40
30
20
0 1 2
Continuous Output Current (Adc)
Model: R10-230-36
Mains: 120 Vac
70
60
50
40
30
20
0 1 2 3 4
Continuous Output Current (Adc)
Model: R10-230-40
Mains: 120 Vac
70
60
50
40
30
20
0 2 4 6 8
Continuous Output Current (Adc)
