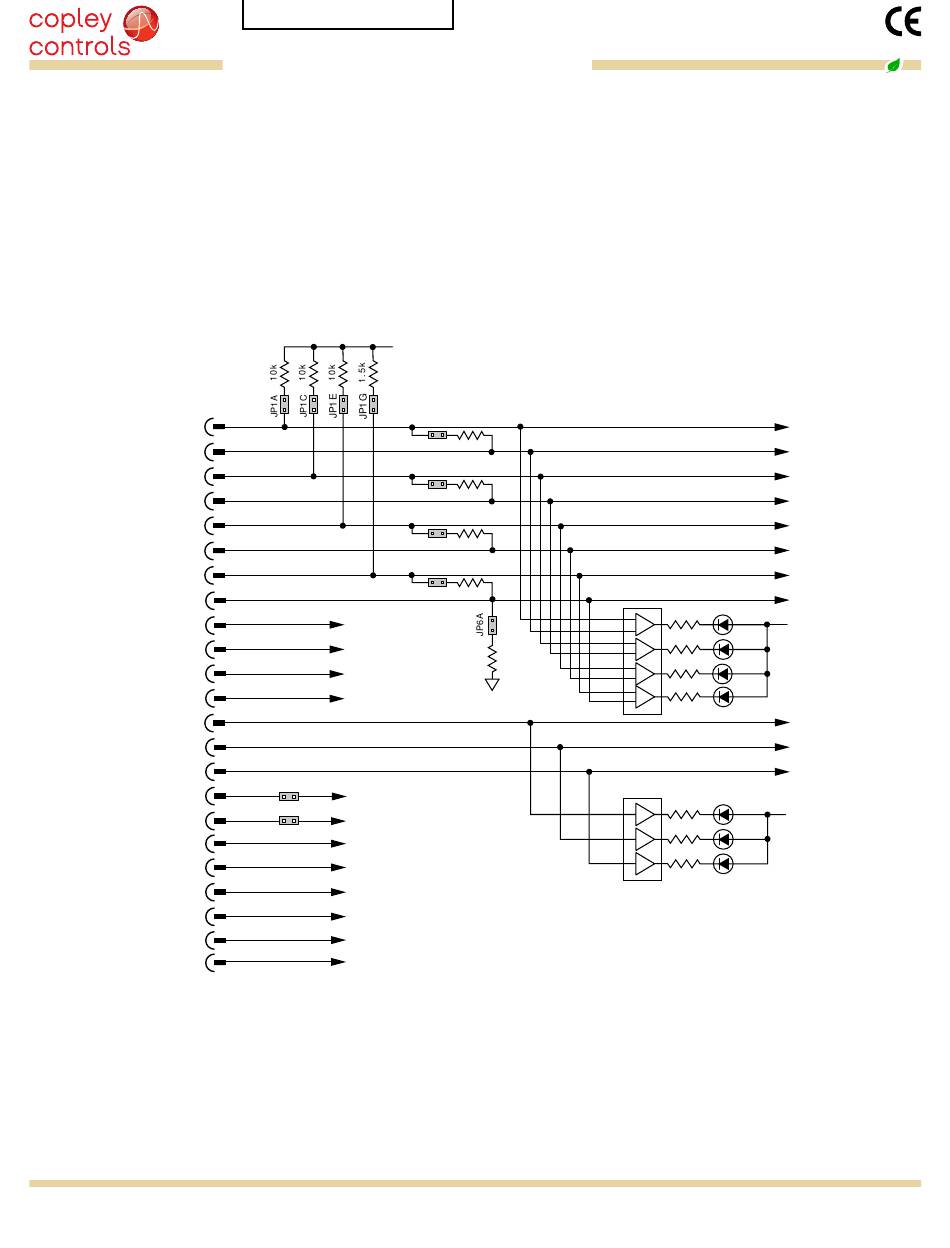

MOTOR FEEDBACK CONNECTOR J7
For motors with differential encoders: install jumpers JP1B, JP1D, JP1F, and JP1H to connect 121 ohm terminators across inputs
Jumpers JP1A, JP1C, JP1E, and JP1G do not affect this setting and may remain in place or be removed.
For motors with single-ended encoders: remove jumpers JP1B, JP1D, JP1F, and JP1H to disconnect 121 ohm terminators
Install jumpers JP1A, JP1C, JP1E, and JP1G
A motor temperature sensor that connects to [IN11] must have jumper JP4F installed and JP3C removed to prevent switch SW11
from grounding the Motemp[In11] signal.
If the encoder has a fault output, then jumper JP4H must be in place and jumper JP3A must be removed to prevent switch SW9 from
grounding the Enc Fault [In9] signal.
Absolute encoders such as the nikon A type that use 2-wire bidirectional signals require biasing the lines when they are in a
quiescent state. Jumpers JP1G, JP1H, and JP6A must be in place to provide line termination and biasing.
lED's are provided to show the status of the encoder and Hall signals.
Enc A
Enc /A
Enc B
Enc /B
Enc X
Enc /X
Enc S
Enc /S
Enc Sin(+)
Enc Sin(-)
Enc Cos(+)
Enc Cos(-)
Hall U
Hall V
Hall W
Motemp [IN11]
Enc Fault [IN9]
Enc +5V AEM
Enc +5V SEL
Signal Gnd
Signal Gnd
Signal Gnd
Signal Gnd
