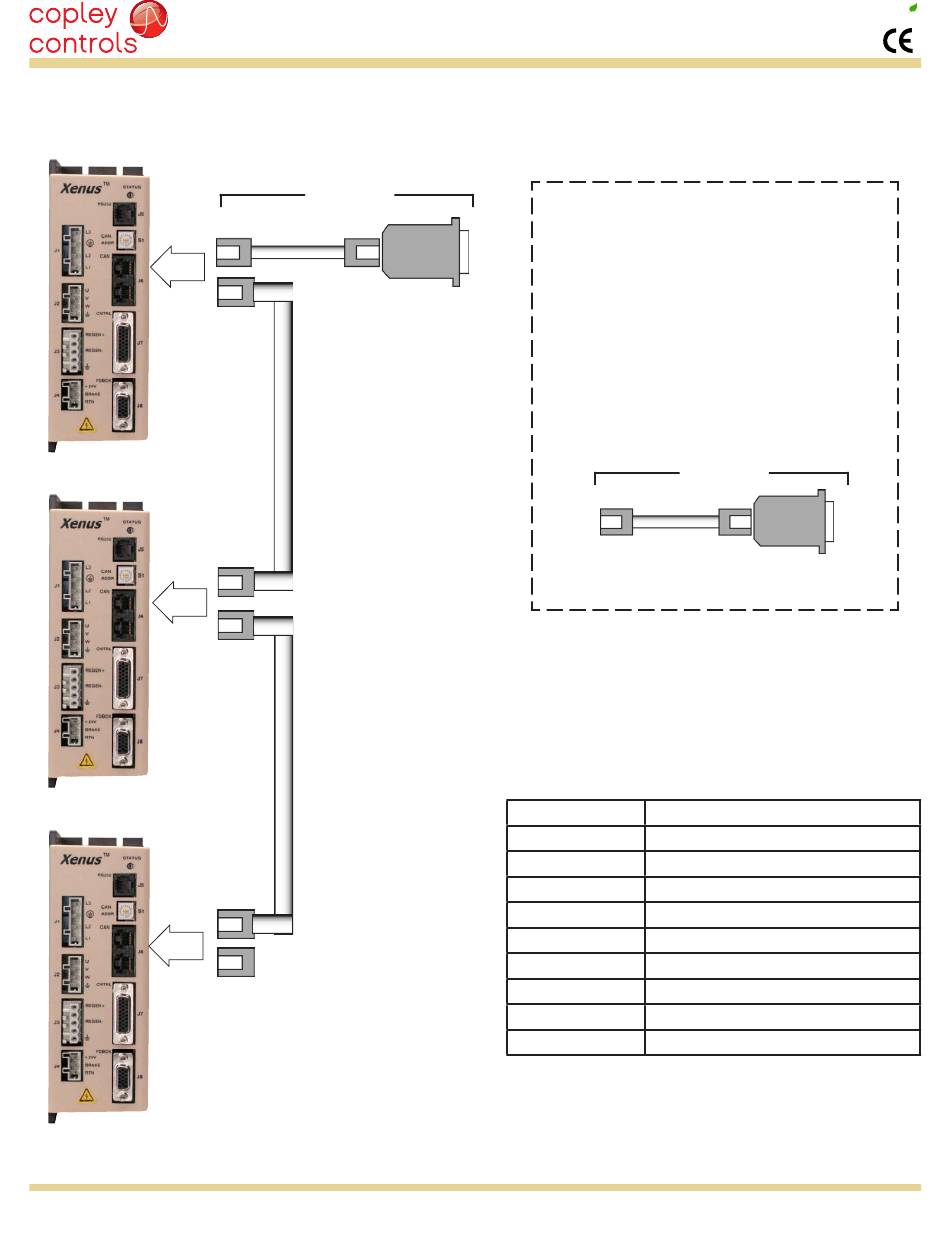

MULTIPLE-DRIVE SETUP FOR CANOPEN POSITION CONTROL
J6
J6
J6
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
Tech Support: E-mail: sales@copleycontrols.com, Internet: http://www.copleycontrols.com
Xenus R10
R10-NK
R10-NC-10
or
R10-NC-01
For s i de - by- si de dr ive
mounting, use XSL-NC-01
cables that are 1 ft long.
Use XSL-NC-10 cables
(length is 10 ft) where
distances between drives
is greater.
R10-NC-10
or
R10-NC-01
CAN Terminator
RUGGEDIZED DIGITAL
BRUSHLESS/BRUSH MOTORS
For multiple-drive installations,
use the ordering guide on this
page. Computer equipment is
the same as for single-drive
installations. And Serial Cable
Kit SER-CK is used when CME 2
is in use for drive set up and
configuration.
Ordering Guide
Table below shows parts to order for the configuration on this page
See page 24~25 for other parts required
(motor, +24V power supply, etc.)
Part number
R10-230-18
R10-230-36
R10-230-40
R10-nk
R10-NC-10
R10-NC-01
R10-ck
cme2
ser-ck
Add -S to part numbers above for sin/cos feedback,
or add -R for resolver feedback models.
