HEATSINK & FAN CONFIGURATIONS

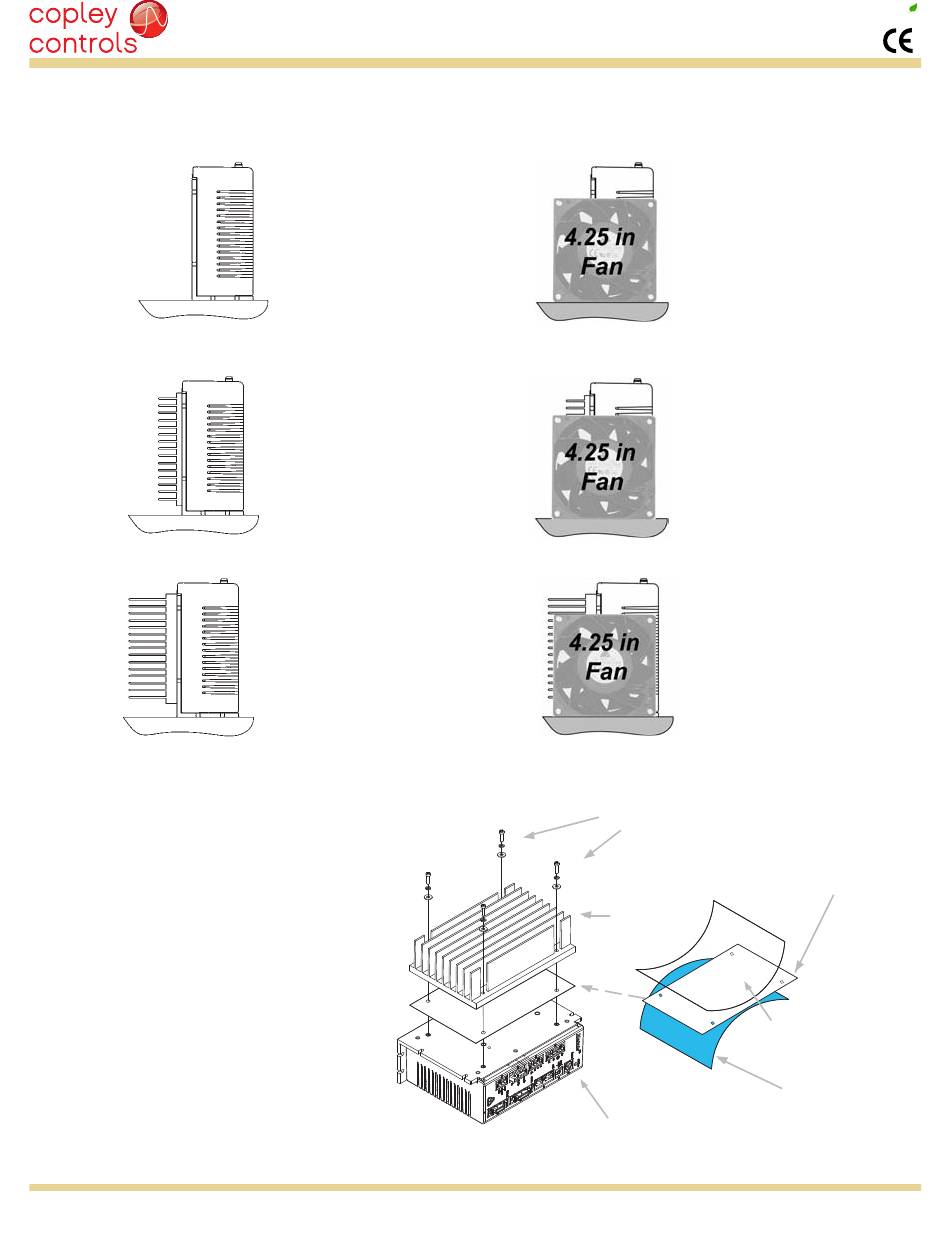

HEATSINK MOUNTING
A dry-film interface pad is used in place of thermal
grease. The pad is die-cut to shape and has holes
for the heat sink mounting screws. There are two
protective sheets, blue on one side and clear on the
other. Both must be removed when the interface
pad is installed.
STEPS TO INSTALL
1. Remove the blue protective sheet from one side
of the pad and place the pad on the drive. Make
sure that the holes in the pad align with the
holes on the drive.
2. Remove the clear protective sheet from the
pad.
3. Mount the heatsink onto the drive taking care
to see that the holes in the heatsink, pad,
and drive all line up.
4. Torque the #6-32 mounting screws to 8~10 lb-
in (0.9~1.13 N·m).
