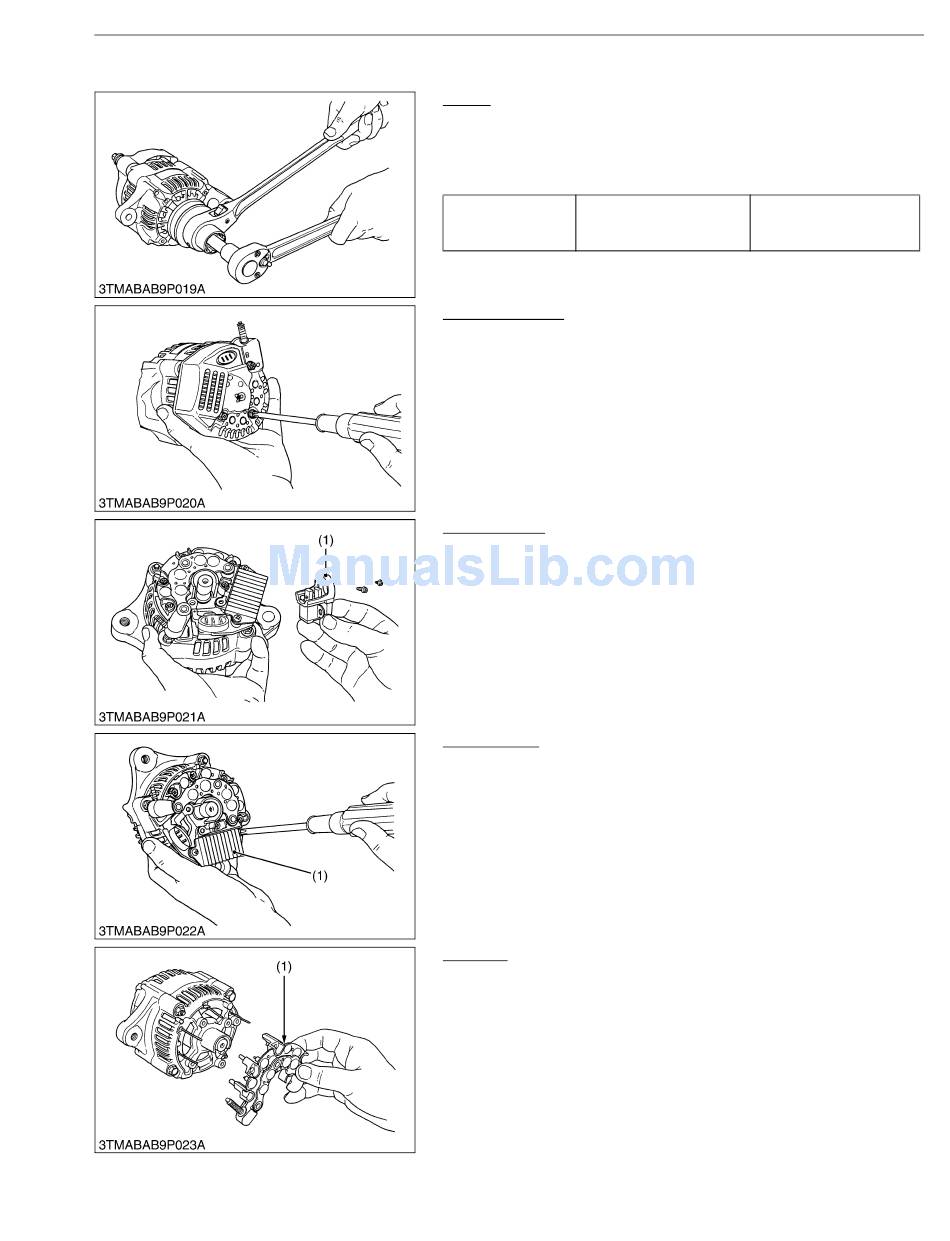

(2) Disassembling and Assembling

Pulley
1. Secure the hexagonal end of the pulley shaft with a double-
ended ratchet wrench as shown in the figure, loosen the pulley
nut with a socket wrench and remove it.
(When reassembling)
Tightening torque Pulley nut
Rear End Cover
1. Unscrew the three rear end cover screws and the B terminal nut,
and remove the rear end cover.
Brush Holder
1. Unscrew the two screws holding the brush holder (1), and
remove the brush holder (1).
(1) Brush Holder
IC Regulator
1. Unscrew the three screws holding the IC regulator (1), and
remove the IC regulator (1).
(1) IC Regulator
Rectifier
1. Remove the four screws holding the rectifier (1) and the stator
lead wires.
2. Remove the rectifier (1).
(1) Rectifier
9-S45
ELECTRICAL SYSTEM
58.3 to 78.9 N·m
5.95 to 8.05 kgf·m
43.0 to 58.2 ft-lbs
W10187280
W10189820
W10190540
W10191230
W10191920
KiSC issued 02, 2007 A
