[5] CHECK POINTS OF EVERY 200 HOURS

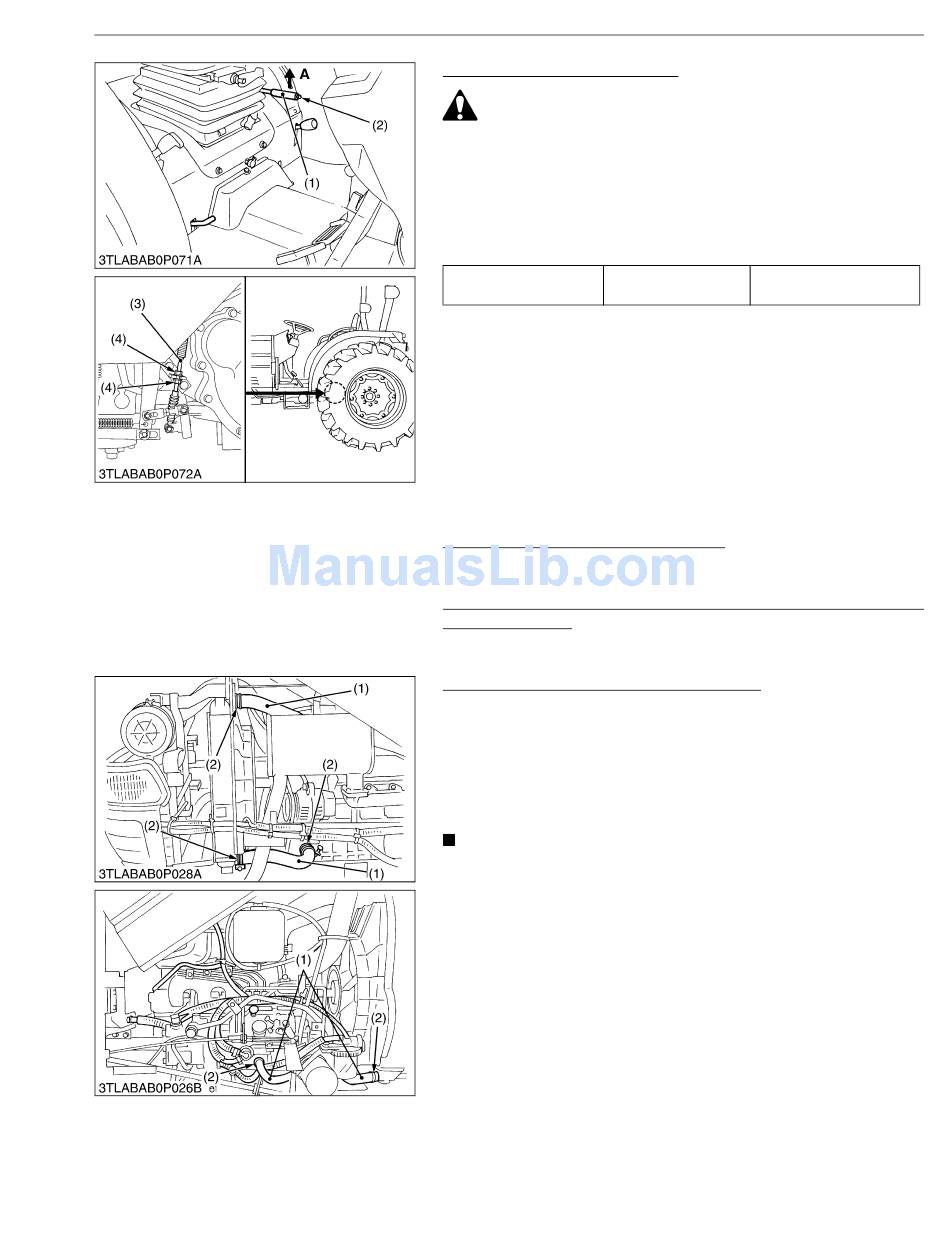

Adjusting Parking Brake Lever
CAUTION
• Stop the engine and chock the wheels before checking
parking brake.
1. Raise the parking brake lever (1) to the parking position while
counting the ratchet sound made by the parking brake lever (1).
2. If adjustment is needed, loosen the lock nut (2) and adjust the
parking brake cable (3) length with in acceptable limit.
3. Retighten the lock nut (2).
Proper parking brake
Factory spec.
lever free travel
(1) Parking Brake Lever
(2) Release Button
Replacing Engine Oil Filter Cartridge
1. See page G-15.
Replacing Hydraulic Oil Filter / Replacing Transmission Oil
Filter [HST Type]
1. See page G-16.
Checking Radiator Hose and Hose Clamp
Check to see if radiator hoses are properly fixed every 200 hours
of operation or six months, whichever comes first.
1. If hose clamps are loose or water leaks, tighten bands securely.
2. Replace hoses and tighten hose clamps securely, if radiator
hoses are swollen, hardened or cracked.
Replace hoses and hose clamps every 2 years or earlier if
checked and found that hoses are swollen, hardened or cracked.
Precaution at Overheating
Take the following actions in the event the coolant temperature
be nearly or more than the boiling point, what is called
"Overheating".
1. Stop the machine operation in a safe place and keep the engine
unloaded idling.
2. Don't stop the engine suddenly, but stop it after about 5 minutes
of unloaded idling.
3. Keep yourself well away from the machine for further 10 minutes
or while the steam blown out.
4. Checking that there gets no danger such as burn, get rid of the
causes of overheating
"Troubleshooting" section, and then, start again the engine.
(1) Radiator Hose
G-27
G GENERAL
2 notches
(Ratchet sound 2)
(3) Parking Brake Cable
(4) Lock Nut
according to the manual, see
(2) Clamp
