IBM TotalStorage SAN32M-1 Switch
Installation and Service Manual
Service information: 2027 / 232
Read Before Using
This product contains software that is licensed under written license agreements. Your use of such software is subject to
the license agreements under which they are provided.
GC26-7665-02

Advertisement

Table of Contents
loading

Related Manuals for IBM TotalStorage SAN32M-1

Summary of Contents for IBM TotalStorage SAN32M-1

  • Page 1 IBM TotalStorage SAN32M-1 Switch Installation and Service Manual Service information: 2027 / 232 Read Before Using This product contains software that is licensed under written license agreements. Your use of such software is subject to the license agreements under which they are provided.
  • Page 3 IBM TotalStorage SAN32M-1 Switch Installation and Service Manual Service information: 2027 / 232 GC26-7665-02...
  • Page 4 ® Order publications through your IBM representative or the IBM branch office serving your locality. © Copyright International Business Machines Corporation 2004, 2005. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract...

  • Page 5: Table Of Contents

    Contents Who should use this manual............xix Related publications .................xix IBM and McDATA publications .............xix Ordering manuals ................xxi Where to get help ................xxi How to send your comments ............xxi Safety and environmental notices ..........xxii Safety notices and labels ............xxii Environmental notices ............
  • Page 6 Keyboard navigation..............28 Hardware view ................29 Window layout and function............ 29 Closing the Element Manager ..........44 EFCM Basic diagnostics............. 45 SNMP trap message support ............ 46 E-Mail and call-home support ..........47 Tools and test equipment..............47 Tools supplied with the switch..........48 Tools supplied by service personnel........
  • Page 7 Task 12: Assign user names and passwords........97 Task 13: Configure the switch to the management application.101 Task 14: Record or verify management server restore information Task 15: Verify switch-to-management server communication.105 Task 16: Configure PFE Key (optional) .........106 Task 17: Configure management server (optional) .....109 Configure OSMS ...............109 Installation .................109 Configure FMS ................110...
  • Page 8 Configure fabric parameters ........... 161 Configure Network Information ..........163 Configure basic port information........... 165 Configure port BB_Credit............166 Configure port NPIV..............167 Configure SNMP ..............167 Enable CLI ................. 169 Enable or disable host control..........169 Configure SSL encryption ............170 Install PFE keys (optional) ............
  • Page 9 Hardware log................298 Link incident log ...............300 Threshold alert log ..............301 Open trunking log..............303 EFCM Basic logs................304 Using views..................305 Port list view ................305 FRU list view..................307 Node list view................309 Performance view ..............310 Zone set view................310 Performing port diagnostics ............312 Port LEDs ...................312 Hardware view................313 Performance view ..............317 Perform loopback tests.............319...
  • Page 10 Install or upgrade software ............349 Chapter 5 FRU removal and replacement Remove and replace FRUs.............. 353 FRUs ................... 353 Procedural notes ............... 353 RRP: SFP transceiver ............... 354 Removal ..................354 Replacement ................355 RRP: power supply................356 Removal ..................356 Replacement ................
  • Page 11 Y....................405 Appendix B Event code tables System events (000 through 199) ...........409 Power supply events (200 through 299) ........427 Fan module events (300 through 399) ..........432 CTP card events (400 through 499) ..........438 Port module events (500 through 599) .........452 MPC module events (600 through 699) ........473 CMM module events (800 through 899) ........479 Appendix C...
  • Page 12 SAN32M-1 Installation and Service Manual...
  • Page 13 VNC authentication screen ................81 Welcome to windows dialog box ..............81 Log on to windows dialog box ..............82 SANavigator log in or EFCM log in dialog box ......... 82 Control panel window ................... 83 © Copyright IBM Corp. 2005...
  • Page 14 System properties dialog box (network identification tab) ..... 84 Identification Changes Dialog Box .............. 84 Network and dial-up connections window ..........85 Local area connection 2 status dialog box ..........86 Local area connection 2 properties dialog box .......... 86 Internet Protocol (TCP/IP) properties dialog box ........
  • Page 15 Configure SNMP dialog box ............... 141 Configure E-Mail dialog box ............... 142 Configure Ethernet events dialog box ............144 Configure call home event notification dialog box ......... 144 Configure threshold alerts dialog box ............146 New threshold alerts dialog box - first screen .......... 147 New threshold alerts dialog box - second screen ........
  • Page 16 Interconnecting multiple hubs ..............227 LCD panel (LAN 2 IP address) ..............231 Connection description dialog box ............232 Connect to dialog box .................. 233 COMn dialog box (COM1 or COM2) ............233 Hyperterminal window - configuration information ......234 Disconnect verification message box ............
  • Page 17 Node list view ....................309 Zone sets view ....................311 Hardware view .................... 313 Port properties dialog box ................314 Performance view ..................317 Port diagnostics dialog box ................ 320 Channel wrap on for port n dialog box ............ 324 Swap ports dialog box ................
  • Page 18 SAN32M-1 Installation and Service Manual...
  • Page 19 Tables IBM products and SAN management documentation—E/OS ....xx Status symbols ....................28 Operating bar and switch status ..............43 Factory-Set defaults (switch) ................ 51 Factory-Set defaults (management server) ..........51 Defaults for reset configuration (switch) ............ 52 Installation task summary ................55 Switch Operational States and Symbols ...........
  • Page 20 xviii SAN32M-1 Installation and Service Manual...

  • Page 21: Who Should Use This Manual

    • IBM eServer Safety Notices, G229-9054 IBM and McDATA publications Some of the documentation that is applicable to IBM TotalStorage products is provided by McDATA Corporation. The documents often are identified by a McDATA product name that corresponds to the IBM product name.

  • Page 22: Ibm Products And San Management Documentation-E/Os

    IBM products and SAN management documentation—E/OS Table 1 IBM TotalStorage Related firmware product name, and SAN and machine type McDATA product management and model name product Relevant documentation SAN12M1 Switch Sphereon 4300 • E/OS • E/OS SNMP Support Manual (620-000131) Switch •...

  • Page 23: Ordering Manuals

    Ordering manuals To order a printed copy of this publication, contact your IBM Branch office or you can locate (and purchase) books online at: http://www.elink.ibmlink.ibm.com/public/applications/publicatio ns/cgibin/pbi.cgi? Where to get help Contact IBM for technical support, which includes hardware support, all product repairs, and ordering of spare parts, go to: http://www.ibm.com/servers/storage/support/san/index.html.

  • Page 24: Safety And Environmental Notices

    Safety and environmental notices ATTENTION ! The IBM Total Storage SAN32M-1 is not designed to be installed and serviced by customers. Installation and servicing of the SAN32M-1 should be performed by qualified service representatives only.
  • Page 25 condition. Read and comply with the following danger notices before installing or servicing this device. DANGER To prevent a possible shock from touching two surfaces with different protective ground (earth), use one hand, when possible, to connect or disconnect signal cables. (D001) DANGER Overloading a branch circuit is potentially a fire hazard and a shock...
  • Page 26 A comprehensive danger notice provides instructions on how to avoid shock hazards when servicing equipment. Unless instructed otherwise, follow the procedures in the following danger notice. DANGER Electrical voltage and current from power, telephone, and communication cables are hazardous. To avoid a shock hazard: •...
  • Page 27 Labels As an added precaution, safety labels are often installed directly on products or product components to warn of potential hazards. These can be either danger or caution notices, depending upon the level of the hazard. The actual product safety labels may differ from these sample safety labels: DANGER Hazardous voltage, current, or energy levels are present inside any...
  • Page 28 If the symbol is... It means..A hazardous electrical condition with less severity than electrical danger. A generally hazardous condition not represented by other safety symbols. A specification of product weight that requires safe lifting practices. The weight range of the product is listed below the graphic, and the wording of the caution varies, depending on the weight of the device.
  • Page 29 CAUTION The system contains circuit cards and/or assemblies that contain lead solder. To avoid the release of lead (Pb) into the environment, do not burn. Discard the circuit card as instructed by local regulations. (C014) CAUTION Ensure the building power circuit breakers are turned off BEFORE you connect the power cord(s) to the building power.

  • Page 30: Environmental Notices

    IBM encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. IBM offers a variety of product return programs and services in several countries to assist equipment owners in recycling their IT products. Information on IBM product recycling offerings can be found on IBM’s Internet site at...
  • Page 31 Note: This mark applies only to countries within the European Union (EU) and Norway. Appliances are labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union.
  • Page 32 In the United States, IBM has established a return process for reuse, recycling, or proper disposal of used IBM sealed lead acid, nickel cadmium, nickel metal hydride, and other battery packs from IBM Equipment.

  • Page 33: General Information

    Chapter 1: General information The IBM TotalStorage SAN32M-1 switch (referred to in this information unit as the SAN32M-1) provides dynamically switched connections between Fibre Channel servers and devices in a storage area network (SAN) environment. SANs introduce the concept of...

  • Page 34: Switch Management

    Application) and Element Manager applications installed. The management server is a rack-mount unit that provides a central point of control for up to 48 switches or managed IBM products. Operators at remote workstations can connect to the management server through the local SANavigator or EFCM application and associated Element Manager applications to manage and monitor switches controlled by the management server.
  • Page 35 The CLI is not an interactive interface; no checking is done for pre-existing conditions and no prompts display to guide users through tasks. Refer to the EOS Command Line Interface User Manual for IBM TotalStorage Products, GC26-7669. Figure 1 illustrates out-of-band product management. In the figure, the managed product is a fabric switch.

  • Page 36: Out-Of-Band Product Management

    (FMS) that communicates with the IBM System Automation for OS/390 (SA OS/390) operating system. The operating system resides on an IBM System/390 or zSeries 900 Parallel Enterprise Server attached to a director or switch port, and communicates through a FICON channel. Control of connectivity and statistical product monitoring are provided through a host-attached console.

  • Page 37: Error-Detection, Reporting, And Serviceability Features

    Error-Detection, reporting, and serviceability features The switch provides the following error-detection, reporting, and serviceability features: • Light-emitting diodes (LEDs) on switch FRUs and adjacent to Fibre Channel ports that provide visual indicators of hardware status or malfunctions. • System and threshold alerts, event logs, audit logs, link incident logs, threshold alert logs, and hardware logs that display switch, Ethernet link, and Fibre Channel link status at the management server, customer-supplied server (running the EFCM Lite...

  • Page 38: Zoning Feature

    SNMP trap messages. The trap messages indicate operational state changes and failure conditions. NOTE: For more information about SNMP support provided by IBM products, refer to the E/OS SNMP Support Manual. Zoning feature The switch supports a name server zoning feature that partitions attached devices into restricted-access groups called zones.

  • Page 39: Multiswitch Fabrics

    in the same zone can recognize and communicate with each other through switched port-to-port connections. Devices in separate zones cannot communicate with each other. Zoning is configured by authorizing or restricting access to name server information associated with device N_Ports that attach to switch fabric ports (F_Ports).
  • Page 40 • Zoning - In a multiswitch fabric, zoning is configured on a fabric-wide basis, and any change to the zoning configuration is applied to all switches in the fabric. To ensure zoning is consistent across a fabric, the following rules are enforced when two fabrics (zoned or unzoned) join: —...

  • Page 41: Switch Specifications

    — No principal switch - No switch in the fabric is capable of becoming the principal switch. NOTE: At least one director or switch in a multiswitch fabric must be set to either principal or default, making it capable of becoming principal switch. If all directors and switches are set to never principal, all ISLs will segment (Reason code 05).
  • Page 42 Physical Dimensions: characteristics Height: 6.5 centimeters (2.6 inches) Width: 44.5 centimeters (17.5 inches) Depth: 64.1 centimeters (25.2 inches) Weight: 16.8 kilograms (37 pounds) Power Requirements: Input voltage: 100 to 240 VAC Input Frequency: 47 to 63 Hz Input Current: 1.3 amp at 208 VAC Plan for single phase or phase-to-phase connections and 5-ampere dedicated service Airflow Clearance in Rack:...

  • Page 43: Management Server Specifications

    Ethernet LAN connectors (RJ-45 adapters). The first adapter (LAN 1) attaches (optionally) to a public customer intranet to allow access from remote user workstations. The second adapter (LAN 2) attaches to a private LAN segment containing switches or managed IBM products. Chapter 1: General information...
  • Page 44 This section summarizes minimum and recommended hardware specifications for the rack-mount management server. Servers may ship with more enhanced hardware, such as a faster processor, additional random-access memory (RAM), or a higher-capacity hard drive. Minimum Minimum server specifications are: specifications ®...

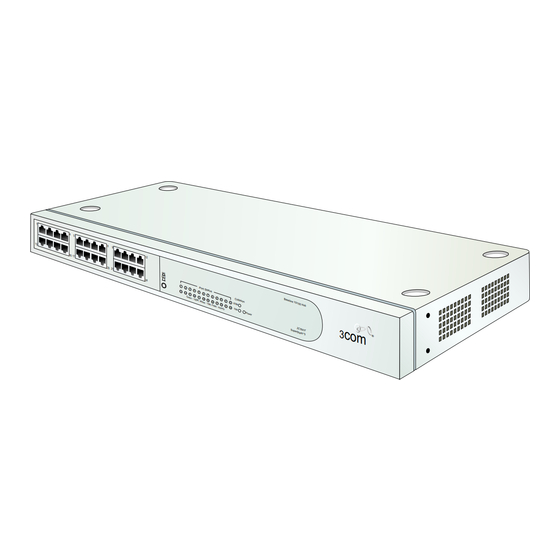

  • Page 45: Ethernet Hub (Optional)

    24-Port Ethernet hub Hubs can be interconnected to provide additional connections as more switches (or other IBM managed products) are installed on a network. Multiple hubs are daisy-chained by attaching RJ-45 Ethernet patch cables and configuring each hub through a medium- dependent interface (MDI) switch.

  • Page 46: Efcm Basic Interface

    EFCM Basic interface The EFCM Basic interface provides a GUI accessed through the Internet (locally or remotely) to manage, monitor, and isolate problems for the Switch. When the interface opens, the default display is the View panel. Task selection tabs appear at the top of the panel, a graphical representation of the switch hardware (front and rear) appears at the right side of the panel, and menu selections (View, Configure, Monitor, Operations, and Help) appear at the left side of the panel.

  • Page 47: Remote Workstation Configurations

    The fault isolation process normally begins with Map 000. Ensure the correct switch is selected for service (if the management server manages multiple switches or other IBM products) by enabling unit beaconing at the failed switch. The amber system error (ERR) LED on the switch front panel blinks when beaconing is enabled.

  • Page 48: Typical Network Configuration (One Ethernet Connection)

    functions are accessed through the LAN and management server. The LAN interface can be: • Part of the dedicated 10/100 Mbps LAN segment that provides access to managed switches. This switch-to-management server LAN connection is part of the equipment installation and is required.

  • Page 49: Minimum Remote Console Hardware Specifications

    Remote Workstation Switch Server Platform Customer Intranet Customer Intranet (10/100 Mbps) (10/100 Mbps) MDIX Port Status Baseline 10/100 9 1 0 Collision Green - 100M, Yellow 11 12 100M - 10M, Flash - Activity 22 2 3 2 3 Power ®...

  • Page 50: Field-Replaceable Units

    Solaris™ Version 2.5.1 or higher operating system. ® — IBM PowerPC microprocessor with a 400 MHz or greater clock speed, or POWER3™ microprocessor with a 400 MHz or greater clock speed, using the AIX Version 4.3.3 or higher operating system.
  • Page 51 Figure 5 Switch (front view) Location Description Initial microcode load (IML) button Ethernet connector SFP fiber optic connectors (32) Port LEDs (64) Error (ERR) LED Power (PWR) LED Figure 6 illustrates the rear of the switch. The rear panel includes two power supplies, six cooling fans, and an RS-232 maintenance port.

  • Page 52: Sfp Transceivers

    Figure 6 Switch (rear view) Location Description Fan module AC IN 1 power receptacle Power switch Fan modules AC IN 0 power receptacle Power switch SFP transceivers A singlemode or multimode fiber-optic cable attaches to a port through a pluggable small form factor (SFP) transceiver. The SFP ®...

  • Page 53: Cooling Fans

    • Shortwave laser (2.125 Gbps) - Shortwave laser transceivers provide connections for transferring 2.125 Gbps data over short distances as follows: — Up to 300 meters through 50-micron multimode fiber. — Up to 150 meters through 62.5-micron multimode fiber. • Longwave laser (1.0625 Gbps) - Longwave laser transceivers provide connections for transferring 1.0625 Gbps data up to 10 kilometers through 9-micron singlemode fiber.

  • Page 54: Initial Machine Load Button

    • Ethernet LAN connector. • Green power (PWR) and amber system error (ERR) LEDs. • Green and amber status LEDs associated with FRUs. • RS-232 maintenance port. Initial Machine load button When the IML button (Figure 5 on page 19) is pressed and held for three seconds, the switch performs an IML that takes approximately 30 seconds and resets the: •...

  • Page 55: Fru Status Leds

    FRU failure. The LED remains illuminated as long as an event is active. The LED extinguishes when the Clear System Error Light function is selected from the Element Manager application. The LED blinks if unit beaconing is enabled. An illuminated ERR LED (indicating a failure) takes precedence over unit beaconing.

  • Page 56: San Management Application

    • The EFC Management Services (EMS) application that runs as a Windows 2000 service and provides an additional user interface to display operational status. • The EFCM Basic interface that provides Internet access to isolate problems for a single switch. •...

  • Page 57: Element Manager Description

    Besides access to director and switch Element Managers, you may configure some features through both your SAN management application and through the Element Manager. You must also enable Element Manager feature permissions for Administrative, Operator, and Maintenance user levels through your SAN management application.
  • Page 58 • Configure extended distance buffering for ports. • Configure Fibre Channel operating parameters for the switch, such as BB_Credit, R_A_TOV, E_D_TOV, preferred domain ID, switch priority, Domain RSCNs, preferred and insistent domain ID, and rerouting delay. • Configure individual ports with a port name describing the node attached to the port.
  • Page 59 • Display information for individual Fibre Channel ports, such as the port name, port number, Fibre Channel address, operational state, type of port, and login data. • Display information on nodes attached to ports. • Display port performance and statistics. •...

  • Page 60: Using The Element Manager

    Status symbols Table 2 Alert Symbol Meaning Green circle Status Bar: All managed products are fully operational and no failures are indicated. Next to Icon: The switch is fully operational and no failures are indicated. Yellow triangle Status Bar: At least one managed product is operating in degraded mode. Next to Icon: A redundant component failed or the switch is operating in degraded mode.

  • Page 61: Hardware View

    • Open Systems. Click this radio button for (non-FICON) Fibre channel environments. • FICON. Typically, select this radio button when attaching an IBM S/390 Parallel Enterprise or zSeries server to the switch and implementing inband director management through a Chapter 1: General information...

  • Page 62: Hardware View

    Fibre Connection (FICON) channel. If switch firmware level is below 6.0 and the FICON Management Server feature is enabled, the default management style will be FICON. The management style cannot be changed to Open Systems with the FICON Management Server feature enabled. NOTE: If firmware versions below 6.0 are installed on the switch, you need to take the switch offline before changing the management style.
  • Page 63 Properties Click to display the Switch Properties dialog box. This dialog box contains the switch name, description, location, and contact person configured through the Configure Identification dialog box. Also included is other product information as detailed in Switch Properties. You can also display this dialog box by double-clicking an area on the illustration in the Hardware View, away from a hardware component.
  • Page 64 register for state change notifications (RSCNs), and Zoning RSCNs). The switch must be offline to configure preferred domain ID. Fabric operating parameters Select this option to display the Configure Fabric Parameters dialog box for setting fabric operating parameters. In this dialog box, you can set buffer-to-buffer credit (BB_Credit) from 1 to 60 (default is 16) and the resource allocation time-out value (R_A_TOV) and error detect time-out value (E_D_TOV) in...
  • Page 65 NOTE: Ports are automatically configured as G_Ports if no device is connected, F_Ports if a device is connected, and E_Ports if a switch is connected. In both styles, you can enable the rerouting delay feature. Addresses FICON management style only. Select from two suboptions for active and stored addresses.
  • Page 66 Date and time Select this option to display the Configure Date and Time dialog box. Use this option to set the current date and time in the switch. When the Periodic Date/Time Synchronization check box is checked, the Date and Time fields are unavailable, and the Management Server date and time periodically synchronizes the switch date and time.
  • Page 67 Enable web server Select this option to place a check mark in the check box to enable the EFCM Basic interface on the switch. Select the option again to remove the check mark and disable the EFCM Basic interface. When disabled, users at remote computers running the client software cannot access the EFCM Basic interface.
  • Page 68 Link incident log The link incident (LIN) log displays the most recent incidents with their date and time, port number, and description of the incident. A link incident can be one of several conditions detected on a fiber optic link. Threshold Alert Log This log provides notifications of threshold alerts.
  • Page 69 Set online state Select this option to display the Set Online State dialog box. Use this dialog box to change the online state of the switch to offline or online. Firmware library Select this option to display the Firmware Library dialog box. This dialog box displays all firmware versions currently installed on the Management Server that can be downloaded to switches.
  • Page 70 Backup & restore configuration Select this option to save the product configuration stored on the switch to the Management Server hard disk or to restore the configuration data from the Management Server. Only a single copy of the configuration is kept on the server. This backup is primarily for single-CTP systems, where a backup is needed to restore the configuration data to a replacement CTP card.
  • Page 71 • Node List • Performance • FRU List Views, selected from the view tabs, display under the tabs in the view panel. Hardware view The Hardware View is a view that displays in the view panel when you open the switch Element Manager. Other views may display, depending on what view you displayed last before closing the application.

  • Page 72: Port List View

    • Port Technology • Block Port • Enable Beaconing • Channel Wrap (FICON management style only) • Swap Ports (FICON management style only) • Diagnostics • Clear Link Incident Alert(s) • Reset Port • Port Binding • Clear Threshold Alert(s) Note that these same options are available when you click a port on the Hardware View and select the port secondary menu from the Product menu on the menu bar.
  • Page 73 • Diagnostics • Channel Wrap (FICON management style only) • Swap Ports (FICON management style only) • Clear Link Incident Alert(s) • Reset Port • Port Binding • Clear Threshold Alert(s) Note that these options are also available when you click a port row and select the Port secondary menu from the Product menu on the menu bar.
  • Page 74 Performance view Select the Performance view tab. This view provides a graphical display of performance for all 32 ports. The top portion of the Performance View displays bar graphs that show the level of transmit/receive activity for each port. This information updates every five seconds.

  • Page 75: Operating Bar And Switch Status

    Note that these same options are also available when you click a port graph, then select the Port secondary menu from the Product menu on the menu bar. The bottom portion of the Performance View displays cumulative statistical information for the port selected in the bar graph. Values are displayed for transmit and receive traffic, class 2 and 3 statistics, operational statistics, and error categories.

  • Page 76: Closing The Element Manager

    Operating bar and switch status (Continued) Table 3 Symbol Status Bar Switch Status Table Text Meaning Yellow Redundant Failure A redundant component has failed, such Triangle as a power supply, and the backup component has taken over operation. Minor Failure A failure occurred which has decreased the switch operational ability.

  • Page 77: Efcm Basic Diagnostics

    • Select Close from the Product menu on the menu bar. • Click the X button at the top right corner of the Element Manager window. • Double-click the icon at the top left corner of the Element Manager window, or right-click the icon and select Close from the menu that displays.

  • Page 78: Snmp Trap Message Support

    — Information about attached devices (nodes). • Operations panel - perform the following operations and maintenance tasks: — Enable port beaconing and perform port diagnostics (internal and external loopback tests). — Reset Fibre Channel ports. — Set the switch online state. —...

  • Page 79: E-Mail And Call-Home Support

    • warmStart - reports that the SNMP agent is reinitializing due to a switch IPL. • authorizationFailure - reports access by an unauthorized SNMP manager. This trap is configurable, and is disabled by default. Switch-specific SNMP traps specified in the custom MIB include Fibre Channel port operational state changes and FRU operational state changes.

  • Page 80: Tools Supplied With The Switch

    Tools supplied with the switch The following tools are supplied with the switch. Use of the tools may be required to perform one or more installation, test, service, or verification tasks. • Fiber-optic wrap plug - An SFP multimode (shortwave laser) or singlemode (longwave laser) wrap plug is required to perform port loopback diagnostic tests.

  • Page 81: Tools Supplied By Service Personnel

    Null modem cable Figure 9 Tools supplied by service personnel The following tools are expected to be supplied by service personnel performing switch installation and maintenance actions. Use of the tools may be required to perform one or more installation, test, service, or verification tasks.
  • Page 82 SAN32M-1 Installation and Service Manual...

  • Page 83: Factory Defaults

    Windows 2000 operating system password (case sensitive) password SAN management application user name (case Administrator sensitive) SAN management application password (case sensitive) password LAN 1 (public interface) IP Address 192.168.0.1 Subnet mask 255.0.0.0 Gateway address 0.0.0.0 © Copyright IBM Corp. 2005...

  • Page 84: Defaults For Reset Configuration (Switch)

    Factory-Set defaults (management server) Table 5 Item Default LAN 2 (private interface) IP Address 10.1.1.1 Subnet mask 255.0.0.0 Gateway address 0.0.0.0 Defaults for reset configuration (switch) Table 6 Configuration Description Default Identification Switch Name NULL string Switch Description “Fibre Channel Switch” Switch Contact “End User Contact (please configure)”...
  • Page 85 Configuration Description Default Switch Operating Preferred Domain Parameters ID - Preferred Preferred Domain Disabled ID - Insistent Rerouting Delay Disabled Domain RSCNs Disabled Management Style Open Systems Fabric Operating Buffer-to-Buffer Parameters Credit R_A_TOV 10 seconds (100 tenths) E_D_TOV 2 seconds (20 tenths) Switch Priority Default Interop Mode...

  • Page 86: Installation Options

    Configuration Description Default Zoning Number of Zone Members Number of Zones Number of Zone Sets Zone Names None Zone Sets Names None Zone Members None Default Zone State Enabled Active Zone Set Disabled State Active Zone Set NULL string Name Installation options The switch is installed in one of three configurations.

  • Page 87: Summary Of Installation Tasks

    Changing the IP address to the customer requested values. • Preparing the switch for the customer or some consultant to configure. IBM does not install the EFCM Basic program, install the management server, or configure the machine for use. Installation task summary Table 7...
  • Page 88 Installation task summary (Continued) Table 7 Task Number and description Required or optional Page Task 8: Configure management server information Required Task 9: Configure Windows 2000 users Required Task 10: Set management server date and time. Required Task 11: Configure the call-home feature (optional). Optional - configure if specified by the customer and a telephone connection is provided.

  • Page 89: Task 1: Verify Installation Requirements

    • A site plan is prepared, configuration planning tasks are complete, planning considerations are evaluated, and related planning checklists are complete. Refer to the IBM TotalStorage Products in a SAN Environment Planning Manual for information. • Fabric and device connectivity are evaluated, and the related planning worksheet is complete.

  • Page 90: Task 2: Unpack, Inspect, And Install The Ethernet Hub (Optional)58

    PC. Connectivity may require installation of the 24-port Ethernet hub. A combination of up to 48 IBM products can be configured and managed on one network, therefore multiple, daisy-chained hubs may be required to provide sufficient port connections.

  • Page 91: Stacked Ethernet Hubs

    1. Remove the backing from the four adhesive rubber pads and apply the pads to the underside of each hub. Ensure the pads are aligned with the scribed circles at each corner. 2. Position the first hub on a table or desktop as directed by the customer.

  • Page 92: Rack-Mount Installation

    c. Using a pencil or other pointed instrument, set the medium- dependent interface (MDI) switch on the top and middle hubs to MDI (in). Set the MDI switch on the bottom hub to MDIX (out). The configuration is shown in Figure 11 on page 60.

  • Page 93: Mounting Bracket Installation (Ethernet Hub)

    1. Secure one mounting bracket to each side of the first hub as shown in Figure 12 on page 61. Use the two brackets and four pan-head Phillips screws (8/32 x 0.5-inch) provided. Figure 12 Mounting bracket installation (Ethernet hub) 2.
  • Page 94 Rack installation (Ethernet hub) Figure 13 4. Repeat step 1 through step 3 for the second and third hubs. 5. To interconnect three hubs: NOTE: To connect two hubs, use step a step c (top and middle hub instructions only). a.

  • Page 95: Task 3: Unpack, Inspect, And Install The Switch

    Save all shipping and packing materials.Ensure that all items on the enclosed shipping list are in each container. 3. If any items are damaged or missing, contact the IBM Quality Hotline toll-free at 1-800-442-6773 within the United States and Canada.

  • Page 96: Rack-Mount Installation

    — Areas with excessive heat, dust, or moisture are avoided. — All planning considerations are met. Refer to the IBM TotalStorage Products in a SAN Environment Planning Manual. 3. Verify that all FRUs are installed as ordered. 4. Verify that the SFP optical transceivers are installed as required for your installation.

  • Page 97: Task 4: Configure Network Information

    LAN-connected. • IBM Flexport Feature - If you have enabled additional port function with the IBM Flexport Feature since the switch shipped from the factory, resetting configuration will return this feature to the factory default of only 16 ports enabled.
  • Page 98 switch is installed on a public LAN (corporate intranet), the gateway address must be changed to the address of the corporate intranet’s local router. Verify the type of LAN installation with the customer’s network administrator. If one switch (or one equipment cabinet) is installed on a dedicated LAN, network addresses do not require change.

  • Page 99: Connection Description Dialog Box

    Accessories, Hyperterminal, and HyperTerminal. The Connection Description dialog box displays. Connection description dialog box Figure 14 6. Type IBM TotalStorage SAN32M-1 switch in the Name field and click OK. The Connect To dialog box displays. Connect to dialog box Figure 15...

  • Page 100: Comn (Com1 Or Com2) Dialog Box

    7. Ensure the Connect using field displays COM1 or COM2 (depending on the serial communication port connection to the switch), and click OK. The COMn dialog box displays (where n is 1 or 2). Figure 16 COMn (COM1 or COM2) dialog box 8.
  • Page 101 Hyperterminal window Figure 17 10. At the C> prompt, type ipconfig and press Enter. The HyperTerminal window displays with configuration information listed as follows: — MAC Address. — IP Address (default is 10.1.1.10, factory preset is 10.1.1.10). — Subnet Mask (default is 255.0.0.0). —...

  • Page 102: Disconnect Confirmation Message Box

    When the new network addresses are configured at the switch, the message Request completed OK displays at the bottom of the HyperTerminal window. 12. Select Exit from the File menu to close the HyperTerminal application. The following message box appears: Disconnect confirmation message box Figure 18 13.

  • Page 103: Task 5: Lan-Connect The Switch

    Task 5: LAN-Connect the switch Connect the switch to the customer-supplied Ethernet LAN segment or the Ethernet hub installed in Task 2: Unpack, inspect, and install the Ethernet hub (optional). If the switch is delivered (with the Ethernet hub and management server) as part of an equipment cabinet, this task and the following two tasks are not required.
  • Page 104 NOTE: The management server and related applications provide a GUI to monitor and manage IBM products, and are a dedicated hardware and software solution that should not be used for other tasks. IBM tests the SAN management application installed on the management server, but does not compatibility test other third-party software.
  • Page 105 5. Connect the management server to the customer-supplied Ethernet LAN segment or Ethernet hub (private LAN interface). To connect the management server: a. As shown in Figure 20 on page 73, connect one end of the Ethernet patch cable (supplied with the management server) to the right RJ-45 adapter (LAN 2) at the rear of the server.

  • Page 106: Lcd Panel During Boot Sequence

    a. As shown in Figure 20, connect one end of a customer- supplied Ethernet patch cable to the left RJ-45 adapter (LAN 1) at the rear of the server. b. Connect the remaining end of the Ethernet cable to the corporate intranet as directed by the customer’s network administrator.

  • Page 107: Task 7: Configure Management Server Password And Network Addresses

    • Central processing unit (CPU) temperature. • Hard disk capacity. • Virtual and physical memory capacity. 10. After successful POST completion, the LCD panel displays a Welcome!! message and all front panel LEDs extinguish. 11. If a POST error or other malfunction occurs, go to MAP 0000: Start on page 183 to isolate the problem.

  • Page 108: Configure Password

    Configure Password To configure a new LCD panel password: 1. At the management server’s LCD panel, press ENTER. The Welcome!! or operational information message changes to the following (Figure 22): Input Password: 0**** LCD panel (password entry) Figure 22 2. Using the button to increment a digit, the button to decrement a digit, the...

  • Page 109: Configure Private Lan Addresses

    Configure private LAN addresses To configure TCP/IP network information for the private LAN connection (LAN 2): 1. At the management server’s LCD panel, press ENTER. The Welcome!! or operational information message changes to the following (Figure 25): Input Password: 0**** LCD panel (password entry) Figure 25 2.

  • Page 110: Configure Public Lan Addresses (Optional)

    Input Netmask: 255.000.000.000 LCD panel (LAN 2 subnet mask) Figure 28 6. Use the arrow keys as described in step 2 to input a new subnet mask, then press ENTER. The following message appears (Figure 29): Save Change? Yes, Save !! Figure 29 LCD panel (save change) 7.

  • Page 111: Lcd Panel (Save Change)

    3. Press ENTER and the following message appears (Figure 31) with the default IP address of 192.168.0.1. Input IP: 192.168.000.001 LCD panel (LAN 1 IP address) Figure 31 4. Use the arrow keys as described in step 2 to input a new IP address, then press ENTER.

  • Page 112: Task 8: Configure Management Server Information

    8. Record the public LAN IP address and subnet mask for reference if the management server hard drive fails and must be restored. Task 8: Configure management server information Configure the computer name and workgroup name for the management server. Configure these parameters from the server’s Windows 2000 operating system, using a LAN-attached PC with standard web browser.

  • Page 113: Vnc Authentication Screen

    VNC authentication screen Figure 35 3. Type the default password and click OK. The Welcome to Windows dialog box displays (Figure 36). NOTE: The default TightVNC viewer password is password. Welcome to windows dialog box Figure 36 4. Click the Send Ctrl-Alt-Del button at the top of the window to log on to the management server desktop.

  • Page 114: Configure Management Server Names

    Log on to windows dialog box Figure 37 5. Type the default Windows 2000 user name and password and click OK. The management server’s Windows 2000 desktop opens and the SANavigator Log In or EFCM Log In dialog box displays (Figure 38).

  • Page 115: Control Panel Window

    1. At the Windows 2000 desktop, click Start at the left side of the task bar (bottom of the desktop), then select Settings, then Control Panel. The Control Panel window displays (Figure 39 on page 83). Control panel window Figure 39 2.

  • Page 116: System Properties Dialog Box (Network Identification Tab)

    System properties dialog box (network identification tab) Figure 40 4. Click Properties. The Identification Changes dialog box displays (Figure 41). Identification Changes Dialog Box Figure 41 SAN32M-1 Installation and Service Manual...

  • Page 117: Configure Gateway And Dns Server Addresses

    5. At the Computer Name field, change the name to MGMTSERVER, at the Workgroup field, change the name to WORKGROUP, then click OK. The dialog box closes. 6. Record the computer and workgroup names for reference if the management server hard drive fails and must be restored. 7.

  • Page 118: Local Area Connection 2 Status Dialog Box

    Figure 43 Local area connection 2 status dialog box 4. Click Properties. The Local Area Connection 2 Properties dialog box displays (Figure 44). Local area connection 2 properties dialog box Figure 44 5. Double-click the Internet Protocol (TCP/IP) entry. The Internet Protocol (TCP/IP) Properties dialog box displays (Figure 45 page 87).

  • Page 119: Internet Protocol (Tcp/Ip) Properties Dialog Box

    Internet Protocol (TCP/IP) properties dialog box Figure 45 6. The Use the following IP address radio button is enabled and the IP address and Subnet mask fields display network information configured while performing Task 7: Configure management server password and network addresses on page 75.

  • Page 120: Task 9: Configure Windows 2000 Users

    13. Reboot the management server: a. At the Windows 2000 desktop, click Start at the left side of the task bar (bottom of the desktop), then select Shut down. The Shut Down Windows dialog box appears. b. At the Shut Down Windows dialog box, select the Restart option and click OK to reboot the server.

  • Page 121: Change Default Administrator Password

    3. The Guest user name is a built-in account in the Windows 2000 operating system and cannot be deleted. The srvacc account is for field service users and must not be modified or deleted. Change default administrator password To change the administrator password from the default (password) to a customer-specified password: 1.

  • Page 122: Add A New User

    Figure 48 Change password dialog box 3. At the Old Password field, type the old password. At the New Password and Confirm New Password fields, type the new password. NOTE: The New Password and Confirm New Password fields are case-sensitive. 4.

  • Page 123: Add New User Wizard (First Window)

    Add new user wizard (first window) Figure 49 2. Type the appropriate new user information in the User name, Full name, and Description fields, then click Next. The second window of the Add New User wizard displays (Figure 50). Figure 50 Add New User Wizard (Second Window) 3.

  • Page 124: Change User Properties

    Figure 51 Add new user wizard (third window) 4. Based on the level of access to be granted, select the Standard user, Restricted user, or Other radio button. If the Other radio button is selected, choose the type of access from the adjacent list box. 5.
  • Page 125 EFCSERVER\srvacc properties dialog box (general tab) Figure 52 2. Type the appropriate new user information in the User name, Full name, and Description fields, then click the Group Membership tab. The EFCSERVER\srvacc Properties dialog box displays with the Group Membership tab selected (Figure 53).

  • Page 126: Task 10: Set Management Server Date And Time

    3. Based on the level of access to be changed, select the Standard user, Restricted user, or Other radio button. If the Other radio button is selected, choose the type of access from the adjacent list box. 4. Click OK. The new user information is added and the EFCSERVER\srvacc Properties dialog box closes.

  • Page 127: Date/Time Properties Dialog Box

    Date/Time properties dialog box Figure 54 3. At the Date/Time Properties dialog box, click the Time Zone tab. The dialog box displays with the Time Zone page open. Date/Time properties dialog box, time zone Figure 55 4. To change the time zone: a.

  • Page 128: Task 11: Configure The Call-Home Feature (Optional)

    c. Click Apply. Record time zone and daylight savings information for reference if the EFC server hard drive fails and must be restored. 5. At the Date/Time Properties dialog box, click the Date & Time tab. The dialog box displays with the Date & Time page open. 6.

  • Page 129: Task 12: Assign User Names And Passwords

    Call Home configuration dialog box 3. At the Call Center Phone Number field, enter the telephone number for IBM technical support. Include necessary information, such as the country code, area code, or any prefix required to access a telephone line outside the facility.
  • Page 130 Main window (SANavigator or EFCM) Figure 57 4. Select Users from the SAN menu. The SANavigator Server Users or EFCM Server Users dialog box displays (Figure 58 on page 99). SAN32M-1 Installation and Service Manual...

  • Page 131: Sanavigator Or Efcm Server Users Dialog Box

    Figure 58 SANavigator or EFCM server users dialog box 5. Click Add. The Add User dialog box displays (Figure 59). Add user dialog box Figure 59 Chapter 2: Installation tasks...
  • Page 132 6. Enter information in fields as directed by the customer: • Name - click in this field and type a new user name up to 16 alphanumeric characters in length. Control characters and spaces are not valid. The user name is case-sensitive. •...

  • Page 133: Discover Setup Dialog Box

    Task 13: Configure the switch to the management application To manage a new switch, it must be identified to and discovered by the SAN management application. To identify the new switch: 1. At the SAN management application (SANavigator or EFCM main window), select the Setup option from the Discover menu.

  • Page 134: Domain Information Dialog Box (Ip Address Page)

    Figure 61 Domain Information Dialog Box (IP Address Page) 3. Type a switch description (SAN32M-1, for example) in the Description field. 4. Type the switch IP address (determined by the customer’s network administrator) in the IP Address field. 5. Type the switch subnet mask (determined by the customer’s network administrator) in the Subnet Mask field.

  • Page 135: Task 14: Record Or Verify Management Server Restore Information

    Task 14: Record or verify management server restore information Configuration information must be recorded to restore the management server in case of hard drive failure. Refer to Appendix C, Restore EFC servers for instructions. To record or verify management server configuration information: 1.

  • Page 136: System Properties Dialog Box (General Tab)

    b. Verify if the management server is set to automatically adjust the clock for daylight savings time changes. 4. Record the Product ID number as follows: a. At the Windows 2000 desktop, click Start at the left side of the task bar, then select Settings, then Control Panel.

  • Page 137: Task 15: Verify Switch-To-Management Server Communication

    Task 15: Verify switch-to-management server communication Communication must be verified between the switch and server (SAN management and Element Manager applications). To verify switch-to-server communication: 1. At the SAN management application’s main window (physical map or product list), inspect the shape and color of the status symbol associated with the switch product icon.

  • Page 138: Task 16: Configure Pfe Key (Optional)

    b. If switch operation appears degraded or a switch failure is indicated (FRU alert symbols and a yellow triangle or red diamond at the status bar), go to MAP 0000: Start MAP page -183 to isolate the problem. Figure 63 Switch hardware view Task 16: Configure PFE Key (optional) Perform this task to display or install operating features that are...

  • Page 139: Configure Feature Key Dialog Box

    • Flexport Technology - A Flexport Technology switch is delivered at a discount with only eight ports enabled. When additional port capacity is required, the remaining ports are enabled (in eight-port increments) through purchase of this feature. • SANtegrity binding - This feature enhances security in SANs with a large and mixed group of fabrics and attached devices.

  • Page 140: Enable Feature Key Dialog Box

    4. Type the PFE key (case-sensitive xxxx-xxxx-xxxx-xx format) and click OK. The Enable Feature Key dialog box displays. Enable feature key dialog box Figure 66 5. Click Activate. Because the switch performs an IPL when the PFE key is enabled, a Warning dialog box displays. Warning dialog box Figure 67 6.

  • Page 141: Task 17: Configure Management Server (Optional)

    NOTE: PFE keys are encoded to work with the serial number of the installed switch only. Record the key to re-install the feature if required. If the switch fails and must be replaced, obtain new PFE keys from IBM. Please have the serial numbers of the failed and replacement switches, and the old PFE key number or transaction code.

  • Page 142: Configure Fms

    To configure the open systems management server (Open Systems Management Style only): 1. At the Hardware View for the selected switch, click the Configure icon at the navigation control panel and select Management Server from the Configure menu. The Configure Open Systems Management Server dialog box displays.

  • Page 143: Configure Ficon Management Server Dialog Box

    Configure FICON management server dialog box Figure 69 2. Enable or disable the following options by selecting (clicking) the associated check box: — Switch Clock Alert Mode - this option enables or disables a warning message that appears if the switch is set to periodically synchronize date and time with the management server (Task 18: Set switch date and time...

  • Page 144: Santegrity™Binding Features

    Code Page Name Code Page Japan 00281 Spain/Latin America 00284 United Kingdom 00285 France 00297 International #5 00500 4. Click Activate to enable changes and allow or prohibit FICON host control. SANtegrity™binding features SANtegrity Binding includes a set of features that enhance security in SANs (Storage Area Networks) that contain a large and mixed group of fabrics and attached devices.

  • Page 145: Switch Binding

    To enable, disable, and configure this option, refer to the Fabric information Binding section of Chapter 8, “Optional Features,” in the EFC Manager Software Release 8.3 User Manual for IBM TotalStorage Products. Switch binding This feature is managed through the Switch Binding submenu options available on the element manager Configure menu.
  • Page 146 • WWNs of devices connected to F_Ports (F_Port connection policy). The WWN is the WWN of the attached device's port. • WWNs of switches connected to E_Ports (E_Port connection policy). The WWN is the WWN of the attached switch. • WWNs of devices connected to F_Ports and switches connected to E_Ports (all-ports connection policy).

  • Page 147: Switch Binding State Change Dialog Box

    Switch binding state change dialog box Figure 70 2. Perform one of the following steps: • To disable Switch Binding (when a checkmark appears in the Enable Switch Binding check box), click the Enable Switch Binding check box to remove the checkmark, then click Activate.

  • Page 148: Switch Binding Membership List Dialog Box

    5. Edit the Switch Membership List through the Switch Binding Membership List dialog box to add or remove switches and devices that are allowed to connect with the switch. Refer to Editing the switch membership list for a procedure for editing the Switch Membership List.
  • Page 149 3. To prohibit connection to a switch port from a WWN currently in the Membership List, click the WWN or nickname in the Membership List, then click the Remove button. The WWN or nickname will move to the Node List panel. WWNs can only be removed from the fabric if any of the following is true: •...
  • Page 150 • Enabling Enterprise Fabric Mode automatically enables Switch Binding. • You cannot disable Switch Binding if Enterprise Fabric Mode is enabled. • If Enterprise Fabric Mode is enabled and the switch is online, you cannot disable Switch Binding. However, if Enterprise Fabric Mode is disabled, you can disable Fabric Binding, Switch Binding, or both.

  • Page 151: Flexport

    Flexport The SAN32M-1 can be purchased without all Fibre Channel ports enabled. The optional Flexport feature is a hardware port expansion kit that allows customers to upgrade switch capacity on demand in eight-port increments. Flexport kits are available to upgrade the SAN32M-1 from 16 to 24 ports, or from 24 to 32 ports.

  • Page 152: Configure Open Trunking Dialog Box

    Candidate links for rerouting flow are identified and maintained automatically. This means that flow may be rerouted onto a link that goes to a different adjacent switch, as long as that link is on the least cost/shortest path to the destination domain ID. To install and enable this option, select the Configure Feature Key option under the element manager’s Configure menu.
  • Page 153 3. Set the Congestion Thresholds for ports as percentages of link bandwidths, in the range of 1% through 99%. These thresholds are used only when a port becomes an ISL. When the link’s traffic load becomes greater than this percentage, the link is seen as “congested”...
  • Page 154 • Back Pressure. Click this check box to display a checkmark and enable this option. If enabled, a back pressure entry will be made to the Event Log and an SNMP trap will be generated if trap recipients are configured through the Configure SNMP dialog box.
  • Page 155 • Set all to Default - Adds checkmarks to all check boxes in this column and sets all cells of Threshold % column to default values. • Clear All - Clears all check boxes in this column and restores values in cells of Threshold % column with previous values. Threshold % Right click in the column to display these options: •...

  • Page 156: Open Trunking Log

    Open trunking log This log, available from the SAN management application Product View Logs menu, (Figure 73) provides details on flow rerouting that is occurring through switch ports. Open trunking log Figure 73 • Date and Time - Date and Time that action occurred. •...

  • Page 157: Set Date And Time Manually

    The switch date and time can be set manually, or set to be periodically updated by the SAN management application (the switch and SAN management application synchronize at least once daily). Figure 74 Configure Date and Time Dialog Box Set date and time manually To set the switch date and time manually: 1.

  • Page 158: Periodically Synchronize Date And Time

    Periodically synchronize date and time To set the switch to periodically synchronize date and time with the SAN management application: 1. Click the Periodic Date/Time Synchronization check box to select the option (check mark in the box). The Date and Time fields are greyed out and not selectable.

  • Page 159: Configure Switch Identification

    • Configure switch binding. • Configure switch ports. • Configure logical port addresses (FICON Management Style only). • Configure SNMP trap message recipients. • Configure threshold alerts. • Configure OpenTrunking. • Configure and enable e-mail notification. • Configure and enable call-home event notification. Configure switch identification Perform this procedure to configure the switch name, description, location, and contact person for the SAN management application.

  • Page 160: Task 20: Configure Switch Operating Parameters

    If the switch is installed on a public LAN, the name should reflect the switch’s Ethernet network DNS host name. For example, if the DNS host name is SAN32M-1.IBM.com, the name entered in this dialog box should be SAN32M-1. b. Click Set Name as Nickname and add a check mark if you want to use the name in the name field as the nickname for the switch’s WWN.

  • Page 161: Switch Parameters

    c. When the warning box displays asking you to confirm the offline state, click OK. 2. Select Switch Parameters from the Operating Parameters submenu (Configure menu tab). 3. The Configure Switch Parameters dialog box displays. Configure switch parameters dialog box Figure 77 NOTE: Ordinarily, you do not need to change values in this dialog box from their defaults.
  • Page 162 Preferred NOTE: To change this value, you must first set the switch offline. Select Set Online State from the Maintenance menu to display the Set Online State dialog box, then click the Set Offline button. Be sure to set the switch back online after you change this value.

  • Page 163: Task 21: Configure Fabric Operating Parameters

    fabric topology that creates a new path (for example, a new switch is added to the fabric), frames may be routed over this new path if its hop count is less than a previous path with a minimum hop count. This may result in frames being delivered to a destination out of order since frames sent over the new, shorter path may arrive ahead of older frames still in route over the older path.

  • Page 164: Fabric Parameters

    c. When the warning box displays asking you to confirm the offline state, click OK. 2. Select Fabric Parameters from the Operating Parameters submenu (Configure menu tab). 3. The Configure Fabric Parameters dialog box displays. Configure fabric parameters dialog box Figure 78 NOTE: Ordinarily, you do not need to change values in this dialog box from their defaults.
  • Page 165 R_A_TOV Configure resource allocation time-out value (R_A_TOV) in tenth-of-a-second increments. This variable works with the error detect time-out value (E_D_TOV) variable to control the switch’s behavior when an error condition occurs. Resources are allocated to a circuit when errors are detected and are not released for reuse until the time set by the R_A_TOV value expires.

  • Page 166: Configure Ports (Open Systems Mode)

    IBM switches and switches that are operating in McDATA Fabric 1.0 mode. • Open Fabric 1.0. Select this mode if the fabric contains IBM directors and switches, as well as other open-fabric compliant switches. Select this mode for managing heterogeneous fabrics.

  • Page 167: Configure Ports Dialog Box (Open Systems Management Style)

    a. Select a blank Name field and type a descriptive port name of 24 or fewer alphanumeric characters. Use a name that reflects the device connected to the port. b. Click the Blocked check box to block or unblock a port. A check mark in the box indicates the port is blocked.

  • Page 168: Configure Ports (Ficon Mode)

    • WWN Binding Click this check box to display a check mark and enable WWN binding for the port. This allows only a specific device to attach to the port. This device is specified by the WWN or nickname entered into the Bound WWN column. With the check box cleared, any device can attach to the port even if a WWN or nickname is specified in the Bound WWN column.

  • Page 169: Configure Ports Dialog Box (Ficon Management Style)

    Figure 80 Configure ports dialog box (FICON management style) a. Click the 10-100 km check box to enable extended distance buffering for a port. A check mark in the box indicates extended distance operation up to 100 kilometers (through repeaters) is enabled. b.

  • Page 170: Configure Port Addresses (Ficon Mode)

    nickname will have exclusive attachment to the port if WWN Binding is enabled. If a valid WWN or nickname is not entered in this field, but the WWN Binding check box is checked (enabled), then no devices can connect to the port. If you enter a WWN or nickname in this field and do not place a check in the WWN Binding checkbox, the WWN or nickname will be stored, and all devices can connect to the port.

  • Page 171: Configure Addresses - Active Dialog Box

    Configure addresses - active dialog box Figure 81 a. Select a blank Name field and type a descriptive port name of 24 or fewer alphanumeric characters. Use a name that reflects the device connected to the port. b. Click the Blocked check box to block or unblock a port. A check mark in the box indicates the port is blocked.

  • Page 172: Save Address Configuration As Dialog Box

    • Prohibit or allow connections for an entire row (row 0C is prohibited in the Configure Addresses - Active dialog box example). • Prohibit or allow connections for all switch ports. • Block or unblock all switch ports. • Clear connectivity restrictions for all switch ports. 3.

  • Page 173: Configure Snmp Trap Message Recipients

    Configure SNMP trap message recipients Perform this procedure to configure community names, write authorizations, and network addresses and for up to 12 SNMP trap message recipients. A trap recipient is a management workstation that receives notification (through SNMP) if a switch event occurs. To configure SNMP trap recipients: 1.

  • Page 174: Configure And Enable E-Mail Notification

    e. Type a decimal port number in the associated UDP Port Number field to override the default. 2. To enable or disable transmission of authorization trap messages to unauthorized management workstations trying to access SNMP information through the management server, select the Enable Authorization Traps check box.

  • Page 175: Configure And Enable Ethernet Events

    a. Type the IP address or DNS host name of the SMTP server in the SMTP Server field. Use 64 alphanumeric characters or less. It is recommended the IP address be used. b. For the E-Mail Addresses fields, type the e-mail addresses of up to five recipients who should be informed of system events.

  • Page 176: Configure And Enable Call-Home Event Notification

    Configure Ethernet events dialog box Figure 85 3. Click the Enable Ethernet Events check box. A check mark appears in the check box to indicate Ethernet events are enabled. 4. At the Ethernet Timeout field, type a value between 10 through 120 minutes.

  • Page 177: Configure Threshold Alerts

    3. Click the Enable Call Home Event Notification check box. A check mark appears in the check box to indicate call-home event notification is enabled. NOTE: The enable function must also be activated for each switch through the SAN32M-1 Element Manager application. Call-home event notification can be active for some switches and inactive for others.

  • Page 178: Procedures

    — Percent traffic capacity utilized. This is the percent of the port’s throughput capacity achieved by the measured throughput. This setting constitutes the threshold value. For example the value of 50 means that the port’s threshold is reached when throughput is 50% of capacity. —...

  • Page 179: New Threshold Alerts Dialog Box - First Screen

    If alerts are configured, they will display in table format showing the name of the alert, type of alert (Rx, Tx, or Rx or Tx), and alert state (inactive or active). 2. Click New The New Threshold Alert dialog box displays. New threshold alerts dialog box - first screen Figure 88 3.

  • Page 180: New Threshold Alerts Dialog Box - Second Screen

    New threshold alerts dialog box - second screen Figure 89 6. Enter a percentage from 1 through 100 for % utilization. When throughput reaches this percentage of port capacity, a threshold alert will occur. 7. Enter the amount of cumulative minutes in which the % utilization should exist during the notification interval before an alert is generated.

  • Page 181: New Threshold Alerts Dialog Box - Third Screen

    New threshold alerts dialog box - third screen Figure 90 10. Either select Port Type or Port List. • If you select Port Type, selecting either E_Ports or F_Ports will cause this alert to generate for all ports configured as E_Ports or F_Ports respectively.

  • Page 182: New Threshold Alerts Dialog Box - Summary Screen

    New threshold alerts dialog box - summary screen Figure 91 12. Select Finish. The Configure Threshold Alerts dialog box appears listing the name, type, and state of the alert that you just configured. 13. At this point, the alert is not active. To activate the alert, select the alert information that displays in the Configure Threshold Alerts table and select Activate.
  • Page 183 Modify an alert Use the following steps to modify an existing threshold alert configuration. 1. Select Threshold Alerts from the Configure menu. The Configure Threshold Alerts dialog box displays. 2. Select the alert that you want to modify by clicking the alert information in the table.

  • Page 184: Task 22: Configure Open Trunking

    Because the features are configured at the SAN management application, call-home and e-mail notification are enabled for multiple switches or IBM managed products. To test remote notification: 1. Close the Hardware View for the switch and return to the Product View by clicking the Close icon at the navigation control panel.

  • Page 185: Task 24: Back Up Configuration Data

    2. At the Product View, click Maintenance at the navigation control panel and select Test Remote Notification from the Maintenance menu. The Test Remote Notification dialog box displays. Figure 93 Test remote notification dialog box 3. Select the Call Home and E-Mail check boxes to perform applicable tests.
  • Page 186 SAN management configuration data (switch definitions, user names and passwords, switch date and time, port configurations, operating parameters, SNMP recipients, and e-mail recipients). • Log files (SAN management application logs and IBM TotalStorage SAN32M-1 switch element manager application logs). •...

  • Page 187: Tightvnc Network Error Message

    3. If the Hardware View is open, close the view and return to the Products View by clicking close (X) at the upper right corner of the window. 4. Close the SAN management application by selecting Exit from the Product menu. 5.
  • Page 188 c. After the management server reboots, click Login again. The VNC Authentication screen displays. d. Type the default password and click OK. The Welcome to Windows dialog box displays. NOTE: The default TightVNC viewer password is password. e. Click the Send Ctrl-Alt-Del button at the top of the window to log on to the management server desktop.

  • Page 189: Task 25: Configure The Switch From The Efcm Basic Interface (Optional)

    Task 25: Configure the switch from the EFCM Basic Interface (optional) Perform these procedures to configure the product from the EFCM Basic Edition interface. A browser-capable PC with Internet or Ethernet LAN access is required. To open the interface: 1. Connect the Ethernet patch cable (supplied with the product) to the RJ-45 connector (labelled 10/100) at the front panel.

  • Page 190: Configure Product Identification

    — Security - includes SANtegrity authentication (settings, access control list, and remote authentication dial-in user service (RADIUS) server support), Enterprise Fabric Mode, and SANtegrity binding (fabric, switch, and port binding). — Interswitch links - includes OpenTrunking, preferred path, and interswitch link (ISL) port fencing. Configure product identification Perform this procedure to configure the product identification.

  • Page 191: Configure Date And Time

    2. Click OK to save and activate changes. Configure date and time Perform this procedure to configure product date and time. 1. Select Switch and Date & Time from the Configure menu at any view. The Date Time View displays (Figure 98).

  • Page 192: Parameters View

    a. At the Insistent Domain ID field, check (enable) or uncheck (disable) the parameter. When enabled, the value configured in the Preferred Domain ID field becomes the active domain ID when the fabric initializes. Parameters View Figure 99 b. At the Rerouting Delay field, check (enable) or uncheck (disable) the parameter.

  • Page 193: Configure Fabric Parameters

    f. At the Zone Flexpars: Isolate Fabric RSCNs on zone activation changes field, check (enable) or uncheck (disable) the parameter. When enabled, zone FlexPars isolate and prevent fabric-format RSCNs from propagating to devices in zones that are not impacted. g. At the Preferred Domain ID field, type a value between 1 through 31.

  • Page 194: Fabric Parameters View

    Fabric Parameters View Figure 100 a. At the R_A_TOV field, type a value between 10 through 1200 tenths of a second (one through 120 seconds). Ten seconds (100) is the recommended value. The R_A_TOV value must exceed the E_D_TOV value. b.

  • Page 195: Configure Network Information

    • McDATA Fabric 1.0 - Select this option if the product is fabric-attached only to other IBM directors or switches operating in McDATA fabric mode. • Open Fabric 1.0 - Select this option (default) for managing heterogeneous fabrics and if the product is fabric-attached to IBM directors or switches and other open-fabric compliant switches.

  • Page 196: Network View

    Figure 101 Network View a. At the IP Address field, type the new value as specified by the network administrator (default is 10.1.1.10). b. At the Subnet Mask field, type the new value as specified by the network administrator (default is 255.0.0.0). c.

  • Page 197: Configure Basic Port Information

    e. Click close (X) at the upper right corner of the DOS window to close the window and return to the Windows desktop. 4. At the product front panel, press and hold the IML/RESET button for ten seconds to perform a power-on reset (POR). 5.

  • Page 198: Configure Port Bb_Credit

    Basic Information View Figure 102 d. Select from the drop-down list in the Type column to configure the port type. Available selections are fabric port (F_Port), expansion port (E_Port), generic port (G_Port), generic mixed port (GX_Port), and fabric mixed port (FX_Port). e.

  • Page 199: Configure Port Npiv

    default value is 12 credits per port. Perform this procedure to configure port receive BB_Credit: 3. Set all or a subset of user-specified ports offline. Refer to Set the switch online or offline on page 334 or Block and unblock ports page 335 for instructions.

  • Page 200: Snmp View

    b. Select the appropriate Fibre Alliance management information base (FA MIB) from the FA MIB Version drop-down list. Valid selections are FA MIB Version 3.0 or FA MIB Version 3.1. SNMP View Figure 103 c. Click (check) the Enable Authentication Traps check box to enable transmission of SNMP trap messages to recipients.

  • Page 201: Enable Cli

    2. Click OK to save and activate changes. Enable CLI Perform this procedure to toggle (enable or disable) the state of the product’s command line interface. To change the CLI state: 1. Select CLI from the Configure menu at any view. The CLI View displays (Figure 104).

  • Page 202: Configure Ssl Encryption

    1. Select OSMS from the Configure menu at any view. The OSMS View displays (Figure 105). OSMS View Figure 105 2. Perform one of the following: • Click Enable to activate OSMS. • Click Disable to deactivate OSMS. 3. Click (check) the Enable Host Control check box to activate host control of the product.

  • Page 203: Install Pfe Keys (Optional)

    • Click Enable to activate software SSL. • Click Disable to deactivate software SSL. SSL View Figure 106 4. To define the expiration period (in days) of the digital certificate, type a value between 30 and 3650 in the Expires in field. The default is 365 days.
  • Page 204 Record the key to re-install the feature if required. If the switch fails and must be replaced, obtain new PFE keys from IBM. Please have the serial numbers of the failed and replacement switches, and the old PFE key number or transaction code.

  • Page 205: Maintenance Feature Installation View

    Figure 107 Maintenance Feature Installation View 2. Type the key in the Feature Key field and click Update. The interface refreshes and indicates the update changes in the Feature panel. NOTE: When OK is selected, all features are updated with new features. 3.

  • Page 206: Configure Security

    4. After the product reset, the message Feature installation complete. Click here to login. displays. 5. Click here to login and start a new EFCM Basic Edition session. The Enter Network Password dialog box displays. Configure security This section describes optional product security features configured through Security menu selections.

  • Page 207: Configure Interswitch Links

    • Fabric binding - Use the Fabric Binding View to lock parameters of a fabric in accordance with the user configuration. Fabric binding creates a membership list of element (director or switch) Domain_IDs and worldwide names (WWNs) that can communicate with the product. •...

  • Page 208: Task 26: Cable Fibre Channel Ports

    Task 27: Connect Switch to a Fabric Director (Optional) To provide Fibre channel connectivity between public devices and fabric-attached devices, connect the switch to an expansion port (E_Port) of an IBM Director. The switch port to director port connection is called an interswitch link (ISL). In addition: •...
  • Page 209 1. Ensure the switch is defined to the SAN management application (defined while performing Task 13: Configure the switch to the management application on page -101) 2. Ensure the preferred domain ID for the switch is unique and does not conflict with the ID of another switch participating in the fabric.

  • Page 210: Port Properties Dialog Box

    Port Properties Dialog Box Figure 108 NOTE: If the Open Trunking feature is installed and additional item will appear in the Port Properties dialog box, called Congested Threshold %. This field displays the active congested threshold percentage currently configured in the Configure Open Trunking dialog box. 9.

  • Page 211: Chapter 3 Diagnostics

    IP address 10.1.1.10 IP address (factory preset) 10.1.1.10 Subnet mask 255.0.0.0 Gateway address 0.0.0.0 Quick start Table 10 lists the MAPs in this chapter. Fault isolation normally begins at MAP 0000: Start MAP on page 183. © Copyright IBM Corp. 2005...

  • Page 212: Map Summary

    However, Table 11 lists the event codes and the corresponding MAPs. It is a quick start, if an event code is readily available. MAP summary Table 10 Page MAP 0000: Start MAP MAP 0100: power distribution analysis MAP 0200: POST, reset, or IPL failure analysis MAP 0300: console application problem determination MAP 0400: loss of console communication MAP 0500: fan and CTP card failure analysis...
  • Page 213 Event Codes versus maintenance action (Continued) Table 11 Event Explanation Action Code Switch is isolated. Go to 0700. E_Port connected to an unsupported switch. Go to 0700. Fabric Init Error Perform data collection and contact service representative. ISL frame delivery error threshold Perform data collection and contact service representative.
  • Page 214 Event Codes versus maintenance action (Continued) Table 11 Event Explanation Action Code Third cooling fan recovered. No action required. Fourth cooling fan recovered. No action required. Power-up diagnostic failure. Go to 0200. CTP card reset. No action required. Firmware fault occurred. Go to 0200.

  • Page 215: Map 0000: Start Map

    Event Codes versus maintenance action (Continued) Table 11 Event Explanation Action Code Not operational primitive sequence (NOS) received. Go to 0600. Primitive sequence timeout. Go to 0600. Invalid primitive sequence received for link state. Go to 0600. SBAR module anomaly detected. No action required.
  • Page 216 Prior to fault isolation, acquire the following information from the customer: • A system configuration drawing or planning worksheet that includes the EFC Server, customer-supplied server (accessing the EFCM Basic interface or running the EFCM Lite application), switches, other products, and device connections. •...
  • Page 217 Did the EFC Server lock up or crash and: • Display an application warning or error message, or • Not display an application warning or error message, or • Display a Dr. Watson for Windows 2000 dialog box? ↓ An EFC Server application problem is indicated. Event codes are not recorded.
  • Page 218 Shut Down Windows Dialog Box Figure 109 b. Select the Shut Down option from the list box and click OK. The EFC Server powers down. c. Wait approximately 30 seconds and press the power ( ) button on the liquid crystal display (LCD) panel to power on the server and perform power-on self-tests (POSTs).

  • Page 219: Lcd Panel During Boot Sequence

    3. After a few seconds, the LCD panel displays the following message pertaining to boot sequence selection (Figure 110): Boot from LAN? Press <Enter> LCD panel during boot sequence Figure 110 4. Ignore the message. After ten seconds, the server performs the boot sequence from the basic input/output system (BIOS).

  • Page 220: Efc Manager Product View

    EFC manager product view Figure 111 Did the Product View display and does the EFC Manager application appear operational? ↓ An EFC Server hardware problem is indicated. Event codes are not recorded. Go to MAP 0800: server hardware problem determination on page 283.
  • Page 221 The grey square indicates the EFC Server cannot communicate with the switch because: • The switch-to-EFC Server Ethernet link failed. • Ac power distribution in the switch failed. • The control processor (CTP) card failed. Does a grey square appear at the alert panel and as the background to the icon representing the switch reporting the problem? ↓...
  • Page 222 Does a red diamond with yellow background (failure indicator) appear at the alert panel and as the background to the icon representing the switch reporting the problem? ↓ Go to step Double-click the icon representing the switch reporting the problem. The Hardware View displays.
  • Page 223 ↓ Go to step Click the icon representing the switch reporting the problem. The Hardware View displays. At the Hardware View: • Observe whether the SAN32M-1 Status table is yellow and switch status is Minor Failure or Not Installed. • Inspect FRUs for a blinking red and yellow diamond (failed FRU indicator) that overlays the FRU graphic.

  • Page 224: Port Properties Dialog Box

    ↓ Go to step Inspect the port state and LED status for all ports with an attention indicator. a. At the Hardware View, click the port graphic with the attention indicator. The Port Properties dialog box displays. b. Inspect the Beaconing and Operational State fields. Port properties dialog box Figure 112 NOTE: If the Open Trunking feature is installed and additional item will...
  • Page 225 Port beaconing is enabled. a. Consult with the customer and next level of support to determine the reason port beaconing is enabled. b. Disable port beaconing: 1. At the Hardware View, right-click the port graphic. A pop-up menu appears. 2. Click Enable Beaconing. The check mark disappears from the box adjacent to the option, and port beaconing is disabled.
  • Page 226 Figure 113 Link incident log If a link incident occurred, the affected port number is listed with one of the following messages. Link interface incident - implicit incident. Link interface incident - bit-error threshold exceeded. Link failure - loss of signal or loss of synchronization. Link failure - not-operational primitive sequence (NOS) received.
  • Page 227 Obtain event codes from the Event Log. If multiple event codes are found, note all codes and associated severity levels. Record the date, time, and listed sequence, and determine if the codes are related to the reported problem. Begin fault isolation with the most recent event code with the highest severity level.
  • Page 228 Is the power switch set to the Power On (1) position? ↓ Go to step Power on the switch. Inspect the switch for indications of being powered on, such as: • At the front panel, an illuminated PWR or ERR indicator. •...
  • Page 229 ↓ A power distribution problem is indicated. Go to step 23 obtain event codes. If no event codes are found, go to 0100: power distribution analysis on page 204. A faulty PWR LED is indicated, but Fibre Channel port operation is not disrupted.
  • Page 230 Check FRUs (port SFPs, fans, power supplies) for failure symptoms. Is the amber LED adjacent to a port SFP illuminated? ↓ A port SFP failure is indicated. Go to step 23 to obtain event codes. If no event codes are found, go to MAP 0600: port failure and link incident analysis on page 247.

  • Page 231: Username And Password Required Dialog Box

    Boot the web browser PC. a. Power on the PC in accordance with the instructions delivered with the PC. The Windows desktop appears. b. Launch the PC browser application by double-clicking the appropriate icon at the Windows desktop. c. At the Netsite field (Netscape Navigator) or Address field (Internet Explorer), type http://xxx.xxx.xxx.xxx, where xxx.xxx.xxx.xxx is the IP address of the switch (obtained in step...
  • Page 232 • The switch-to-PC Internet link could not be established. • AC power distribution in the switch failed, or AC power was disconnected. • The switch’s CTP card failed. Continue. Ensure the switch reporting the problem is connected to facility AC power.
  • Page 233 c. Type the user name and password obtained in step 1, and click OK. If the View panel does not display, wait another five minutes and perform this step again. Does the EFCM Basic interface appear operational with the View panel displayed? ↓...
  • Page 234 3. Return to the View panel (Port Properties tab). Continue. At the View panel, does the Operational State field display a Segmented message? ↓ Port segmentation is indicated. Go to step 52 to obtain event codes. If no event codes are found, go to MAP 0700: fabric, ISL, and segmented port problem determination page 267.
  • Page 235 ↓ A power supply failure is indicated. Go to step 52 to obtain event codes. If no event codes are found, go to MAP 0100: power distribution analysis on page 204. Inspect the State fields for Fan 0, and Fan 1 through Fan 3. Does the State field display a Failed or Not Installed message for any of the fans? ↓...

  • Page 236: Map 0100: Power Distribution Analysis

    The link incident record provides the attached switch port number(s) and one or more of the following event codes and messages. Record all event codes that may relate to the reported problem. 581 - Link interface incident - implicit incident. 582 - Link interface incident - bit-error threshold exceeded.
  • Page 237 Event Explanation Action Code Power supply AC voltage failure. Go to step Power supply DC voltage failure. Go to step Power supply thermal failure. Go to step Power supply false shutdown. Go to step Is remote fault isolation being performed at the EFC Server? ↓...
  • Page 238 b. Ensure the AC power cord is not damaged. If damaged, replace the cord. Was a corrective action performed? ↓ Go to step Verify power supply operation. a. Inspect the power supply and ensure the green LED illuminates. b. At the Hardware View, observe the graphic representing the power supply and ensure a failure symbol (blinking red and yellow diamond) does not appear.
  • Page 239 • This procedure is concurrent and can be performed while the switch is powered on. • Perform the data collection procedure after FRU removal and replacement. Did power supply replacement solve the problem? ↓ The switch appears operational. Contact the next level of support. At the Product View, does a grey square appear at the alert panel and as the background to the icon representing the switch reporting the problem?
  • Page 240 Verify facility AC power connections. a. Ensure both AC power cords (PS0 and PS1) are connected to the rear of the switch and to facility power receptacles. If not, connect the cords as directed by the customer. b. Ensure associated facility circuit breakers are on. If not, ask the customer set the circuit breakers on.
  • Page 241 b. At the Hardware View, observe the graphics representing the power supplies and ensure a failure symbol (blinking red and yellow diamond) does not appear. Is a failure indicated? ↓ The switch appears operational. Inspect the switch for indications the power supplies are operational, but the switch is not receiving DC power.

  • Page 242: Map 0200: Post, Reset, Or Ipl Failure Analysis

    A CTP card failure is indicated. Because the CTP card is not a FRU, replace the switch Does the EFCM Basic interface appear operational? ↓ Go to step A Page cannot be found, Unable to locate the server, HTTP 404 - file not found, or other similar message appears.
  • Page 243 411) and performed an online dump. All Fibre Channel ports reset after the failure and attached devices momentarily logout, login, and resume operation. Perform the data collection procedure and return the CD to IBM for analysis. Chapter 3: Diagnostics...

  • Page 244: Map 0300: Console Application Problem Determination

    MAP 0300: console application problem determination This map describes isolation of EFC Server or customer-supplied server application problems, including problems associated with the Windows 2000 Professional operating system, SANavigator or EFCM, and Element Manager applications. Did the rack-mount EFC Server or customer-supplied server lock up or crash without displaying a warning or error message? ↓...

  • Page 245: Windows Task Manager Dialog Box (Applications Page)

    b. Click Task Manager. The Windows Task Manager dialog box displays with the Applications page open by default (Figure 117). Windows task manager dialog box (applications page) Figure 117 c. Select (highlight) the Enterprise Fabric Connectivity Manager entry and click End Task. The EFC Manager application closes. Continue to the next step.

  • Page 246: Lcd Panel During Boot Sequence

    Figure 118 Shut down windows dialog box b. Select the Shut Down option from the list box and click OK. The EFC Server powers down. c. Wait approximately 30 seconds and press the power button on the LCD panel to power on the server and perform POSTs. During POSTs: 1.

  • Page 247: Efc Manager Login Dialog Box

    • Fan 1, fan 2, fan 3, and fan 4 rotational speed. • CPU temperature. • Hard disk capacity. • Virtual and physical memory capacity. d. After successful POST completion, the LCD panel displays a Welcome!! message, then continuously cycles through and displays server operational information.
  • Page 248 ↓ The problem is transient and the EFC Server appears operational. Contact the next level of support. Did the EFC Manager application display a dialog box with the message Connection to EFC Server lost - click OK to exit application or EFC Manager error n (where n is an error message number 1 through 8 inclusive)? ↓...
  • Page 249 Did the Element Manager application display a dialog box with the message Element Manager error 5001 or Element Manager error 5002? ↓ A Element Manager application error occurred. Click OK to close the dialog box and close the EFC Manager and Element Manager applications.

  • Page 250: Dr. Watson For Windows 2000 Dialog Box

    Contact the next level of support. Did the EFC Server or customer-supplied server lock up or crash and display a Dr. Watson for Windows 2000 dialog box (Figure 121)? Dr. Watson for Windows 2000 dialog box Figure 121 ↓ Go to step An EFC Manager application error occurred and transmitted a handling exception event to the operating system.

  • Page 251: Lcd Panel During Boot Sequence

    Remove the CD and return it to IBM customer support personnel for analysis. Go to step Did the EFC Server crash and display a blue screen with the system dump file in hexadecimal format (blue screen of death)? ↓...
  • Page 252 • Fan 1, fan 2, fan 3, and fan 4 rotational speed. • CPU temperature. • Hard disk capacity. • Virtual and physical memory capacity. c. After successful POST completion, the LCD panel displays a Welcome!! message, then continuously cycles through and displays server operational information.

  • Page 253: Map 0400: Loss Of Console Communication

    EFC manager login dialog box Figure 123 Did the Product View display and does the EFC Manager application appear operational? ↓ The problem is transient and the EFC Server appears operational. Contact the next level of support. MAP 0400: loss of console communication This MAP describes fault isolation of the Ethernet communication link between a switch and the EFC Server, or between a switch and a web browser PC running the EFCM Basic interface.
  • Page 254 • At the Product View, a grey square at the alert panel and as the background to the icon representing the switch reporting the problem. • At the Hardware View, a grey square at the alert panel, a No Link status and reason at the Status table, and no FRUs visible for the switch.

  • Page 255: Efc Management Services Window

    EFC management services window Figure 124 Is the EFC Server powered on and the EMS application running? ↓ Go to step Did the switch-to-EFC Server Ethernet connection recover? ↓ The switch-to-EFC Server connection is restored and appears operational. Contact the next level of support. Reboot the EFC Server PC.

  • Page 256: Efc Manager Login Dialog Box

    d. Wait approximately 30 seconds and power on the PC. After POSTs complete, the Begin Logon dialog box displays. e. Simultaneously press Ctrl, Alt, and Delete to display the Logon Information dialog box. Type a user name and password (obtained in MAP 0000: Start MAP on page -183) and click OK.
  • Page 257 ↓ The switch-to-EFC Server connection is restored and appears operational. Contact the next level of support. Is fault isolation being performed at the switch or EFC Server? ↓ Remote fault isolation is being performed through the EFCM Basic interface. Go to step At the Product View, does a grey square appear at the alert panel and as the background to the icon representing the switch reporting the...
  • Page 258 The switch-to-EFC Server Ethernet link failed. Click the icon with the grey square representing the switch reporting the problem. The Hardware View displays. At the Hardware View: • A grey square appears at the alert panel. • No FRUs are visible for the switch. •...

  • Page 259: Interconnecting Multiple Hubs

    Was a corrective action performed? ↓ Go to step Does the LAN configuration use multiple Ethernet hubs that are daisy-chained? ↓ Go to step Verify the hubs are correctly interconnected (refer to next figure). a. At the first (top) Ethernet hub, verify: 1.
  • Page 260 3. The MDI switch is set to MDI (in). If not, set the switch using a pencil or other pointed instrument. c. At the last (bottom) Ethernet hub, verify: 1. The patch cable from the second hub connects to port 12. 2.
  • Page 261 Contact the next level of support. A switch firmware upgrade is required. Download the firmware (Download a firmware version to a switch page 343). After the download, perform the data collection procedure and return the CD to IBM for analysis. Chapter 3: Diagnostics...
  • Page 262 Did the switch-to-EFC Server Ethernet connection recover? ↓ The switch-to-EFC Server connection is restored and appears operational. Contact the next level of support. An instance of the EFC Manager application is open at another EFC Server and communicating with the switch. Notify the customer and either: •...

  • Page 263: Lcd Panel (Lan 2 Ip Address)

    b. After a few seconds, the LCD panel displays the following (Figure 127): LAN 2: 010.001.001.001 LCD panel (LAN 2 IP address) Figure 127 c. Depending on switch-to-server LAN connectivity, record the appropriate IP address (LAN 1 or LAN 2). Continue to the next step.

  • Page 264: Connection Description Dialog Box

    At the Windows Workstation menu, sequentially selectPrograms, Accessories, and HyperTerminalHyperTerminal. The Connection Description dialog box displays. Connection description dialog box Figure 128 f. Type IBM TotalStorage SAN32M-1 switch in the Name field and click OK. The Connect To dialog box displays. SAN32M-1 Installation and Service Manual...

  • Page 265: Connect To Dialog Box

    Figure 129 Connect to dialog box g. Ensure the Connect using field displays COM1 or COM2 (depending on the serial communication port connection to the switch) and click OK. The COMn dialog box displays (where n is 1 or 2). COMn dialog box (COM1 or COM2) Figure 130 Chapter 3: Diagnostics...

  • Page 266: Hyperterminal Window

    h. Configure the Port Settings parameters as follows: — Bits per second - 57600. — Data bits - 8. — Parity - None. — Stop bits - 1. — Flow control - Hardware. When the parameters are set, click OK. The HyperTerminal window displays.

  • Page 267: Disconnect Verification Message Box

    Disconnect verification message box Figure 132 m. Click Yes. The following message box appears: Save session device verification message box Figure 133 n. Click No to exit and close the HyperTerminal application. o. Power off the maintenance terminal. p. Disconnect the RS-232 modem cable from the switch and the maintenance terminal.

  • Page 268: Modify Network Address Dialog Box

    Modify network address dialog box Figure 134 c. Type the correct IP address and click OK. Did the IP address below the switch icon change to the new entry and did the Ethernet connection recover? ↓ The switch-to-EFC Server connection is restored and appears operational.
  • Page 269 The switch-to-EFC Server connection is restored and appears operational. The product at the configured IP address is not an IBM managed product. Notify the customer of the problem. a. At the Product View, right-click the icon with the grey square representing the product reporting the problem.
  • Page 270 Inspect the switch reporting the problem for indications of being powered on, such as: • At the front panel, an illuminated PWR or ERR indicator. • Green LEDs illuminated on the power supplies. • Audio emanations and airflow from fans. Does the switch appear powered on? ↓...

  • Page 271: Connection Description Dialog Box

    and asynchronous RS-232 modem cable are required to verify the reporting of event code 433. Both tools are provided by installation or service personnel. To verify the event code: a. Remove the protective cap from the 9-pin maintenance port at the rear of the switch (a flat-tip screwdriver may be required).

  • Page 272: Connect-To Dialog Box

    Connect-To dialog box Figure 137 g. Ensure the Connect using field displays COM1 or COM2 (depending on the serial communication port connection to the switch), and click OK. The COMn dialog box displays (where n is 1 or 2). COMn dialog box (COM1 or COM2) Figure 138 SAN32M-1 Installation and Service Manual...

  • Page 273: Hyperterminal Window - Event Log

    h. Configure the Port Settings parameters as follows: — Bits per second - 57600. — Data bits - 8. — Parity - None. — Stop bits - 1. — Flow control - Hardware. When the parameters are set, click OK. The HyperTerminal window displays.

  • Page 274: Map 0500: Fan And Ctp Card Failure Analysis

    l. Select Exit from the File pull-down menu to close the HyperTerminal application. The following message box appears: Disconnect verification message Figure 140 m. Click Yes. The following message box appears: Save session device verification message Figure 141 n. Click No to exit and close the HyperTerminal application. o.
  • Page 275 Third cooling fan failed. Go to step Fourth cooling fan failed. Go to step Fifth cooling fan failed (does not apply to IBM Go to step TotalStorage SAN32M-1 switch). Sixth cooling fan failed (does not apply to IBM Go to step TotalStorage SAN32M-1 switch).
  • Page 276 Event Explanation Action Code High-temperature warning (SBAR module thermal Go to step sensor). Critically hot temperature warning (SBAR assembly Go to step thermal sensor). SBAR assembly shutdown due to thermal violation. Go to step High temperature warning (CTP card thermal sensor). Go to step Critically hot temperature warning (CTP card thermal...
  • Page 277 Does the EFCM Basic interface appear operational? ↓ Analysis for an Ethernet link, AC power distribution, or CTP card failure is not described in this MAP. Go to MAP 0000: Start MAP on page 183. If this is the second time at this step, contact the next level of support.
  • Page 278 • One single-phase connection for each power supply. • Input power between 120 and 230 Vac. • Input current between 2 and 4 amps. • Input frequency between 47 and 63 Hz. Is facility power within specifications? ↓ Ask the customer to correct the facility power problem. When facility power is corrected, verify switch temperature cools to within the operational limit.

  • Page 279: Map 0600: Port Failure And Link Incident Analysis

    MAP 0600: port failure and link incident analysis This MAP describes fault isolation for small form factor pluggable (SFP) transceivers and Fibre Channel link incidents. Failure indicators include: • One or more amber LEDs on the Fibre Channel ports illuminate. •...
  • Page 280 Event Explanation Action Code Unauthorized world wide name Go to step 21 Invalid attachment. Go to step Fibre Channel port failure. Go to step Loopback diagnostics port failure. Go to step SFP nonfatal error. Go to step SFP failure. Go to step Implicit incident.
  • Page 281 Is an amber port LED illuminated but not blinking (beaconing)? ↓ The switch appears operational, however a link incident or other problem may have occurred. Perform fault isolation at the EFC Server or customer-supplied server. Go to step As indicated by a message or event code 506, 512, or 514, a Fibre Channel port failed and the SFP optical transceiver must be removed and replaced.
  • Page 282 A Page cannot be found, Unable to locate the server, HTTP 404 - file not found, or other similar message appears. The message indicates the PC cannot communicate with the switch because: • The switch-to-PC Internet link could not be established. •...

  • Page 283: Port Operational States And Actions (Efcm Basic)

    Port operational states and actions (EFCM Basic) Table 12 Operational State Action Offline Go to step Not Operational Go to step Port Failure Go to step Testing Internal or external loopback test in process. Exit MAP. Invalid Attachment Go to step Link Reset Go to...

  • Page 284: Port Operational And Led States (Efc Server)

    Does a yellow triangle (attention indicator) appear adjacent to a port graphic at the Hardware View? ↓ Go to step Inspect the port state and LED status for all ports with an attention indicator. a. At the Hardware View, double-click the port graphic with the attention indicator.
  • Page 285 A link incident may have occurred, but the LIN alerts option is not enabled for the port and the attention indicator does not appear. At the Hardware View, click Logs and select Link Incident Log. The Link Incident Log displays. If a link incident occurred, the affected port number is listed with one of the following messages.
  • Page 286 A switch port is unblocked and receiving the offline sequence (OLS) or not operational sequence (NOS) from an attached device. Inform the customer that the attached device failed or is set offline, and to take the appropriate corrective action. Exit MAP. Beaconing is enabled for the port.
  • Page 287 External loopback adapter connected to the Go to step port. N-Port connection not allowed on this port. Go to step Non-IBM switch at other end of the ISL. Go to step Port binding violation - Unauthorized WWN. Go to step Unresponsive node connected to port.

  • Page 288: Configure Ports Dialog Box

    The port connection conflicts with the configured port type. Either an expansion port (E_Port) is incorrectly cabled to a Fibre Channel device or a fabric port (F_Port) is incorrectly cabled to a fabric element (director or switch). a. At the EFC Server’s Hardware View, click the Configure icon at the navigation control panel and select Ports from the Configure menu.

  • Page 289: Configure Fabric Parameters Dialog Box

    Link Parameter (ELP) revision level. • The switch is configured for operation in Open Fabric 1.0 mode and is connected to a non-IBM switch at the incorrect ELP revision level. • The switch is configured for operation in McDATA Fabric 1.0 mode and is connected to a non-IBM switch.
  • Page 290 Select the McDATA Fabric 1.0 option if the switch is fabric-attached only to other IBM switches that are also operating in McDATA Fabric 1.0 mode. Select the Open Fabric 1.0 option if the fabric contains OEM switches that are open-fabric compliant.
  • Page 291 a. Notify the customer the port will be blocked. Ensure the customer’s system administrator quiesces Fibre Channel frame traffic through the port and sets the attached device offline. b. Block the port. Refer to Block or Unblock a Port on page 45. c.

  • Page 292: Fabric Binding Dialog Box (First)

    Figure 144 Fabric binding dialog box (first) b. Ensure the Enable Fabric Binding checkbox is enabled (checked) for both switches. c. At the first Fabric Binding dialog box (both switches), click Next. The second Fabric Binding dialog box displays. d. At the second Fabric Binding dialog box (both switches), click Next.

  • Page 293: Fabric Binding Dialog Box (Second)

    i. Click Activate for each switch. The switch binding feature is consistently enabled for both switches. Did configuring the fabric and switch binding parameters solve the problem? ↓ The switch appears operational. Exit MAP. Contact the next level of support. Exit MAP. A port connection is not allowed because of a fabric binding mismatch.

  • Page 294: Fabric Binding Dialog Box (Third)

    d. Update the Fabric Membership List for both elements to ensure interswitch compatibility, then click Next. The third Fabric Binding dialog box displays. Fabric binding dialog box (third) Figure 147 e. At the third Fabric Binding dialog box, ensure the Fabric Membership List is updated and correct for each switch, then click Activate for each switch.

  • Page 295: Switch Binding - Membership List Dialog Box

    Switch binding - membership list dialog box Figure 148 b. At the Switch Binding - Membership List dialog box ensure the Switch Membership List is updated and correct for each switch, then click Activate for each switch. The switch binding feature is consistently enabled for both switches.

  • Page 296: Clear Link Incident Alert(S) Dialog Box

    Contact IBM support personnel to obtain software maintenance release 4.02.00. This release is required to correct the problem and allow IBM switches to communicate with CNT UltraEdge WAN Gateways. Exit MAP. The switch and attached device are performing a Fibre Channel link reset.
  • Page 297 Did the link incident recur? ↓ The problem is transient and the Fibre Channel link and switch appear operational. Exit MAP. Inspect the fiber-optic jumper cable attached to the port and ensure the cable is not bent and connectors are not damaged. If the cable is bent or connectors are damaged: a.
  • Page 298 e. Reconnect the fiber-optic cable. f. Unblock the port. Refer to Block or Unblock a Port on page 45. g. Monitor port operation for approximately five minutes. Did the link incident recur? ↓ The Fibre Channel link and switch appear operational. Exit MAP.

  • Page 299: Map 0700: Fabric, Isl, And Segmented Port Problem Determination

    MAP 0700: fabric, ISL, and segmented port problem determination This MAP describes isolation of fabric logout, interswitch link (ISL), and port segmentation problems. Failure indicators include: • An event code recorded at the Event Log or the EFCM Basic event log.
  • Page 300 Event Explanation Action Code E_Port is segmented. Go to step Switch is isolated. Go to step E_Port connected to an unsupported switch. Go to step Congestion detected on an ISL. Low BB_Credit detected on an ISL. Zone merge failure. Is fault isolation being performed at the EFC Server? ↓...

  • Page 301: Port Properties Dialog Box

    b. Inspect the Operational State field. Port properties dialog box Figure 150 NOTE: If the Open Trunking feature is installed and additional item will appear in the Port Properties dialog box, called Congested Threshold %. This field displays the active congested threshold percentage currently configured in the Configure Open Trunking dialog box.
  • Page 302 As a result, a disruptive server logout and login occurred for all attached devices. All attached devices resume operation after management server login. Perform the data collection procedure and return the CD to IBM for analysis. As indicated by an event code 062, the fabric controller software detected a path within the connected multiswitch fabric that traverses more than three interswitch links (ISLs or hops).
  • Page 303 • Intrepid 6064 Director in a multiswitch fabric that has more than 48 ISLs attached. • Intrepid 6140 Director in a multiswitch fabric that has more than 70 ISLs attached. • Other fabric element (director or switch) in a multiswitch fabric that has more than 32 ISLs attached.
  • Page 304 The switch E_Port segmented because the error-detect time-out value (E_D_TOV) or resource allocation time-out value (R_A_TOV) is incompatible with the attached fabric element. a. Contact IBM customer support or engineering personnel to determine the recommended E_D_TOV and R_A_TOV values for the switches.

  • Page 305: Configure Fabric Parameters Dialog Box

    Configure fabric parameters dialog box Figure 151 e. Type the recommended E_D_TOV and R_A_TOV values, then click Activate. f. Repeat steps d and e at the Hardware View for the switch attached to the segmented switch. Use the same E_D_TOV and R_A_TOV values.

  • Page 306: Configure Switch Parameters Dialog Box

    At the Hardware View for the selected switch, click the Configure menu tab and select Switch Parameters from the Operating Parameters sub menu. The Configure Switch Parameters dialog box displays. Configure switch parameters dialog box Figure 152 d. Type the customer-determined preferred domain ID value, then click Activate.

  • Page 307: Active Zone Set View

    a. Work with the system administrator to determine the desired zone name change for the one of the affected switches.Zone names must conform to the following rules: • The name must be 64 characters or fewer in length. • The first character must be a letter (a through z), upper or lower case.
  • Page 308 e. Inspect zone names in the active zone set to determine the incompatible name. f. Modify the incompatible zone name as directed by the customer: 1. At the navigation control panel, select Zone Sets from the Configure menu. The Zone Sets dialog box displays. 2.
  • Page 309 The switch E_Port segmented because a response to a verification check indicates the attached switch is not operational. a. Perform the data collection procedure for the switch and return the CD to IBM for analysis. b. Go to MAP 0000: Start MAP on page 183 and perform fault isolation for the failed switch.
  • Page 310 Inspect the Fibre Channel port segmentation reason at the EFCM Basic interface. a. At the View panel, click the Port Properties tab. The View panel (Port Properties tab) displays. b. Click the port number (0 through 31) of the segmented port. c.

  • Page 311: Configure Fabric Parameters Dialog Box

    (hello timeout) to a verification check indicates an attached switch is not operational. a. Perform the data collection procedure at the operational switch and return the CD to IBM for analysis. This information may assist in fault isolating the failed switch. b. Go to...
  • Page 312 As indicated by an event code 072, a switch E_Port is connected to an unsupported switch or fabric element. Advise the customer of the problem and disconnect the interswitch link to the unsupported switch. Exit MAP. A 140 event code occurs only if the optional OpenTrunking feature is enabled.

  • Page 313: Bytes 8 Through 11 Failure Reasons And Actions

    • Reroute Fibre Channel traffic by moving device connections to a less-congested region of the fabric. Did the corrective action solve the problem and relieve the reported low BB_Credit condition? ↓ The ISL appears operational. Exit MAP. Contact the next level of support. Exit MAP. A 150 event code indicates a zone merge process failed during ISL initialization.
  • Page 314 ↓ The merged zone appears operational. Exit MAP. Perform the data collection procedure and return the CD to IBM for analysis. Contact the next level of support. Exit MAP. A zone merge process failed during ISL initialization. The following list explains the reason: •...

  • Page 315: Map 0800: Server Hardware Problem Determination

    Are you performing fault isolation at a customer-supplied server communicating with the switch through the EFCM Basic interface? ↓ The server and Internet browser application are not IBM- supported and analysis for the failure is not described in this MAP. Refer to the supporting documentation shipped with the server for instructions on resolving the problem.
  • Page 316 Are you performing fault isolation at one of the following servers? • The rack-mount EFC Server running the Windows 2000 Professional operating system. • A customer-supplied server running the client EFC Manager application and a Windows-based operating system (Windows 95, Windows 98, Windows 2000, Windows XP, or Windows NT 4.0).

  • Page 317: Windows 2000 Task Manager Dialog Box - Performance

    Windows 2000 task manager dialog box - performance Figure 155 c. At the Physical Memory (K) portion of the dialog box, inspect the total amount of physical memory. d. Close the dialog box by clicking Close (X) at the upper right corner of the window.

  • Page 318: Lcd Panel During Boot Sequence

    Shut down windows dialog box Figure 156 b. Select the Shut Down option from the list box and click OK. The EFC Server powers down. c. Wait approximately 30 seconds and press the power button on the LCD panel to power on the server and perform POSTs. During POSTs: 1.

  • Page 319: Efc Manager Login Dialog Box

    • Fan 1, fan 2, fan 3, and fan 4 rotational speed. • CPU temperature. • Hard disk capacity. • Virtual and physical memory capacity. d. After successful POST completion, the LCD panel displays a Welcome!! message, then continuously cycles through and displays server operational information.

  • Page 320: Shut Down Windows Dialog Box

    ↓ Go to step At the EFC Manager Login dialog box, type a user name, password, and EFC Server name (obtained in MAP 0000: Start MAP page 183, and case sensitive), and click Login. The EFC Manager application opens and the Products View displays. Did the Products View display and does the EFC Manager application appear operational? ↓...

  • Page 321: Lcd Panel During Boot Sequence

    2. The green HDD LED blinks momentarily, and processor speed and random-access memory information display momentarily at the LCD panel. 3. After a few seconds, the LCD panel displays the following message pertaining to boot sequence selection (Figure 159): Boot from LAN? Press <Enter>...
  • Page 322 ↓ The server appears operational. Exit MAP. Re-install the EFC Manager application. Refer to Install or upgrade software on page 349 for instructions. Did the EFC Manager application install and open successfully? ↓ The server appears operational. Exit MAP. Advise the customer and next level of support that the server hard drive should be restored to its original factory configuration.

  • Page 323: Chapter 4 Repair Information

    Do not perform repairs until a failure is isolated to a FRU. If fault isolation was not performed, refer to MAP 0000: Start MAP page 183. Factory defaults Table 15 lists the defaults for the passwords, and IP, subnet, and gateway addresses. © Copyright IBM Corp. 2005...

  • Page 324: Procedural Notes

    Factory-Set Defaults Table 15 Item Default Customer password password Maintenance password level-2 IP address 10.1.1.10 IP address (factory preset) 10.1.1.10 Subnet mask 255.0.0.0 Gateway address 0.0.0.0 Procedural notes NOTE: EFCM and Element Manager screens in this manual may not match the screens on your server and workstation.

  • Page 325: Using Log Information

    Using log information The Enterprise Fabric Connectivity (EFC) Manager and SAN32M-1 Element Manager applicationprovide access to ten logs that provide information for administration, operation, and maintenance personnel. Each log stores up to 1,000 entries. The most recent entry appears at the top of a log. If a log is full, a new entry overwrites the oldest entry.

  • Page 326: Efc Audit Log

    EFC audit log The EFC Audit Log displays a history of user actions performed through the EFC Manager application. This information is useful for system administrators and users. To open the EFC Audit Log, select Audit Log from the Logs menu at the Products View. For a description of the EFC Audit Log and an explanation of button functions at the bottom of the log window, refer to the EFC Manager Software User Manual.

  • Page 327: Efc Session Log

    161) records an entry when the status of a switch changes. The log reflects the previous status and current status of the switch, and indicates the instance of a IBM TotalStorage SAN32M-1 switch Element Manager application that should be opened to investigate a problem. The information is useful to maintenance personnel for fault isolation and repair verification.

  • Page 328: Efc Fabric Log

    Figure 161 Product status log The log contains the following columns: • Date/Time - the date and time the switch status change occurred. • Network Address - the IP address or configured name of the switch. This address or name corresponds to the address or name displayed under the switch icon at the Product View.

  • Page 329: Audit Log

    Audit log The Audit Log displays a history of all configuration changes made to a switch from the Element Manager application or a simple network management protocol (SNMP) management workstation. This information is useful for system administrators and users. To open the Audit Log from the Hardware View, Port List View, or Performance View, select Audit Log from the Logs menu on the navigation control panel.

  • Page 330: Hardware Log

    — SFP - Small form factor pluggable (SFP) optical transceiver. Chassis slots for SFPs inserted in a port are 0 through 31. SFPs are FRUs. — PWR - power supply. Chassis slots for redundant power supplies are 0 and 1. Power supplies are FRUs. —...

  • Page 331: Hardware Log

    Hardware log Figure 163 To open the Hardware Log, select Hardware Log from the Logs menu on the navigation control panel. The log contains the following columns: • Date/Time - the date and time the FRU was inserted or removed. •...

  • Page 332: Link Incident Log

    • Serial Number - the serial number of the inserted or removed FRU. Link incident log The Link Incident Log (Figure 164) displays a history of Fibre Channel link incidents and associated port numbers for the switch. The information is useful to maintenance personnel for isolating port problems and repair verification.

  • Page 333: Threshold Alert Log

    — Link failure - not-operational primitive sequence received. — Link failure - primitive sequence timeout. — Link failure - invalid primitive sequence received for current link state. Refer to MAP 0600: port failure and link incident analysis on page 247 or MAP 0700: fabric, ISL, and segmented port problem determination page 267 for corrective actions in response to these link incident messages.
  • Page 334 Threshold alert log Figure 165 • Date/Time Date and time stamp for when the alert occurred. • Name Name for the alert as configured through the Configure Threshold Alerts dialog box. • Port Port number where the alert occurred. • Type The type of alert: transmit (TX) or receive (RX).

  • Page 335: Open Trunking Log

    the Configure Threshold Alerts dialog box. For example, a value of 25 means that threshold occurs when throughput reaches 25 percent of the port’s capacity. • Alert Time The time that the utilization % must exist before an alert is generated.

  • Page 336: Efcm Basic Logs

    • Old Exit Port - The switch port number (decimal) used for transmitting Fibre Channel traffic before the re-route action. • New Exit Port - The switch port number (decimal) used for transmitting Fibre Channel traffic after the re-route action. EFCM Basic logs To open an EFCM Basic log, click the Logs tab at the Monitor panel.

  • Page 337: Using Views

    The Logs page provides a Clear Log button for each log. Click the button to delete all entries for the associated log. The Logs page also provides a Clear All Logs button. Click the button to delete all entries in all logs. Using views The EFC Manager and Element Manager provide access to a series of views (windows) that provide information for administrators, users,...
  • Page 338 Port list view Figure 167 The port row provides status information in the following columns: • Port # - the port number (0 through 31). • Addr - the switch logical port address in hexadecimal format (FICON management style only). •...

  • Page 339: Fru List View

    • Alert - If link incident (LIN) alerts are configured for the port through the Configure Ports dialog box, a yellow triangle appears in the column when a link incident occurs. A yellow triangle also appears if beaconing is enabled for the port. A red and yellow diamond appears if the port fails.
  • Page 340 Figure 168 FRU list view To open the FRU List View from the Hardware View, click View and select FRU List. The FRU List View contains the following columns: • FRU - an acronym representing the FRU type. FRU acronyms are: —...

  • Page 341: Node List View

    • Position-a number representing the FRU chassis position. The chassis (slot) position for a nonredundant FRU is 0. The chassis positions for redundant FRUs are 0 and 1. The chassis positions for UPM cards are 0 through 15 inclusive. • Status-the FRU status (Active or Backup).

  • Page 342: Performance View

    — Unknown or other. — Hub, switch, gateway, or converter. — Host or host bus adapter (HBA). — Proxy agent. — Storage device or storage subsystem. — Module. — Software driver. • Port WWN- the eight-byte (16-digit) world-wide name (WWN) assigned to the port or Fibre Channel interface installed on the attached device.

  • Page 343: Zone Sets View

    Zone sets view Figure 170 Zone members appear as: • The unique 16-digit WWN identifying the device attached to the port. If a nickname is configured, the nickname appears instead. For example: 10:00:0206:77:43:B0:1C • A unique domain ID (1 through 31 inclusive) and port number (0 through 31).

  • Page 344: Performing Port Diagnostics

    Performing port diagnostics Port diagnostics are performed at the switch and SAN32M-1 Element Manager application. These diagnostics include: • Inspecting port light-emitting diodes (LEDs) at the switch. • Obtaining port degradation or failure information at the Element Manager application’s Hardware View. •...

  • Page 345: Hardware View

    Hardware view The Hardware View (Figure 171) displays a representation of and associated information about a specified switch. This information is useful to maintenance personnel for port-specific fault isolation and repair verification, link incidents, and port segmentation problems. • Port operational state information from the Port Properties dialog (Figure 172).

  • Page 346: Port Properties Dialog Box

    Figure 172 Port properties dialog box NOTE: If the Open Trunking feature is installed an additional item will appear in the Port Properties dialog box, called Congested Threshold %. This field displays the active congested threshold percentage currently configured in the Configure Open Trunking dialog box. The dialog box provides the following information: •...
  • Page 347 • 10-100 km Configuration - a user-specified state for the port (On or Off), configured through the Configure Ports dialog box. • LIN Alerts Configuration - a user-specified state for the port (On or Off), configured through the Configure Ports dialog box. •...
  • Page 348 Port is configured as an E_Port, but attaches to a node device. • 07 Non-IBM switch at other end of the ISL. The cable is connected to a non-IBM switch and interop mode is set to McDATA fabric mode.

  • Page 349: Performance View

    • Threshold Alert - If a threshold alert exists for the port, an alert indicator (yellow triangle) will appear by the Threshold Alert field, and the configured name for the last alert received will appear in the field. • Congested Threshold % This field only displays if the optional Open Trunking feature is installed.
  • Page 350 Each port bar graph in the upper portion of the view displays the instantaneous transmit or receive activity level for the port, and is updated every five seconds. The relative value displayed is the greater of either the transmit or receive activity (whichever value is greatest when sampled).

  • Page 351: Perform Loopback Tests

    • Clear link incident alerts. • Reset the port. • Configure Port Binding. When a port is selected, the bottom half of the Performance View displays the following tables of cumulative port statistics and error count values. These statistics correspond to values defined in the Fabric Product management information base (MIB).

  • Page 352: Port Diagnostics Dialog Box

    NOTE: An SFP transceiver must be installed in the port during the test. A switch can remain attached during the test. 2. At the EFC Server, open the EFC Manager application. The Product View displays. 3. Select the icon representing the switch to be tested. The Hardware View for the selected switch displays.
  • Page 353 9. Verify beaconing is enabled, then click Next. The message Press START Test to begin diagnostics appears, and the Next button changes to a Start Test button. 10. Click Start Test. The test begins and: — The Start Test button changes to a Stop Test button —...
  • Page 354 4. At the Hardware View, verify the location of the port to be tested. When the mouse pointer is passed over the graphical port on the front view of the switch, the port highlights with a blue border and an pop-up displays Switch Port. 5.

  • Page 355: Perform Channel Wrap Test

    As a port is tested, the amber LED flashes (beacons) and the green LED illuminates (indicating loopback traffic through the port). NOTE: Click Stop Test at any time to abort the loopback test. 14. When the test completes, test results appear (for each port tested) as Port xx: Passed! or Port xx: Failed! in the message area of the dialog box.

  • Page 356: Swapping Ports

    Channel wrap on for port n dialog box Figure 175 6. Click OK to enable channel wrapping for the port. Swapping ports Use the port swap procedure to swap a device connection and logical port address from a failed Fibre Channel port to an operational port. Because both ports are blocked during the procedure, switch communication with the attached device is momentarily disrupted.

  • Page 357: Collecting Maintenance Data

    Swap ports dialog box Figure 176 5. At the First address and Second address fields, type the logical port addresses (in hexadecimal format) of the pair of ports to be swapped. The ports are automatically blocked during the procedure. Select the Unblock after swap check boxes to unblock the ports when the procedure completes.

  • Page 358: Efcm Basic Interface

    card, then transfers (through the Ethernet connection) the captured dump file from FLASH memory to the EFC Server hard drive. NOTE: An optional full-volatility feature is often required at military sites that process classified data. If the feature is enabled through the switch’s maintenance port, a memory dump file (that possibly includes classified Fibre Channel frames) is not included as part of the data collection procedure Perform the maintenance data collection procedure after a firmware...

  • Page 359: Save As Dialog Box

    Save as dialog box Figure 177 5. Insert a blank diskette in the floppy drive of the browser PC. 6. At the Save As dialog box, select the floppy drive (A:\) from the Save in drop-down menu, type a descriptive name for the dump file in the File name field, and click Save.

  • Page 360: Efc Server

    When the process completes, click Close to close the dialog box. 8. Remove the diskette with the newly-collected maintenance data from the browser PC floppy drive. Return the diskette with the failed FRU to McDATA for failure analysis. EFC server To collect maintenance data (retrieve the dump file from the EFC Server hard drive) from the Element Manager application: 1.

  • Page 361: Clean Fiber-Optic Components

    8. Remove the CD with the newly-collected maintenance data from the EFC Server’s CD-RW drive. Return the CD with the failed FRU to IBM for failure analysis. 9. To ensure the backup application operates normally, replace the original backup CD in the EFC Server’s CD-RW drive.

  • Page 362: Power-On Procedure

    2. Disconnect the fiber-optic cable from the SFP. Use compressed air to blow any contaminants from the connector as shown in part 1 Figure 181. — Keep the air nozzle approximately 50 millimeters (two inches) from the end of the connector and hold the can upright. —...

  • Page 363: Power-Off Procedure

    A power cord is provided for each switch power supply. To prevent electric shock when connecting the switch to primary facility power, use only the supplied power cord(s), and ensure the facility power receptacle is the correct type, supplies the required voltage, and is properly grounded.

  • Page 364: Reset Or Ipl The Switch

    3. Turn off both power switches at the rear of the unit. 4. If servicing the switch, disconnect the power cord(s) from the input power module at the rear of the switch. This step is not required when performing a power cycle. Reset or IPL the switch A switch reset using the IML button (at the switch front panel) or IPL (at the Element Manager application) are functionally equivalent.

  • Page 365: Ipl The Switch

    — As the network connection drops, the Status table turns yellow, the Status field displays No Link, and the State field displays a reason message. — The alert panel at the bottom of the navigation control panel displays a grey square, indicating switch status is unknown. —...

  • Page 366: Set The Switch Online Or Offline

    Set the switch online or offline This section describes procedures to set the switch online or offline. These operating states are described as follows: • Online - when the switch is set online, an attached device can log in to the switch if the port is not blocked. Attached devices can communicate with each other if they are configured in the same zone.

  • Page 367: Set Offline State

    Set offline state To set the switch offline: 1. Notify the customer the switch is to be set offline. Ensure the customer’s system administrator quiesces Fibre Channel frame traffic through the switch and sets attached devices offline. 2. At the EFC Server, open the EFC Manager application. The Product View displays.

  • Page 368: Block A Port

    Block a port To block a port: 1. Notify the customer the port is to be blocked. Ensure the customer’s system administrator quiesces Fibre Channel frame traffic through the port. 2. At the EFC Server, open the EFC Manager application. The Product View displays.

  • Page 369: Manage Firmware Versions

    3. Move the pointer over the port and right-click the mouse to open a list of menu options. 4. Select Block Port. Note the check mark in the box adjacent to the menu item, indicating the port is blocked. The Unblock Port n dialog box displays (n is the port number).

  • Page 370: Add A Firmware Version

    The firmware version shipped with the switch is provided on the System Version XX.YY.ZZ diskette. Subsequent firmware versions for upgrading the switch are provided to customers from IBM. NOTE: When adding a firmware version, follow all the instructions in the release notes or engineering change (EC) instructions that accompany the firmware version.
  • Page 371 b. Move the pointer over the Support button at the top of the home page to open a pair of menu selections, then click the Login menu selection. The Customer Support Login page displays. c. Click the Login hyperlink. The McDATA Central Site page displays.
  • Page 372 5. Click New. The New Firmware Version dialog box displays. 6. Select the desired firmware version file (downloaded in step from the EFC Server diskette drive or hard drive. Ensure the correct directory path and filename appear in the File name field and click Save.

  • Page 373: Modify A Firmware Version Description

    7. Enter a description (up to 24 characters) for the new firmware version and click OK. The description should include the installation date and text that uniquely identify the firmware version. 8. A Transfer Complete message box appears indicating the new firmware version is stored on the EFC Server hard drive.

  • Page 374: Delete A Firmware Version

    5. Enter a modified description (up to 24 characters) for the firmware version and click OK. The description should include the installation date and text that uniquely identify the firmware version. 6. The new description for the firmware version displays in the Firmware Library dialog box.

  • Page 375: Download A Firmware Version To A Switch

    5. Click OK. The selected firmware version is deleted from the Firmware Library dialog box. 6. Click Close to close the dialog box and return to the Element Manager application. Download a firmware version to a switch This procedure downloads a selected firmware version from the EFC Server library to a switch managed by the open instance of the Element Manager application.
  • Page 376 6. At the navigation control panel, select Firmware Library from the Maintenance menu. The Firmware Library dialog box displays. 7. Select the firmware version to be downloaded and click Send. The send function verifies existence of certain switch conditions before the download begins. If an error occurs, a message displays indicating the problem must be fixed before the firmware download.

  • Page 377: Manage Configuration Data

    bar progresses to 100% when the last file is transmitted to the CTP card. The switch then performs an IPL, during which the switch-to-EFC Server link drops momentarily and the following occur at the Element Manager application: — As the network connection drops, the Status table turns yellow, the Status field displays No Link, and the State field displays a reason message.

  • Page 378: Back Up The Configuration

    • Operating parameters (loop mode, error-detect time-out value (E_D_TOV), resource allocation time-out value (R_A_TOV), and preferred domain ID). • Simple network management protocol (SNMP) configuration information, including trap recipients, community names, and write authorizations. • Zoning configuration information, including the active zone set and default zone state.

  • Page 379: Restore The Configuration

    5. Click OK to close the dialog box and return to the Hardware View. Restore the configuration To restore the switch configuration file from the EFC Server: 1. Notify the customer that the switch is to be set offline. Ensure the customer’s system administrator quiesces Fibre Channel frame traffic through the switch and sets attached devices offline.

  • Page 380: Reset Configuration Data

    7. Click Yes. When the restore process finishes, the Restore Complete dialog box displays. 8. Click OK to close the dialog box and return to the Hardware View. Reset configuration data NOTE: This procedure resets the switch IP address to the default of 10.1.1.10 and may disrupt server-to-switch communication.

  • Page 381: Install Or Upgrade Software

    2. To obtain the new software version from the EFC Management Applications CD-ROM, go to step 3. To obtain the new software version from IBM’s support page: a. At the EFC Server or other personal computer (PC) with internet access, open the IBM support page.
  • Page 382 c. Type a member name and password (both are case sensitive) and click Sign In. The McDATA Central Site File Library page displays. If required, obtain the customer-specific member name and password from the customer or next level of support. d.

  • Page 383: Shut Down Windows Dialog Box

    7. At the Run dialog box, type D:\mcdataServerInstall in the Open field. 8. Click OK. A series of message boxes appear as the InstallAnywhere third-party application prepares to install the EFC Manager software, followed by the McDATA EFC Management Applications dialog box.
  • Page 384 b. Select the Restart option from the list box and click OK. The EFC Server powers down and restarts. During the reboot process the LAN connection between the EFC Server and browser-capable PC drops momentarily, and the TightVNC viewer displays a network error. c.

  • Page 385: Chapter 5 Fru Removal And Replacement

    Procedural notes Note the following: 1. Read the removal and replacement procedures (RRPs) for that FRU before removing the FRU. 2. Follow all WARNING and CAUTION statements and statements in the preface of this manual. © Copyright IBM Corp. 2005...

  • Page 386: Rrp: Sfp Transceiver

    Pull the keyed subscriber connector (LC) free from the SFP. b. Place a protective cap over the cable connector. 5. If the SFP was not manufactured by IBM Corporation, go to step 6. Remove an IBM-manufactured SFP from the chassis: a.

  • Page 387: Replacement

    3. Insert an IBM-manufactured SFP into the port receptacle: a. Ensure the IBM label is at the top, and the alignment groove is at the bottom. b. Verify the SFP is aligned in the receptacle, then slide it forward until it seats firmly.

  • Page 388: Rrp: Power Supply

    a. Ensure no alert symbols appear that indicate a failure (yellow triangle or red diamond). b. Click the port graphic representing the replacement SFP to open the Port Properties dialog box. Verify that port information (port number, port name, operational state, and port technology) is correct.

  • Page 389: Replacement

    2. Turn off the power switch on the power supply. 3. Disconnect the AC power cord from the power supply. 4. Rotate the power lockout lever to the right to expose the black plastic latch lever. 5. Pull the latch lever down to the horizontal position. The power supply will disengage and back out about 1/4 inch when the lever is horizontal.

  • Page 390: Rrp: Cooling Fan Fru

    9. Inspect the power supply to ensure that the green LED is illuminated. If the green LED is extinguished, go to MAP 0000: Start MAP on page 183 to isolate the problem. 10. At the EFC Server’s Hardware View, select the Event Log option from the Logs icon.

  • Page 391: Replacement

    Replacement To replace a cooling fan FRU: 1. Remove the replacement cooling fan FRU from its shipping container. 2. Inspect the rear of the fan FRU for bent or broken connector pins. If any pins are damaged, obtain a new fan FRU. 3.

  • Page 392: Rrp: Ctp Card - Switch Replacement

    RRP: CTP card - switch replacement Some event codes indicate a CTP card failure, as do some diagnostic paths through MAPs. The CTP card is not a FRU, and cannot be replaced. CTP card failure requires replacement of the entire switch. If the failed switch provides a critical singular link in the fabric, and that link is still operating, it may be necessary to schedule down-time for this replacement.
  • Page 393 4. At the C: prompt, type ipconfig and press Enter. 5. Set the IP address, subnet mask, and gateway address the same as the failed switch and press Enter. 6. Close Hyperterminal and disconnect the maintenance terminal. — Connect the switch to the LAN. —...
  • Page 394 1. At the hardware view, select firmware library from the maintenance icon and verify that the firmware version is the same as that running on the existing fabric. The active version is displayed at the bottom of the display. To upgrade/download the active version, select the correct version and select SEND.

  • Page 395: Chapter 6 Illustrated Parts Breakdown

    Power plugs and receptacles. Exploded-view illustrations portray the switch disassembly sequence. Illustrated FRUs are numerically keyed to associated tabular parts lists. The parts lists also include IBM part numbers, descriptions, and quantities. Front-Accessible FRUs The front-accessible FRUs are illustrated and described in...

  • Page 396: Rear-Accessible Frus

    Figure 182 Front-Accessible FRU parts list Table 17 Ref. Part Number Description Qty. 22R2231 Base assembly, IBM TotalStorage SAN32M-1 switch, without Reference optics 22r2261 Transceiver, optical, shortwave laser, 2.125 Gbps, 0 to 32 850 nm, LC 22r2057 Transceiver, optical, longwave laser, 2.125 Gbps,...

  • Page 397: Rear-Accessible Fru Parts List

    Figure 183 Rear-Accessible FRU parts list Table 18 Ref. Part Number Description Qty. 22R2231 Base assembly, IBM TotalStorage SAN32M-1 switch, without optics Reference 22R2230 Power supply assembly (includes one cooling fan, P/N 002-002343-400) 22R2229 Fan, cooling Chapter 6: Illustrated parts breakdown...

  • Page 398: Power Plugs And Receptacles

    Power plugs and receptacles Figure 184 illustrates optional power plugs and receptacles. Table 19 is the associated parts list. The table includes reference numbers to the figure, feature numbers, and descriptions. Figure 184 Power plugs and receptacles 6, 10,14 11, 12,13 SAN32M-1 Installation and Service Manual...

  • Page 399: Power Cord And Receptacle List

    Power cord and receptacle list Table 19 Ref. Part Number Description 22R2265 Power cord, AC, United Kingdom BS 1363 right angle, 250 volts, 10 amps, 2.8 meters Receptacle: BS 1363 Reference Only Power cord, AC, European Community CEE 7/7 straight, 250 volts, 10 amps, 2.5 meters Receptacle: CEE 7 Reference Only Power cord, AC, Australia...
  • Page 400 Power cord and receptacle list (Continued) Table 19 Ref. Part Number Description Reference Only Power cord, AC, North America NEMA L6-15P straight, twist-lock, 250 volts, 10 amps, 2.8 meters Receptacle: NEMA L6-15R Reference Only Power cord, AC, North America NEMA L6-15P straight, twist-lock, 250 volts, 10 amps, 2.8 meters Receptacle: NEMA L6-15R Reference Only Power cord, AC, Japan...

  • Page 401: Miscellaneous Parts

    Miscellaneous parts Figure 185 illustrates miscellaneous parts. Table 20 is the associated parts list. The table includes reference numbers to Figure 185, part numbers, descriptions, and quantities. Miscellaneous Parts Figure 185 Miscellaneous parts list Table 20 Ref. Part Number Description Qty.
  • Page 402 SAN32M-1 Installation and Service Manual...

  • Page 403: Appendix A Messages

    Message All configuration names must be unique. Description All address configurations must be saved with unique names. Action Save the configuration with a different name that is unique to all saved configurations. © Copyright IBM Corp. 2005...
  • Page 404 Message All port names must be unique. Description A duplicate port name was entered. Every configured port name must be unique. Action Reconfigure the port with a unique name. Message Another Element Manager is currently performing a firmware install. Description Only one firmware install to a specific switch can take place at a time.
  • Page 405 Action Click Yes to confirm sending the firmware version to the switch, or no to cancel the operation. Message Cannot create partition <partition number> while FICON Managment Server is enabled. Description The user has moved slots into a partition while the FMS server is enabled.
  • Page 406 Action Replace FRU and enable beaconing again or enable beaconing on operating FRU. Message Cannot enable beaconing while the system error light is on. Description Beaconing cannot be enabled while the system error light is on. Action Select Clear System Error Light from Product menu to clear error light, then enable beaconing.
  • Page 407 Message Cannot have spaces in field. Description Spaces are not allowed in this field. Action Remove the spaces or retype the field without spaces. Message Cannot install firmware to a switch with a failed CTP card. Description Firmware cannot be installed on a switch with a defective CTP card. Action Replace the failed CTP card and retry the firmware install to the switch.
  • Page 408 Action Retry the operation later. If the condition persists, contact support personnel. Message Cannot retrieve diagnostics results. Description Diagnostics results cannot be retrieved. The link is down or busy. Action Retry the operation later. If the condition persists, contact support personnel.
  • Page 409 Message Cannot retrieve port statistics. Description Port statistics cannot be retrieved. The link is down or busy. Action Retry the operation later. If the condition persists, contact support personnel. Message Cannot retrieve switch date and time. Description Switch date and time cannot be retrieved. The link is down or busy. Action Retry the operation later.
  • Page 410 Message Cannot run diagnostics while a device is logged-in to the port. Description A device is logged in to the port where a diagnostic test is attempted. Action Log out the device and run the diagnostic test again. Message Cannot run diagnostics. The port is not installed. Description Port diagnostics cannot be performed when the port is not installed.
  • Page 411 Message Cannot set all ports to 1 Gb/sec due to port speed restriction on some ports. Description Displays if you try to set ports to operate at 1 Gb/sec data speed through the Configure Ports dialog box and some ports do not support speed configuration.
  • Page 412 Message Cannot set switch date and time. Description Switch date and time cannot be set. The link is down or busy. Action Retry the operation later. If the condition persists, contact support personnel. Message Cannot set switch state. Description Switch state cannot be set. The link is down or busy. Action Retry the operation later.
  • Page 413 Action Retry the operation later. If the condition persists, contact support personnel. Message Cannot swap an uninstalled port. Description A port swap cannot be performed when the port is not installed. Action Perform a swap only on a port that is installed. Message Click OK to remove all contents from log.
  • Page 414 Action Ensure file name and directory are correct. Message Could not find firmware file. Description The selected file is not a firmware file. Action Obtain a valid firmware file from your service representative. Message Could not remove dump files from server. Description Dump files could not be removed from server.
  • Page 415 Action Make sure all names are unique for the ports and CUP name. Message Date entered is invalid. Description Date entered incorrectly. Action Verify that the number of days in the month is valid. Message Device applications should be terminated before starting diagnostics.
  • Page 416 Action Click Yes if you want to continue and disable Fabric Binding. Message Disabling Insistent Domain ID will disable Fabric Binding. Do you want to continue? Description Fabric Binding is enabled through the EFC Manager and user attempted to disable Insistent Domain ID in the Configure Switch Parameters dialog box.
  • Page 417 Message Element Manager instance is currently open. Description A Element Manager window is currently open. Action Informational message only. Message Enterprise Fabric Mode will be disabled if any of the following parameters are disabled: Insistent Domain ID, Rerouting Delay, Domain RSCNs. Do you want to continue? Description User attempted to disable these parameters in the Configure Switch Parameters dialog box while the switch was online, but Enterprise...
  • Page 418 Description An error occurred while attempting to stop the port diagnostics from running. The link is down or busy. Action Retry the operation later. If the condition persists, contact support personnel. Message Error transferring files <message>. Description An error occurred while attempting to download files. Action Retry the operation.
  • Page 419 Message Field has exceeded maximum number of characters. Description The maximum number of data entry characters allowed in the field was exceeded. Action Enter the information using the prescribed number of characters. Message File transfer aborted. Description User has stopped the file transfer. Action N/A.
  • Page 420 Message Firmware file not found. Description Firmware file deleted from the EFC Server. Action Add firmware to library. Message Incompatible configuration between management style and management server. Description The user has selected the open systems management style, but has the FICON Management Server feature installed, and is attempting to activate the management style.
  • Page 421 Message Internal file transfer error received from switch. Description Switch detected an internal file transfer error. Action Contact support personnel. Message Invalid character in field. Description Invalid character in the input field. Action Re-enter the field information. Message Invalid configuration name. Description Attempted to save an address configuration name with an invalid name.
  • Page 422 Description Network address specified is not known by the domain name server. Action Check the input address and specify the correct network address. Message Invalid port address. Description Invalid port address has been entered. Action Verify port address through the Configure Addresses - “Active” dialog box (FICON mode only) and re-enter.
  • Page 423 Action Resend the firmware. If the condition persists, contact support personnel. Message Invalid serial number for this feature key. Description The serial number and the feature key did not match. Action Ensure that the feature key being installed is specifically for this switch serial number.
  • Page 424 Action Enter a value from 1 through 31. Message Invalid value for E_D_TOV. Description Value for E_D_TOV must be an integer from 2 through 600, measured in tenths of a second. Action Enter a value from 2 through 600. Message Invalid value for hour (0 - 23).
  • Page 425 Message Invalid value for second (0 - 59). Description Value for second must be an integer from 0 through 59. Action Enter a value from 0 through 59. Message Invalid value for threshold (1-99)%. Description Value entered for each port in the Configure Open Trunking dialog box must be in the range from 1 to 99.
  • Page 426 Message Link dropped. Description Connection between EFC Server and the switch has been lost. Action Wait for the connection to re-establish. Link re-connects are attempted every 30 seconds. Message Log is currently in use. Description Log is in use by another Element Manager. Action Retry the operation later.
  • Page 427 Description The user selected Switch Binding from the Configure menu, but the optional SANtegrity Binding feature is not installed. Action Install the SANtegrity Binding key through the Configure Feature Key dialog box before using Switch Binding features. Message No file was selected. Description Action requires you to select a file Action...
  • Page 428 Message Not all of the optical transceivers are installed for this range of ports. Description Some ports in the specified range do not have optical transceivers installed. Action Use a port range that is valid for the ports installed. Message Open Trunking is not installed for this product.
  • Page 429 Description Warning that occurs when configuring the date and time through the Configure Date and Time dialog box, that the new time or date will overwrite the existing time or date set for the switch. Action Verify that you want to overwrite the current date or time. Message Periodic Date/Time synchronization must be cleared before enabling switch clock alert.
  • Page 430 Description This displays when port diagnostics is run on a port in an inactive state. Action Run the diagnostics on an active port. Message Port speeds cannot be configured at a higher rate than the director/switch speed. Description This displays when you configure a port to 2 GB/sec and the switch speed is set to 1 Gb/sec.
  • Page 431 Message SNMP trap address not defined. Description An SNMP trap address must be defined if a community name is defined. Action Define an SNMP address. Message Switch Binding was removed from attached devices that are also participating in Port Binding. Please review the Port Binding Configuration.
  • Page 432 Message Switch clock alert mode must be cleared before enabling period synchronization. Description Clock alert mode is enabled through the Configure FICON Management Server dialog box and user is attempting to enable Periodic Date/Time Synchronization through the Configure Date and Time dialog box.
  • Page 433 Message The default zone must be disabled to configure. Description The message displays when the user attempts to change the manage- ment style to the open fabric management style and the default zone is enabled. Action Disable the default zone and repeat the operation. Message The EFC Server is busy processing a request from another Element Manager...
  • Page 434 Description User attempted to disable these parameters in the Configure Switch Parameters dialog box with the switch online and Enterprise Fabric Mode (SANtegrity binding feature) enabled. Action Disable Enterprise Fabric Mode through the Enterprise Fabric Mode dialog box in the EFC Manager, then disable the parameters. Message The IPL configuration cannot be deleted.
  • Page 435 Message This feature has not been installed. Please contact your sales representative. Description Indicator that the feature has not been installed on this director. Action Contact your sales representative to obtain the desired feature. Message This feature key does not include all of the features currently installed and cannot be activated while the switch is online.
  • Page 436 Message The switch is busy saving maintenance information. Description Switch is busy with a maintenance operation. Action Retry the operation later. If the condition persists, contact support personnel. Message The switch must be offline to configure. Description A configuration changed was attempted for a configuration requiring offline changes.
  • Page 437 Message Unable to change to incompatible firmware release. Description The user tried to download a firmware release that is not compatible with the current product configuration. Action Refer to the release notes or contact customer support. Message Unable to save data collection file to destination. Description Could not save data collection file to the specified drive (hard drive, network).
  • Page 438 SAN32M-1 Installation and Service Manual...

  • Page 439: Event Code Tables

    Message - a brief text string that describes the event. • Severity - a severity level that indicates event criticality as follows: — 0 - informational. — 2 - minor. — 3 - major. — 4 - severe (not operational). © Copyright IBM Corp. 2005...
  • Page 440 • Explanation - a complete explanation of what caused the event. • Action - the recommended course of action (if any) to resolve the problem. • Event Data - supplementary event data (if any) that appears in the event log in hexadecimal format. •...

  • Page 441: System Events (000 Through 199)

    Fabric Services databases are initialized to an empty state resulting in an implicit Fabric logout of all attached devices. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: No supplementary data included with this event.
  • Page 442 Fabric Services databases are initialized to an empty state resulting in an implicit Fabric logout of all attached devices. Action: Perform the data collection procedure for this switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: No supplementary data included with this event.
  • Page 443 All Management Services databases are initialized to an empty state resulting in an implicit logout of all attached devices logged in with the Management Server. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: No supplementary data included with this event.
  • Page 444 For a management server internal error, perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. If the ervent is a synchronous status report or a mode register update no action is required.
  • Page 445 Fabric Services databases are initialized to an empty state resulting in a momentary loss of inter-switch communications. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: No supplementary data included with this event.
  • Page 446 Event Code: 063 Message: Remote switch has too many ISLs. Severity: Major Explanation: The switch indicated in the event data (Domain ID) has too many ISLs attached to it. That switch is unreachable from this switch. Action: Reduce the number of ISLs on the indicated switch to a number that within the limits (128 ISLs per switch). Event Data: Byte 0 = domain ID of the switch with too many ISLs.
  • Page 447 Check the operational status of the switch connected to the other end of the link. If the condition persists, perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Distribution:...
  • Page 448 Check the operational status of the switch connected to the other end of the link. If the condition persists, perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis.
  • Page 449 Event Code: 072 Message: E_Port connected to unsupported switch Severity: Informational Explanation: The device connected to the other end of the interswitch link is not compatible. Action: Disconnect the interswitch link. Event Data: No supplementary data included with this event. Distribution: Switch EFC Server...
  • Page 450 Event Code: 073 Message: Fabric Init Error Severity: Informational Explanation: There was an error detected in the fabric initialization sequence. Most problems are caused by frame delivery errors. The Event data is intended for engineering evaluation of the problem. It includes a reason code and if applicable, a list of ports that problems were detected over.
  • Page 451 Event Code: 074 Message: ISL frame delivery error threshold. Severity: Informational Explanation: The number of fabric controller frame delivery erors exceeded a threshold over an E_Port and frabric init problems (event 73) were detected. Most fabric init problems are due to control fram e delivery problems. This event provides an indication of undelivered frames after they have caused problems with the fabric initialization process.
  • Page 452 04 = Procxess ELP reject with invalid revision level. 05 = Loopback indication. 06 = Non F_Port mode. 07 = When in legacy mode detect connection over E_Port of a non-IBM switch based on the WWN. 08 = Not used. 09 = Not used.
  • Page 453 Action: No actoin required if this is an isolated event. If this event is persistent, perform a data collection operation for this switch and return the data to IBM for analysis. Event Data: None.
  • Page 454 Action: Review the fabric topology using IBM’s switch topology guidelines - This condition may be corrected by adding parallel ISLs, increasing the link speed of he ISL, or by moving devices to different locations in the fabric. Event Data: Byte 0: Number of the congested port.
  • Page 455 Action: Review the fabric topology using IBM’s switch topology guidelines - This condition may be corrected by adding parallel ISLs, increasing the link speed of he ISL, or by moving devices to different locations in the fabric. If this condition is brief and rare, or if the reporting ISL has nearly 100% throughput, this condition can be ignored.
  • Page 456 Distribution: Switch EFC Server Host Nonvolatile System Event Log E-Mail Call-Home Sense Info Link Incident System Error Event Log Indicator Event Code: 150 Message: Zone Merge Failure Severity: Informational Explanation: There was a failure in the Zone Merge process during ISL initialization. Either a noncompatible Zone Set was detected or there was a problem with delivery of the Zone Merge frame.
  • Page 457 Event Data for Event Code 150 Byte 0-3: Number of the port with the Zone Merge failure. 05 = Zone Merge Error - Too long if Reason is 0A. Byte 4-7: Response Code: 06 = Zone Set Definition too Long. 01 = Fabric Busy.
  • Page 458 The event code is intended to help engineering support personnel fault isolate a fabric-wide configuration failures. Action: Perform the data collection procedure and return the CD to IBM support personnel. Event Data: Event data are mapped from the software implementation of the FC-SW2 protocol and are typically complicated.

  • Page 459: Power Supply Events (200 Through 299)

    If the ac voltage does not recover (recovery is indicated by event 203), replace the faulty power supply. Perform the data collection procedure for this unit using the EFC Manager, save the data file to the EFC Manager Zip drive, and return the CD and the faulty power supply to IBM for analysis and repair. Event Data: No supplementary data included with this event.
  • Page 460 Action: Replace the faulty power supply. Perform the data collection procedure for this unit using the EFC Manager, and return the CD and the faulty power supply to IBM for analysis and repair. Event Data: No supplementary data included with this event.
  • Page 461 Event Code: 203 Message: Power supply ac voltage recovery Severity: Informational Explanation: The ac voltage on the indicated power supply has been restored. This event can only occur when dual power supplies are installed. Both supplies automatically adjust to share the system load. Action: No action required.
  • Page 462 Event Code: 206 Message: Power supply removed Severity: Informational Explanation: The indicated supply has been removed from the switch while system power was on. This event can only occur when dual power supplies are installed. The other power supply automatically adjusts to assume the system full load providing uninterrupted system power.
  • Page 463 Action: If subsequent power events occur, perform the data collection procedure for this unit using the EFC Manager, and return the CD and the faulty power supply to IBM for analysis and repair. Event Data: No supplementary data included with this event.

  • Page 464: Fan Module Events (300 Through 399)

    Fan module events (300 through 399) Event Code: 300 Message: First cooling fan propeller has failed Severity: Major Explanation: Indicates that a fan is no longer operational. The fan has stopped or was removed. The remainder of the fans in the system are installed and operational.
  • Page 465 Event Code: 302 Message: Third cooling fan propeller has failed Severity: Major Explanation: A third fan has failed. The fan has stopped or was removed. The remainder of the fans in the system are installed and operational. If present, the LED on the associated fan module is turned off. The fan has either stopped or was removed.
  • Page 466 Event Code: 304 Message: Fifth cooling fan propeller has failed Severity: Major Explanation: A fifth fan has failed. The remainder of the fans in the system are installed and operational. If present, the LED on the associated fan module is turned off. The fan has either stopped or was removed. Action: Replace the fan module immediately.
  • Page 467 Event Code: 310 Message: First cooling fan propeller has recovered Severity: Informational Explanation: A fan started spinning. It either spontaneously recovered or its FRU was replaced. One fan is now operational. Action: No action required. Event Data: Byte 0 = Recovered fan number (1-6). Distribution: Switch EFC Server...
  • Page 468 Event Code: 312 Message: Third cooling fan propeller has recovered Severity: Informational Explanation: Another fan started spinning. It either spontaneously recovered or its FRU was replaced. Three fans are now operational. Action: No action required. Event Data: Byte 0 = Recovered fan number (1-6). Distribution: Switch EFC Server...
  • Page 469 Event Code: 314 Message: Fifth cooling fan propeller has recovered Severity: Informational Explanation: Another fan started spinning. It either spontaneously recovered or its FRU was replaced. Five fans are now operational. Action: No action required. Event Data: Byte 0 = Recovered fan number (1-6). Distribution: Switch EFC Server...

  • Page 470: Ctp Card Events (400 Through 499)

    Action: Replace the faulty FRU with a functional FRU. Perform the data collection procedure for the switch using the EFC Manager, and return the CD and the faulty FRU to IBM for analysis and repair. Event Data: Byte 0: FRU code:...
  • Page 471 Event Code: 410 Message: CTP card reset Severity: Informational Explanation: The CTP card was reset due to a system power-up, a CTP card hot-insert, an IML, or a software IPL. An IPL can be caused by an EFC Manager user or automatically after a firmware fault (see Event Code 411). The event data indicates the type of reset that occurred.
  • Page 472 The dump file is automatically transferred from the switch to the EFC Server over the Ethernet LAN connection, where it is stored for later retrieval during the data collection operation. Action: Perform the data collection procedure for this switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: Bytes 0-3: Fault identifier, least significant byte first (e.g., event data 33 22 11 00).
  • Page 473 Event Code: 421 Message: Firmware download complete Severity: Informational Explanation: A new version of the switch firmware was successfully downloaded from the EFC Server or from the EFCM Basic. Action: No action required Event Data: New firmware release level (ASCII) in the format: FF.MM.II BBBB FF: Bytes 0-1 = Function release level MM: Bytes 3-4 = Maintenance release level II: Bytes 6-7 = Interim release level...
  • Page 474 Event Code: 423 Message: CTP firmware download initiated Severity: Informational Explanation: The EFC Server or EFCM Basic has initiated the download of a new version of the switch firmware. Action: No action required Event Data: No supplementary data included with this event. Distribution: Switch EFC Server...
  • Page 475 Event Code: 430 Message: Excessive Ethernet transmit errors Severity: Informational Explanation: The transmit error counters for the Ethernet adapter on the active CTP card (sum of all counters) exceeded a threshold. This does not indicate a CTP card failure but indicates a possible problem with either the Ethernet cable or hub, or another device on the same Ethernet segment.
  • Page 476 Event Code: 431 Message: Excessive Ethernet receive errors Severity: Informational Explanation: The receive error counters for the Ethernet adapter on the active CTP card (sum of all error counters) exceeded a threshold. This does not indicate a CTP card failure but an indication of a possible problem with either the Ethernet cable, or hub, or misbehavior of another device on the same Ethernet segment.
  • Page 477 CTP failure. The connection to the EFC Server is terminated, but should automatically recover once the reset is complete. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: Bytes 0-3: Reset Error reason code (Reason for resetting the adapter (least significant byte first) 1 = Frame transmission timed out.
  • Page 478 Since communication with the EFC Server is lost, no failure indication can be reported. Action: Replace the switch. Perform the data collection procedure for the switch using the EFC Manager, and return the CD and the faulty CTP card to IBM for analysis and repair. Event Data: Bytes 0-3: LAN error type 01 = Hard failure - See LAN error subtype for reason.
  • Page 479 The embedded port hardware detected an error. Action: Replace the switch. Perform a data collection operation for the switch using the EFC Manager, and return the failed CTP card and the CD to IBM for analysis and repair. Event Data: Byte 0 = Slot Position...
  • Page 480 Event Code: 442 Message: Embedded Port Anomaly Detected Severity: Informational Explanation: Indicates that the control processor has detected a deviation in the normal operation mode or operation status of the embedded port. Action: No action required. There will be an additional event generated if the occurrence of this incident exceeds an error threshold resulting in a module or port failure.
  • Page 481 0x03 SBAR module detected utility bus parity error HA Error Callouts (Words 2 & 4) 0x04 Port module detected utility bus parity error HA Error Callouts (Words 2 & 4) 0x05 SBAR module detected clock frequency error HA Error Callouts (Words 2 & 4) 0x06 Port module detected clock frequency error HA Error Callouts (Words 2 &...
  • Page 482 0x1D User port internal frame error – invalid trailer HA Error Callouts (Words 2 & 4) 0x1E User port detected frame internal integrity error HA Error Callouts (Words 2 & 4) 0x1F Internal connection time out HA Error Callouts (Words 2 & 4) 0x20 User port detected elastic store error HA Error Callouts (Words 2 &...
  • Page 483 0x36 Embedded Port detected internal frame error – HA Error Callouts (Words 2 & 4) invalid trailer 0x37 SBAR detected request out of range error HA Error Callouts (Words 2 & 4) 0x38 User port internal timeout #3 HA Error Callouts (Words 2 & 4) 0x39 Embedded Port detected CRC Error HA Error Callouts (Words 2 &...

  • Page 484: Port Module Events (500 Through 599)

    Port module events (500 through 599) Event Code: 502 Message: Port module anomaly has been detected Severity: Informational Explanation: Indicates that the control processor has detected a deviation in the normal operating mode or operating status of the indicated four-port hardware module. Action: No action required.
  • Page 485 Event #502 Anomaly Reason Codes Reason Code Description Additional Data 0x00 Utility bus error to SBAR HA Error Callouts (Words 2 & 4) 0x01 Utility bus error to Port Module HA Error Callouts (Words 2 & 4) 0x02 Reserved HA Error Callouts (Words 2 & 4) 0x03 SBAR module detected utility bus parity error HA Error Callouts (Words 2 &...
  • Page 486 0x18 User port internal frame error – long frame HA Error Callouts (Words 2 & 4) 0x19 User port internal frame error – short frame HA Error Callouts (Words 2 & 4) 0x1A User port internal parity error HA Error Callouts (Words 2 & 4) 0x1B Buffer error HA Error Callouts (Words 2 &...
  • Page 487 0x31 Embedded port internal parity error HA Error Callouts (Words 2 & 4) 0x32 Reserved (Engineering use only) HA Error Callouts (Words 2 & 4) 0x33 Health Check – port failed busy bit clear HA Error Callouts (Words 2 & 4) 0x34 Health Check –...
  • Page 488 Perform data collection procedure for the switch using the EFC Manager, save the data file to the EFC Server Zip drive. Return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 489 EFC Manager, saving the data file to the EFC Server Zip drive. If the problem persists following a system power-on reset, replace the switch and return both the failing switch and the CD to IBM for analysis and repair. Event Data:...
  • Page 490 Perform a data collection procedure for this switch using the EFC Manager, save the data file to the EFC Server Zip drive and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 491 Event Data: Byte 00 = Port number (00 - 3F) Byte 01 = Reason code 00 = Operator requested with debug command 01 = Hot plug, power up or online diagnostics failure acknowledgment 02 = Initialization failure 03 = High availability error threshold reached Bytes 04-07 = Elapsed millisecond tick count Bytes 08-11 = Reason code specific (internally defined) Byte 12 = Connector type...
  • Page 492 Event Code: 507 Message: Loopback diagnostics port failure Severity: Informational Explanation: A loopback diagnostic test detected a port failure. Loopback diagnostics are initiated through the EFC Manager or as a result of the hot insertion of a port module (on supported models). Action: No action required.
  • Page 493 Distribution: Switch EFC Server Host Nonvolatile System Event Log E-Mail Call-Home Sense Info Link Incident System Error Event Log Indicator Event Code: 508 Message: Fibre Channel port anomaly detected Severity: Informational Explanation: Indicates that the control processor has detected a deviation in the normal operating mode or operating status of the indicated port.
  • Page 494 0x02 Reserved HA Error Callouts (Words 2 & 4) 0x03 SBAR module detected utility bus parity error HA Error Callouts (Words 2 & 4) 0x04 Port module detected utility bus parity error HA Error Callouts (Words 2 & 4) 0x05 SBAR module detected clock frequency error HA Error Callouts (Words 2 &...
  • Page 495 0x1C User port detected unexpected frame HA Error Callouts (Words 2 & 4) transmission 0x1D User port internal frame error – invalid trailer HA Error Callouts (Words 2 & 4) 0x1E User port detected frame internal integrity error HA Error Callouts (Words 2 & 4) 0x1F Internal connection time out HA Error Callouts (Words 2 &...
  • Page 496 0x34 Health Check – port detected bit synchronization HA Error Callouts (Words 2 & 4) error 0x35 Diagnostic port test failure HA Error Callouts (Words 2 & 4) 0x36 Embedded Port detected internal frame error – HA Error Callouts (Words 2 & 4) invalid trailer 0x37 SBAR detected request out of range error...
  • Page 497 Event Code: 510 Message: SFP optics hot-insertion initiated Severity: Informational Explanation: The hot insertion of a Small Form Factor pluggable optics transceiver has been detected. If the amber LED stays illuminated after the insertion of the new optic transceiver, see the Port Failure event (506). Action: No action required.
  • Page 498 Event Code: 513 Message: SFP optics hot-removal completed Severity: Informational Explanation: The hot removal of a Small Form Factor pluggable optics transceiver has been detected. Action: No action required. Event Data: Byte 0 = Port number (00-8F) Bytes 4-7 = Elapsed millisecond tick count. Distribution: Switch EFC Server...
  • Page 499 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC manager, and return the CD to IBM for analysis. Event Data: Byte 00 = Port number (00-8F) Bytes 4-7 = Elapsed millisecond tick count.
  • Page 500 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC manager, and return the CD to IBM for analysis. Event Data: Byte 0 = Port number (00-8F) Bytes 4-7 = Elapsed millisecond tick count.
  • Page 501 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC manager, and return the CD to IBM for analysis. Event Data:...
  • Page 502 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC Manager, and return CD to IBM for analysis. Event Data:...
  • Page 503 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC Manager, and return the CD to IBM for analysis. Event Data:...
  • Page 504 T11/99-017v0 document. If, after fault isolation is performed by the host, it is determined that the incident is because of a port failure, perform a data collection procedure for this switch using the EFC Manager, and return the CD to IBM for analysis. Event Data:...

  • Page 505: Mpc Module Events (600 Through 699)

    MPC module events (600 through 699) Event Code: 602 Message: SBAR module anomaly detected Severity: Informational Explanation: Indicates that the control processor has detected a deviation in the normal operating mode or operating status of the indicated SBAR module. Action: No action required.
  • Page 506 0x05 SBAR module detected clock frequency error HA Error Callouts (Words 2 & 4) 0x06 Port module detected clock frequency error HA Error Callouts (Words 2 & 4) 0x07 SBAR module detected CTP interface signal HA Error Callouts (Words 2 & 4) error 0x08 Port module detected CTP interface signal error...
  • Page 507 0x1F Internal connection time out HA Error Callouts (Words 2 & 4) 0x20 User port detected elastic store error HA Error Callouts (Words 2 & 4) 0x21 User port detected trailer parity error HA Error Callouts (Words 2 & 4) 0x22 User port detected internal frame error –...
  • Page 508 0x37 SBAR detected request out of range error HA Error Callouts (Words 2 & 4) 0x38 User port internal timeout #3 HA Error Callouts (Words 2 & 4) 0x39 Embedded Port detected CRC Error HA Error Callouts (Words 2 & 4) 0x3A User port internal protocol error –...
  • Page 509 Explanation: A failure criteria associated with the serial crossbar hardware module has been met. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Event Data: Byte 0 = Slot position...
  • Page 510 Ensure that the switch model supports the operating firmware. If the firmware supports the model, perform the data collection procedure for the switch using the EFC Manager. If the problem persists following a system power-on reset, replace the switch and return the switch and the CD to IBM for analysis and repair. Event Data:...

  • Page 511: Cmm Module Events (800 Through 899)

    The thermal sensor associated with the port module has detected that the "warm" temperature threshold level has been surpassed. Action: Perform the data collection procedure for the switch using the EFC Manager, and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch. Event Data: No supplementary data included with this event.
  • Page 512 Perform the data collection procedure for this switch using the EFC Manager, save the data file to the EFC Zip drive, and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 513 Perform the data collection procedure for this switch using the EFC Manager, save the data file to the EFC Zip drive, and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 514 Perform the data collection procedure for this switch using the EFC Manager, save the data file to the EFC Zip drive, and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 515 Perform the data collection procedure for this switch using the EFC Manager, save the data file to the EFC Zip drive, and return the CD to IBM for analysis. Perform a system power-on reset. If the problem persists, replace the switch.
  • Page 516 SAN32M-1 Installation and Service Manual...

  • Page 517: Restore Efc Servers

    CD when the EFC Server is rebooted or when the data directory contents change. The data directory includes: — All EFC Manager configuration data (product definitions, user names, passwords, user rights, nicknames, session options, SNMP trap recipients, e-mail recipients, and Ethernet event notifications). © Copyright IBM Corp. 2005...

  • Page 518: Restore Efc Server Procedure

    — All log files (EFC manager logs and individual Element Manager logs). — Zoning library (all zone sets and zone definitions). — Firmware library. — Call-home settings (phone numbers and dialing options). — Configuration data for each managed switch (stored on the EFC Server and in NV-RAM on each switch).
  • Page 519 j. To close the file, click Close (X) at the upper right corner of the Notepad window. 2. Ensure the EFC Server PC is powered off. The following steps delete all data from all hard drive partitions. 3. Insert the EFC Server Restore CD-ROM in the CD-ROM drive and power on the PC.
  • Page 520 SAN32M-1 Installation and Service Manual...

  • Page 521: Consolidating Efc Servers In A Multiswitch Fabric

    (PC) as the server and configuring the remaining PCs as both clients backups. The appendix provides the following sections: • Overview. • Consolidating EFC Servers. • Reconfiguring a client after an EFC Server failure. © Copyright IBM Corp. 2005...

  • Page 522: Overview

    Overview For maximum control and efficiency, all switches in a multiswitch fabric should be managed by a single EFC Server. When multiple EFC Servers communicate with switches, the PC environment should be consolidated to one notebook PC server. The remaining PCs should be configured as client backups.

  • Page 523: Efc Server Consolidation (Private Lan Connection Only)

    EFC Server EFC Server Computer Name: EFCServer Computer Name: EFCServer 10.1.1.1 10.1.1.1 ENTER ENTER Before Consolidation MDIX MDIX Port Status Baseline Port Status Baseline 10/100 10/100 Collision 9 10 Collision Green - 100M, Yellow 100M Green - 100M, Yellow 100M - 10M, Flash - Activity 23 23...

  • Page 524: Required Efc Manager Version

    EFC Server EFC Server Computer Name: EFCServer Computer Name: EFCServer 10.1.1.1 10.1.1.1 ENTER ENTER MDIX MDIX Port Status Baseline 10/100 Port Status Baseline 10/100 Collision Collision Green - 100M, Yellow 100M Green - 100M, Yellow - 10M, Flash 100M - 10M, Flash 2 2 2 3 - Activity 2 3 2 4...

  • Page 525: Ip Address Assignment

    Manage firmware versions on page 337 for instructions. The EFC Manager application supports management of up to 48 switches (or up to 48 IBM managed products) per EFC Server, and supports a multiswitch fabric of eight switches. IP address All switches and all EFC Server PCs participating in a multiswitch assignment fabric must have unique IP addresses.

  • Page 526: Ip Addresses In A Multiswitch Environment

    10.1.1.1 10.1.1.1 10.1.1.1 ENTER ENTER ENTER Before Migration MDIX MDIX Baseline MDIX Baseline Port Status Baseline 10/100 Port Status 10/100 Port Status 10/100 Collision 11 12 Collision 11 12 Collision Green - 100M, Yellow 11 12 100M Green - 100M, Yellow - 10M, Flash 23 23 100M...

  • Page 527: Consolidating Efc Servers

    Consolidating EFC servers This procedure provides instructions to consolidate multiple EFC Servers into a single environment. The procedure is divided into steps that are: • Common for all configurations. • Unique to the private LAN configuration. • Unique to the private LAN and corporate intranet configuration. Common steps for Perform the following steps for the switch configurations shown in all configurations...
  • Page 528 d. At the Computer Name field, type a unique entry for each notebook PC. For example: EFC Server: EFCSERVER First client backup PC: EFCCLIENT1 Second client backup PC: EFCCLIENT2 Third client backup PC: EFCCLIENT3 If including numbers in the names of client backup PCs, follow the same numbering sequence used during IP addresses assignment.
  • Page 529 c. Double-click the Network icon. The Network dialog box displays with the Identification page open. d. Click the Protocols tab. The Network dialog box displays with the Protocols tab selected. e. Select the TCP/IP Protocol entry from the list box and click Properties.
  • Page 530 View and select New or select New product from the Configuration menu. The New Product dialog box displays b. Type the IP address of the switch. c. Select IBM TotalStorage SAN32M-1 switch from the Product Type field and click OK. A new switch icon displays at the Product View.
  • Page 531 EFC Manager application. If a problem is indicated, contact IBM customer support. 9. If the EFC Server is connected to a private LAN (no connection to the customer’s corporate intranet), go to...

  • Page 532: Private Lan Connection

    Private LAN After completing the common steps to consolidate EFC Server connection operation, disable the second Ethernet media adapter for the EFC Server PC and client backup PCs. This ensures against IP address conflicts because public LAN devices cannot be connected. Disabling the Ethernet Disable the second Ethernet media adapter as follows.
  • Page 533 8. Click OK. When prompted to restart the computer, click Yes to reboot the PC. After the operating system starts, the Begin Logon dialog box displays. 9. Simultaneously press Ctrl, Alt, and Delete. The Logon Information dialog box displays. 10. Type the Windows 2000 user name and password and click OK. The Windows 2000 desktop opens and the EFC Manager Login dialog box displays.
  • Page 534 b. At the EFC Server field, select localhost from the list box when logging into the EFC Server. Type 10.1.1.1 (IP address of the EFC Server) when logging into a client backup PC. c. Click Login. The Product View displays. Enabling the Ethernet If requested by the customer, enable the second Ethernet media media adapter...

  • Page 535: Private And Public Lan Connection

    NOTE: The default user name is Administrator and the default password is password. The user name and password are case-sensitive. b. At the EFC Server field, select localhost from the list box when logging into the EFC Server. Type 10.1.1.1 (IP address of the EFC Server) when logging into a client backup PC.
  • Page 536 4. Login to the EFC Manager application as follows: a. Type the user name and password. NOTE: The default user name is Administrator and the default password is password. The user name and password are case-sensitive. b. At the EFC Server field, type 10.1.1.1 (IP address of the EFC Server).

  • Page 537: Reconfiguring A Client Pc After An Efc Server Failure

    Reconfiguring a client PC after an EFC server failure If the EFC Server fails, backup configuration data from the Server PC is installed to any client backup PC, and the client is reconfigured as the new EFC Server PC. To reconfigure a client backup PC: 1.
  • Page 538 10. Login to the EFC Manager application as follows: a. Type the user name and password. NOTE: The default user name is Administrator and the default password is password. The user name and password are case-sensitive. b. At the EFC Server field, select localhost from the list box. c.

  • Page 539: Notices

    This information was developed for products and services offered in the U. S. A. IBM may not offer the products, services, or features discussed in this document in other countries. Consult your local IBM representative for information on the products and services currently available in your area.
  • Page 540 The materials at those web sites are not part of the materials for this IBM product and use of those web sites is at your own risk.

  • Page 541: Trademarks

    Trademarks The following terms are trademarks of the International Business Machines Corporation in the United States, other countries, or both: IBM, ESCON, eServer, FICON. McDATA, EFC Manager, EFCM, Eclipse, OPENready, SANvergence, SANtegrity, Enterprise Operating System, E/OS, E/OSi, and E/OSn are trademarks of McDATA Corporation and its subsidiaries in the United States, other countries, or both.

  • Page 542: Industry Canada Class A Emission Compliance Statement

    IBM is not responsible for any radio or television interference caused by unauthorized changes or modifications to this equipment.

  • Page 543: Germany Electromagnetic Compatibility Directive

    Diese Einrichtung kann im Wohnbereich Funkstorungen verursachen; in diesem Fall kann vom Betreiber verlangt werden, angemessene Masnahmen durchzuführen und dafür aufzukommen.” Anmerkung: Um die Einhaltung des EMVG sicherzustellen, sind die Geräte wie in den IBM Handbüchern angegeben zu installieren und zu betreiben.
  • Page 544 People’s Republic of China Class A Electronic Emission Statement Korean Class A Electronic Emission Statement Japan VCCI Class A ITE Electronic Emission Statement SAN32M-1 Installation and Service Manual...
  • Page 545 See also. This refers the reader to definite additional information contained in another entry. NUMERICS 8B/10B A data encoding scheme developed by IBM, translating byte-wide data to an encoded 10-bit format. 10BaseT An implementation of the Institute of Electrical and Electronics Engi- neers (IEEE) Ethernet standard on 24-gauge unshielded twisted-pair wiring, a baseband medium at 10 Mbps.
  • Page 546 access time The amount of time, including seek time, latency, and controller time, necessary for a storage device to retrieve information. active configuration In S/390 mode, the director or switch configuration that is deter- mined by the status of the connectivity attributes. active Active FRU.
  • Page 547 connection. See connectivity attribute. See also dynamic connectivity; unblocked connection. allowed port In S/390 mode, this attribute establishes dynamic connectivity capa- connection bility. AC. Electric current that reverses direction at regular sinusoidal inter- alternating current vals (D). Contrast with direct current.
  • Page 548 technology. ASICs are designed for a specific application or purpose, such as implementing the lower-layer Fibre Channel protocol (FC-0). They are particularly suited to sending video and audio information, as well as text. ASICs differ from general-purpose devices such as memory chips or microprocessors.
  • Page 549 backbone Cable on which two or more stations or networks may be attached, typically used to link computer networks at one site with those at another. Smaller branch networks are sometimes called ribs. backplane The backplane provides direct current (DC) power distribution and connections for all logic cards.
  • Page 550 basic unit of information capacity on a computer storage device. Eight bits equals one byte. bit density Expressed as bits per inch (bpi), the number of bits that can be written on one inch of track on a disk surface. bit error rate Abbreviated as ber.
  • Page 551 B_Port. (1) In Fibre Channel protocol, a fabric inter-element port used to connect bridge devices with E_Ports on a switch. B_Ports provide a subset of E_Port functionality. (2) A IBM term for a physical interface between the fabric (switch) and a bridge device. The interface is iden- tical to an expansion port (E_Port), but it does not participate in full expansion port protocols.
  • Page 552 byte Abbreviated as B. A byte generally equals eight bits, although a byte can equal from four to ten bits. A byte can also be called an octet See also octet. call-home Product feature which enables the EFC Server to automatically con- tact a support center and report system problems.
  • Page 553 channel wrap test A diagnostic procedure that checks S/390 host-to-director or host-to-switch connectivity by returning the output of the host as input. The test is host-initiated and transmits Fibre Channel frames to a director or switch port. A director or switch port enabled for chan- nel wrapping echoes the frame back to the host.
  • Page 554 component (1) Hardware or software that is part of a functional unit. (2) A func- tional part of an operating system; for example, the scheduler or supervisor (D). concurrent firmware Firmware is upgraded without disrupting switch operation. upgrade concurrent Ability to perform maintenance tasks, such as removal or replace- maintenance ment of field-replaceable units (FRUs), while a hardware product is operating.
  • Page 555 connectivity control In S/390 mode, in a director or switch, the method used to change port address connectivity attributes and determine the communica- tion capability of the link attached to the port (D). See also active port address matrix; connectivity attribute;...
  • Page 556 See decibel. Decibels referenced to one milliwatt. Zero dBm equals one milliwatt, with a logarithmic relationship as the value increases (D). direct current. Abbreviated as dB. A standard unit used to express gain or loss of decibel optical power, expressed as the ratio of input power to output power on a logarithmic basis (D).
  • Page 557 diskette drive The hardware mechanism by which a computer reads data from and writes data to removable diskettes (D). DNS name Domain name system or domain name service. Host or node name for a device or managed product that is translated to an Internet pro- tocol (IP) address through a domain name server.
  • Page 558 connectivity attribute. See also allowed connection; blocked connec- tion; connectivity capability; dynamic connectivity; unblocked con- nection. dynamic connectivity The capability that allows connections to be established and removed at any time. dynamic random DRAM. Random access memory that resides in a cell comprised of a access memory capacitor and transistor.
  • Page 559 Event Log. EFCM Enterprise Fabric Connectivity Management. The management scheme for IBM products. This includes the EFC Server, EFC Manager application, EFC Management Services application, and all Element Manager applications and their associated services. EFC Management EMS Application; Enterprise Fabric Connectivity Management Ser- Services application vices Application.
  • Page 560 EFC Element Manager application, EFC Product Services application, and EFC Management Services applications. See also SANavigator Server. EFC Session Log Enterprise Fabric Connectivity Session Log. Log displayed though the EFC Manager application that records a session (login and logout) history for the EFC Server, including the date and time, user name, and network address of each session.
  • Page 561 View, the corresponding EFC Element Manager application is invoked. embedded web server The interface provides a graphical user interface (GUI) similar to the interface Element Manager application, and supports director or switch config- uration, statistics monitoring, and basic operations. With director or switch firmware installed, administrators or operators with a browser-capable personal computer (PC) and an Internet connection can monitor and manage the director or switch through an embedded...
  • Page 562 Enterprise Fabric EFC Event Log. Connectivity Event Enterprise Fabric See EFCM. Connectivity Management Enterprise Fabric EFC Management Services application. Connectivity Management Services application Enterprise Fabric EFC Manager application. Connectivity Manager application Enterprise Fabric EFCM Lite. Connectivity Manager Lite EFC Product Status Log.

  • Page 563: Event Log

    Ethernet A widely implemented local area network (LAN) protocol that uses a bus or star topology and serves as the basis for the Institute of Electri- cal and Electronics Engineers (IEEE) 802.3 standard, which specifies the physical and software layers. Ethernet hub A device used to connect the EFC Server and the directors it manages.
  • Page 564 A switch is the smallest entity that can function as a complete switched fabric topology. fabric element Any active director, switch, or node in a switched fabric. fabric login The process by which node ports (N_Ports) establish their operating parameters. During fabric login, the presence or absence of a fabric is determined, and paths to other N_Ports are mapped.
  • Page 565 A unique key to enable additional product features. This key is entered into the Configure Feature Key dialog box in the Element Manager application to activate optional hardware and software features. Upon pur- chasing a new feature, IBM will provide the feature key to the cus- tomer. Glossary...
  • Page 566 fiber The fiber-optic cable made from thin strands of glass through which data in the form of light pulses is transmitted. It is used for high-speed transmissions over medium (200 m) to long (10 km) dis- tances. fiber-optic cable Synonym for optical cable.
  • Page 567 Fibre Connection FICON. An IBM set of products and services introduced in 1999 that is based on the Fibre Channel Standard. FICON technology uses fiber-optic cables as the data transmission medium, and significantly improves I/O performance (including one Gbps bi-directional data transfer).
  • Page 568 FICON Management An optional feature that can be enabled on the director or switch or Server switch through the Element Manager application. When enabled, host control and management of the director or switch or switch is provided through an S/390 Parallel Enterprise or 2/Series Server attached to a director or switch or switch port.
  • Page 569 gateway address (1) In transmission control protocol/Internet protocol (TCP/IP), a device that connects two systems that use the same or different proto- cols. (2) In TCP/IP, the address of a router to which a device sends frames destined for addresses not on the same physical network (for example, not on the same Ethernet) as the sender.
  • Page 570 The capacity to transmit in two directions, but not simultaneously. half duplex hardware Physical equipment (director, switch, or personal computer) as opposed to computer programs or software. Director or switch Hardware Log. Log displayed through the Element Hardware Log Manager application that provides a history of FRU removals and replacements (insertions) for an individual director or switch.
  • Page 571 host processor (1) A processor that controls all or part of a user application network (T). (2) In a network, the processing unit in which resides the access method for the network (D). hot pluggable concurrent maintenance. field-replaceable unit. hot spare hot swap concurrent maintenance.
  • Page 572 inband management Management of the director or switch through Fibre Channel. An interface connection to a port card. Contrast with out-of-band manage- ment. initial machine load IML. Hardware reset for all installed control processor (CTP) cards on the director or switch. This reset does not affect other hardware. It is initiated by pushing the IML button on a director’s or switch’s oper- ating panel.
  • Page 573 interoperability mode Interop mode. An operating mode set through management software that allows products to operate in homogeneous or heterogeneous fabrics. interop mode interoperability mode. A signal sent by a subsystem to the central processing unit (CPU) that interrupt signifies a process has either completed or could not be completed. interswitch link ISL.
  • Page 574 Java Virtual Machine (JVM) to execute. JVMs have been developed for many of the mainstream platforms and operating systems. jumper cable Optical cable that provides physical attachment between two devices or between a device and a distribution panel. Contrast with trunk cable.
  • Page 575 Ability to evenly distribute traffic over multiple interswitch links within a fabric. Load balancing on IBM directors and switches takes place automatically. loader/monitor area LMA. Code that resides in the loader/monitor area of the control pro- cessor (CTP) card.
  • Page 576 logical partition LPAR. A processor hardware subset defined to support the operation of a system control program, and can be used without affecting any of the applications in another partition (D). logical port address In a director or switch, the address used to specify port connectivity parameters and to assign link addresses for the attached channels and control units.
  • Page 577 Hardware product that can be managed with the EFC Element Man- managed product ager application. IBM directors and switches are managed products. See also device. management MIB. Related set of software objects (variables) containing informa-...
  • Page 578 memory A device or storage system capable of storing and retrieving data. A list of items displayed on a monitor from which a user can make a menu selection. menu bar The menu bar is located across the top of a monitor window. Pull-down menus are displayed by clicking on the menu bar option with the mouse, or by pressing Alt with the underlined letter of the name for the menu bar option (D).
  • Page 579 about themselves. This information allows N_Ports to discover and learn about each other by sending queries to the name server. name server zoning Node port (N_Port) access management that allows N_Ports to com- municate if and only if they belong to a common name server zone. network-attached storage.
  • Page 580 network interface card. Alternate name assigned to a world-wide name for a node, director nickname or switch in the fabric. node In Fibre Channel protocol, an end device (server or storage device) that is or can be connected to a switched fabric. See also device. node port N_Port.
  • Page 581 offline diagnostics Diagnostics that only operate in stand alone mode. User operations cannot take place with offline diagnostics running. offline sequence OLS. (1) Sequence sent by the transmitting port to indicate that it is attempting to initialize a link and has detected a problem in doing so. (2) Sequence sent by the transmitting port to indicate that it is offline.
  • Page 582 The mode that is used for IBM or open fabrics. See also operating mode; S/390 mode. operating mode In directors or switches, in managed products, a selection between s/390 and open systems mode. See also open systems mode;...
  • Page 583 OSMS open systems management server. out-of-band Transmission of management information, using frequencies or chan- management nels other than those routinely used for information transfer. packet In Fibre Channel protocol, Logical unit of information (usually in the form of a data frame) transmitted on a network. It contains a header (with all relevant addressing and timing information), the actual data, and a trailer (which contains the error checking function, usually in the form of a cyclic redundancy check), and frequently user data.
  • Page 584 Switch. If the preferred value is already in use, the Principal Switch will assign a different value. preventive service PSP bucket. Collected problems after early ship of an IBM product. planning bucket In a multiswitch fabric, the switch that allocates domain IDs to itself principal switch and to all other switches in the fabric.
  • Page 585 prohibited port In a director or switch, in S/390 operating mode, an attribute that removes dynamic connectivity capability. connection proprietary Privately owned and controlled. In the computer industry, propri- etary is the opposite of open. A proprietary design or technique is one that is owned by a company.
  • Page 586 random access memory. RAM. A group of computer memory locations that is numerically random access memory identified to allow high-speed access by the controlling microproces- sor. A memory location is randomly accessed by referring to its numerical identifier (D). Contrast with read-only memory.
  • Page 587 It specifies both the number of pins and type of connection, but does not specify the electrical signals (D). S/390 mode The mode that is most useful when attaching to IBM S/390 Enterprise Servers. See also open systems mode;...
  • Page 588 segmented E_Port segmented expansion port. Segmented E_Port. E_Port that has ceased to function as an E_Port segmented expansion port within a multiswitch fabric due to an incompatibility between the fabrics that it joins. See also bridge port; fabric port; generic port;...
  • Page 589 simple network SNMP community name. The name assigned to a given SNMP com- munity. Queries from an SNMP management station to a device run- management protocol ning an SNMP agent will only elicit a response if those queries are community name addressed with the correct SNMP community name.
  • Page 590 SNMP management simple network management protocol management station. station SNMP v1 simple network management protocol version SNMP v2 simple network management protocol version static random access memory. SRAM system services processor. The state of the switch or director. Possible values include online, state offline, testing, and faulty.
  • Page 591 225 indicates that the switch is not capable of acting as the principal switch. The value 0 is illegal. System Automation SA OS/390™. IBM licensed software that provides System/390 Paral- for Operating lel Sysplex™ management, automation capabilities, and integrated System/390 systems and network management.

  • Page 592: Threshold Alert Log

    telnet The Internet standard protocol for remote terminal connection over a network connection. terabyte TB. One thousand (1,000) gigabytes; one terabyte of text on paper would consume 42,500 trees. At 12 characters per inch, 1 TB of data in a straight line would encircle the earth 56 times and stretch some 1.4 million miles equalling nearly three round trips from the earth to the moon.
  • Page 593 trap host Simple network management protocol (SNMP) management work- station that is configured to receive traps. trap recipient In simple network management protocol (SNMP), a network man- agement station that receives messages through SNMP for specific events that occur on the arbitrated loop device. trunk cable Cable consisting of multiple fiber pairs that do not directly attach to an active device.
  • Page 594 mers. UNIX was one of the first operating systems to be written in a high-level programming language, namely C. This meant that it could be installed on virtually any computer for which a C compiler existed. Due to its portability, flexibility, and power, UNIX has become the leading operating system for workstations.
  • Page 595 storage space, from which the instructions and the data are mapped to the processor storage locations (A, D, I). volt A measure of the difference in electrical potential between two points in a conductor, equal to one ohm resistance carrying a constant cur- rent of one ampere, with a power dissipation of one watt (D).
  • Page 596 wrap test A test that checks attachment or control unit circuitry, without check- ing the mechanism itself, by returning the output of the mechanism as input. A wrap test can transmit a specific character pattern through a system and compare the pattern received with the pattern transmitted (D).
  • Page 597 153, description of managing introduction resetting binding restoring fabric configurations configure through EFCM Basic backing up and restoring enable through EFCM Basic resetting Enterprise Fabric Mode configure port © Copyright IBM Corp. 2005...
  • Page 598 Index access control list EFCM Basic EFCM Basic SSL encryption authentication settings software EFCM Basic basic port information switch binding EFCM Basic EFCM Basic call-home feature switch date and time call-home support EFCM Basic EFC Server IP address switch identification EFC Server password EFCM Basic EFC Server subnet mask...
  • Page 599 Index configuring date and time, menu option port configuring features, menu option software configuring open trunking, menu option dialog boxes congested threshold % configure date and time port properties dialog box configure fabric parameters 56, 131, connectors and indicators configure feature key CTP card configure identification CMM module, event codes...
  • Page 600 Index less than r_a_tov electrostatic discharge (ESD) multiswitch fabrics repair procedures, caution rerouting delay element manager E_Port closing configure configure description FRU list view OpenTrunking functionality performance features help menu port fencing logs menu preferred path maintenance menu E_Port segmentation node list view E_port segmentation node list view menu...
  • Page 601 Index switch binding EFCM Basic F_Port enable call-home notification option configure enable e-mail notification option description enable telnet on switch fabric binding enable unit beaconing configure product menu EFCM Basic enable web server on switch description enabled ports, factory default enable Enterprise Fabric Mode EFCM Basic...
  • Page 602 Index components, cleaning power supplies 21, fiber-optic components, cleaning rear-accessible Fiber-optic protective plug RRPs Fiber-optic wrap plug SFP transceivers Fibre Alliance MIB status LEDs fibre channel addresses FRUs, backup Fibre Connection management server, see FMS checking status of Fibre Connection, see FICON full-volatility FICON configure PFE key...
  • Page 603 Index IML procedure the EFC Server inband management access methods the switch inband switch management verify installation requirements FICON management style verifying switch-to-EFC Server open systems management style communication Incompatible operating parameters internal loopback tests Incompatible zoning configurations International Electrotechnical Commission, indicators on the switch compliance initial microcode load...
  • Page 604 Index LIN alerts, default values firmware library link incident log 36, 300, load balancing ISLs port diagnostics local area network reset configuration See LAN set online state logs swap ports audit 35, maintenance port 5, EFC Audit management EFC Event command line interface EFCM Basic event EFC Server...
  • Page 605 Index MAP 0200-POST, Reset or IPL Failure configure PFE key Analysis EFCM Basic MAP 0300-Console Application Problem network addresses, configuring Determination network configurations, typical MAP 0400-Loss of Console Communication network information configure EFC Server MAP 0500-Fan and CTP Card Failure configure switch Analysis EFCM Basic...
