THROTTLE BODY FUEL INJECTION SYSTEM
n\
G
2.0L ENGINE

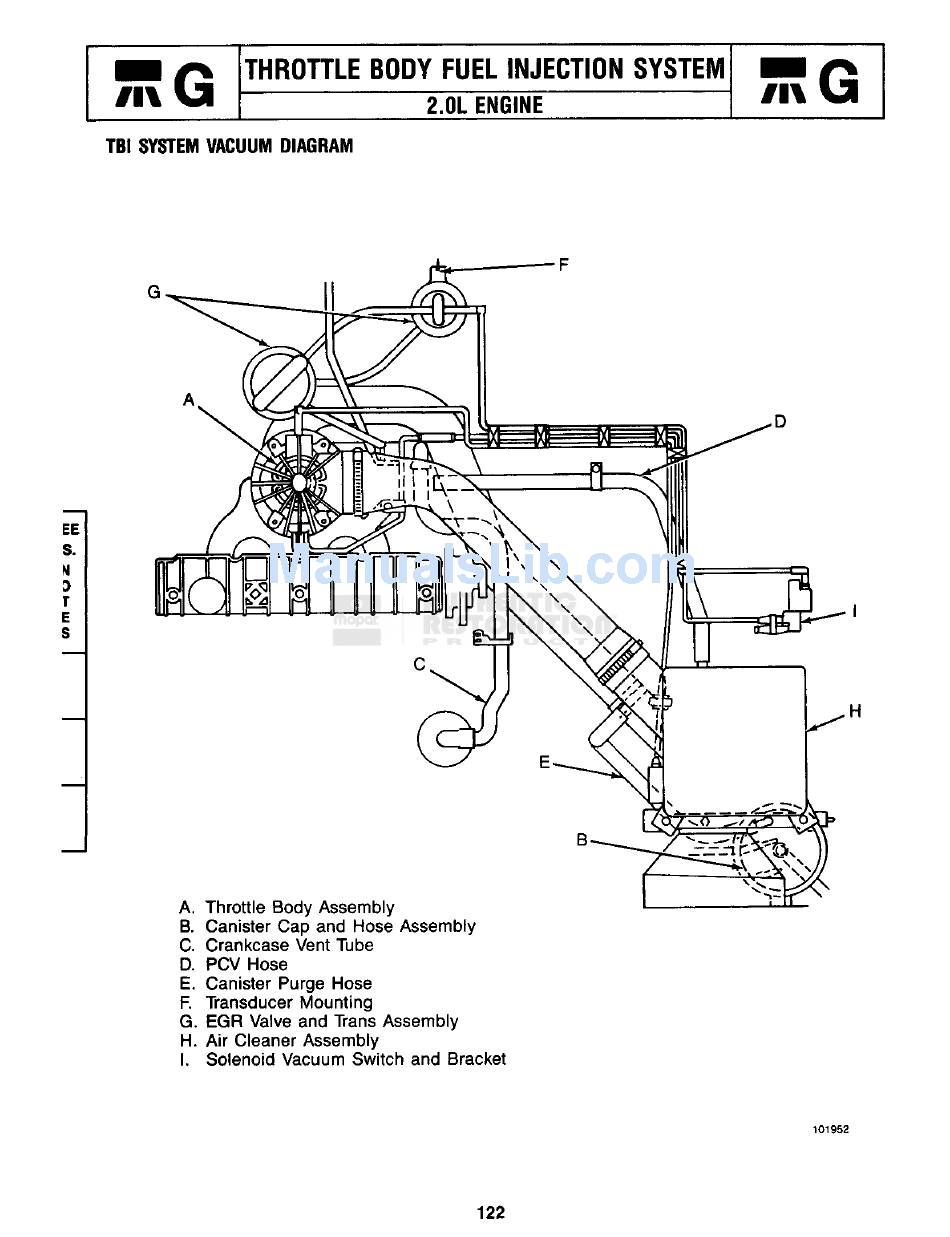

TBI SYSTEM V A C U U M D I A G R A M
B. Canister C a p a n d Hose A s s e m b l y
C . C r a n k c a s e Vent Tube
D. P C V H o s e
E . Canister Purge H o s e
F. Transducer Mounting
G . E G R Valve a n d Trans A s s e m b l y
H. Air C l e a n e r A s s e m b l y
I. Solenoid Vacuum Switch a n d Bracket
101952
122
