Entering Dtmf Code; Transmitting The Dtmf Code; Dtransmitting A Dtmf Code; (Direct Input) - Icom IC-705 Advanced Manual

9. OTHER FUNCTIONS

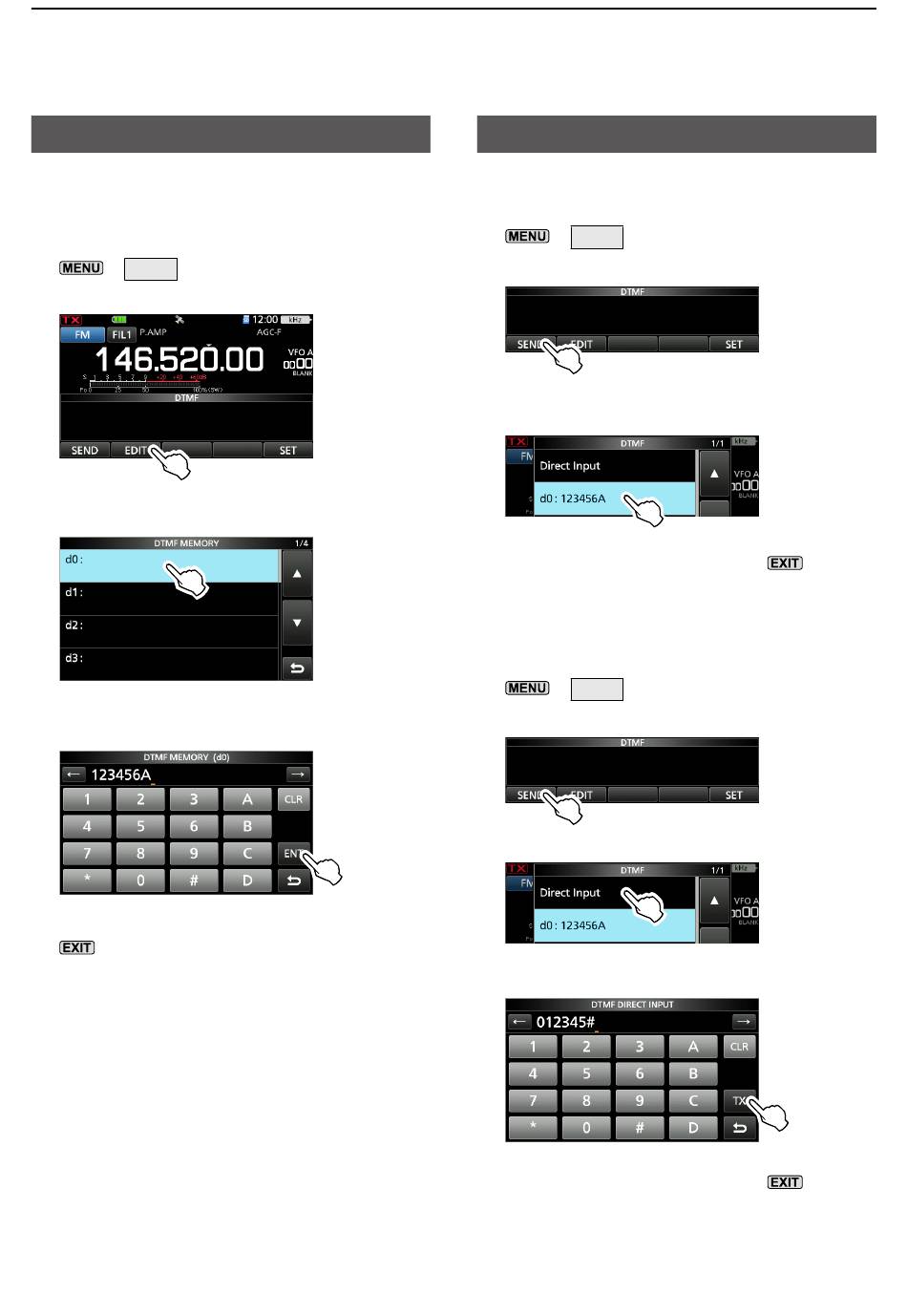

Entering DTMF code

The transceiver can save up to 16 memories of
24 digit DTMF code.
1. Display the DTMF screen.
» DTMF
2. Touch [EDIT].
3. Touch the DTMF channel where you want to
save a DTMF code. (Example: d0)
4. Enter a DTMF code, then touch [ENT].
(Example: 123456A)
5. To close the DTMF MEMORY screen, push
.

Transmitting the DTMF code

DTransmitting a DTMF code

1. Display the DTMF screen.
» DTMF
2. Touch [SEND].
3. Touch the DTMF code you want to transmit.
(Example: d0)
• Transmits the selected DTMF code.
4. To close the DTMF screen, push
DTransmitting a DTMF code

(Direct Input)

1. Display the DTMF screen.
» DTMF
2. Touch [SEND].
3. Touch "Direct Input."
4. Enter a DTMF code, then touch [TX].
(Example: 012345#)
• Transmits the entered DTMF code.
5. To close the DTMF screen, push
9-6
.
.
