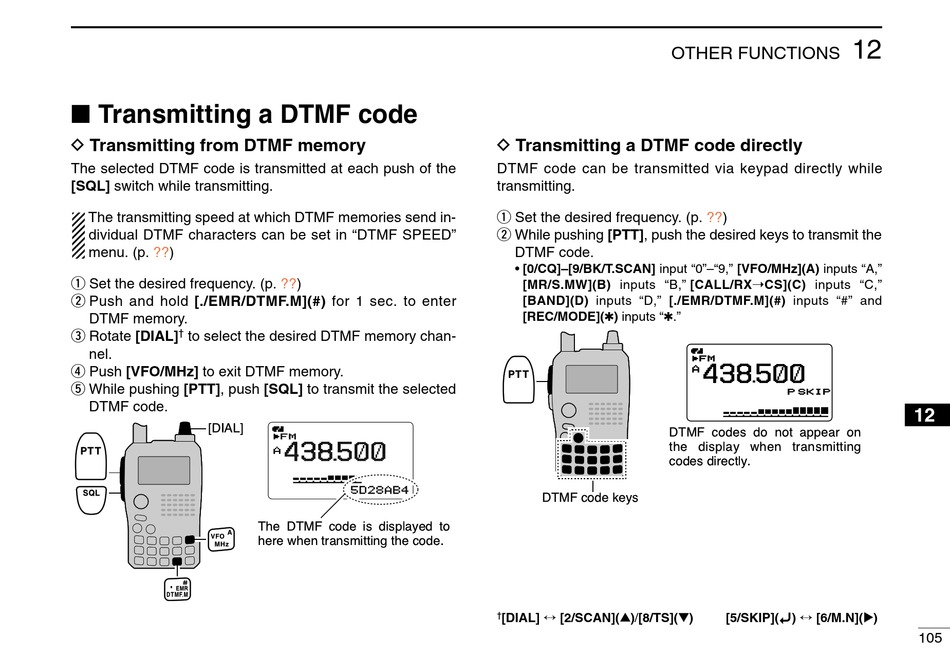

I Transmitting a DTMF code

D Transmitting from DTMF memory
The selected DTMF code is transmitted at each push of the
[SQL] switch while transmitting.
The transmitting speed at which DTMF memories send in-
dividual DTMF characters can be set in "DTMF SPEED"
menu. (p. ??)
q Set the desired frequency. (p. ??)
w Push and hold [./EMR/DTMF.M](#) for 1 sec. to enter
DTMF memory.
e Rotate [DIAL]
†
to select the desired DTMF memory chan-
nel.
r Push [VFO/MHz] to exit DTMF memory.
t While pushing [PTT], push [SQL] to transmit the selected
DTMF code.
[DIAL] +DUP +DUP DTCS DTCS
FM FM PRIO WX PRIO WX EMR EMR
438 500
25
A
MemoName
PSKIP PSKIP
µ 000
5D28AB4 5D28AB4
The DTMF code is displayed to
here when transmitting the code.
OTHER FUNCTIONS
D Transmitting a DTMF code directly
DTMF code can be transmitted via keypad directly while
transmitting.
q Set the desired frequency. (p. ??)
w While pushing [PTT], push the desired keys to transmit the
DTMF code.
• [0/CQ]–[9/BK/T.SCAN] input "0"–"9," [VFO/MHz](A) inputs "A,"
[MR/S.MW](B) inputs "B," [CALL/RX➝CS](C) inputs "C,"
[BAND](D) inputs "D," [./EMR/DTMF.M](#) inputs "#" and
[REC/MODE](✱) inputs "✱."
DTMF codes do not appear on
the
codes directly.
DTMF code keys
[DIAL] ↔ [2/SCAN](∫ ∫ )/[8/TS](√ √ )
†
12
+DUP DTCS
FM PRIO WX EMR
438 500
25
A
MemoName
PSKIP
µ 000
5D28AB4
FM
438 500
A
P SKIP
display when transmitting
[5/SKIP](ï) ↔ [6/M.N](≈ ≈ )
