V DMA BLOCK: IDMA (Intelligent DMA)
Linking
If the IDMA channel number to be executed next is set in the IDMA link field "LNKCHN" of control information
and LNKEN is set to "1" (link enabled), DMA successive transfer in that IDMA channel can be performed.
An example of link setting is shown in Figure 3.6.
Trigger
After transfer
For the above example, IDMA operates as described below.
• For trigger in hardware
(1) The IDMA channel 3 is invoked by an interrupt factor and the DMA transfer that is set is performed.
Since the IDMA is operating in successive transfer mode and the transfer counter is decremented to 0
and DINTEN is set to "1", the interrupt factor flag by which the channel 3 has been invoked remains set.
(2) Next, a DMA transfer is performed via the linked IDMA channel 5. Channel 5 is set for single transfer
mode and the transfer counter in this transfer is decremented by 1.
(3) Finally, a DMA transfer in IDMA channel 7 is performed. Although the channel 7 is set for block
transfer mode, the transfer counter is decremented to 0 when the transfer is completed because the
number of transfers to be performed is 1.
(4) Since the interrupt factor flag that has invoked IDMA channel 3 in (1) remains set, an interrupt is
generated when the IDMA transfer (channel 7) in (3) is completed. The transfer result does not affect the
interrupt factor flag of channel 3.
To generate an interrupt at the end of an IDMA transfer, the DINTEN (end-of-transfer interrupt enable)
bits in the IDMA control information for the first IDMA channel to be invoked and all the channels to be
linked must be set to "1".
• For trigger in the software application
(1) The IDMA channel 3 is invoked by a trigger in the software application and the DMA transfer that is set
is performed.
Since the IDMA is operating in successive transfer mode and the transfer counter is decremented to 0
and DINTEN is set to "1", the IDMA interrupt factor flag FIDMA (D4)/DMA interrupt factor flag
register (0x40281) is set when the transfer is completed.
(2) Next, a DMA transfer is performed in the linked IDMA channel 5. The channel 5 is set for the single
transfer mode and the transfer counter in this transfer is decremented by 1.
(3) Finally, a DMA transfer in IDMA channel 7 is performed. Although channel 7 is set for the block
transfer mode, the transfer counter is decremented to 0 when the transfer is completed because the
number of transfers to be performed is 1. The completion of this transfer also causes the FIDMA flag to
be set to "1". However, the FIDMA flag has already been set when the transfer is completed in (1) above.
(4) Since the FIDMA flag is set, an interrupt request is generated here. In cases when IDMA has been
invoked by a trigger in the software application, if the transfer counter in any one of the linked channels
is decremented to 0 and DINTEN for that channel is set to "1", an interrupt request for the completion of
IDMA transfer is generated when a transfer operation in each of the linked channels is completed. The
channel in which an interrupt request has been generated can be verified by reading out the transfer
counter.
Transfer operations in each channel are performed as described earlier.
B-V-3-12
Ch.3
Ch.5
LNKEN = 1
LNKEN = 1
LNKCHN = 5
LNKCHN = 7
DMOD = 01
DMOD = 00
DINTEN = 1
DINTEN = 1
TC = 1024
TC = 8
TC = 0

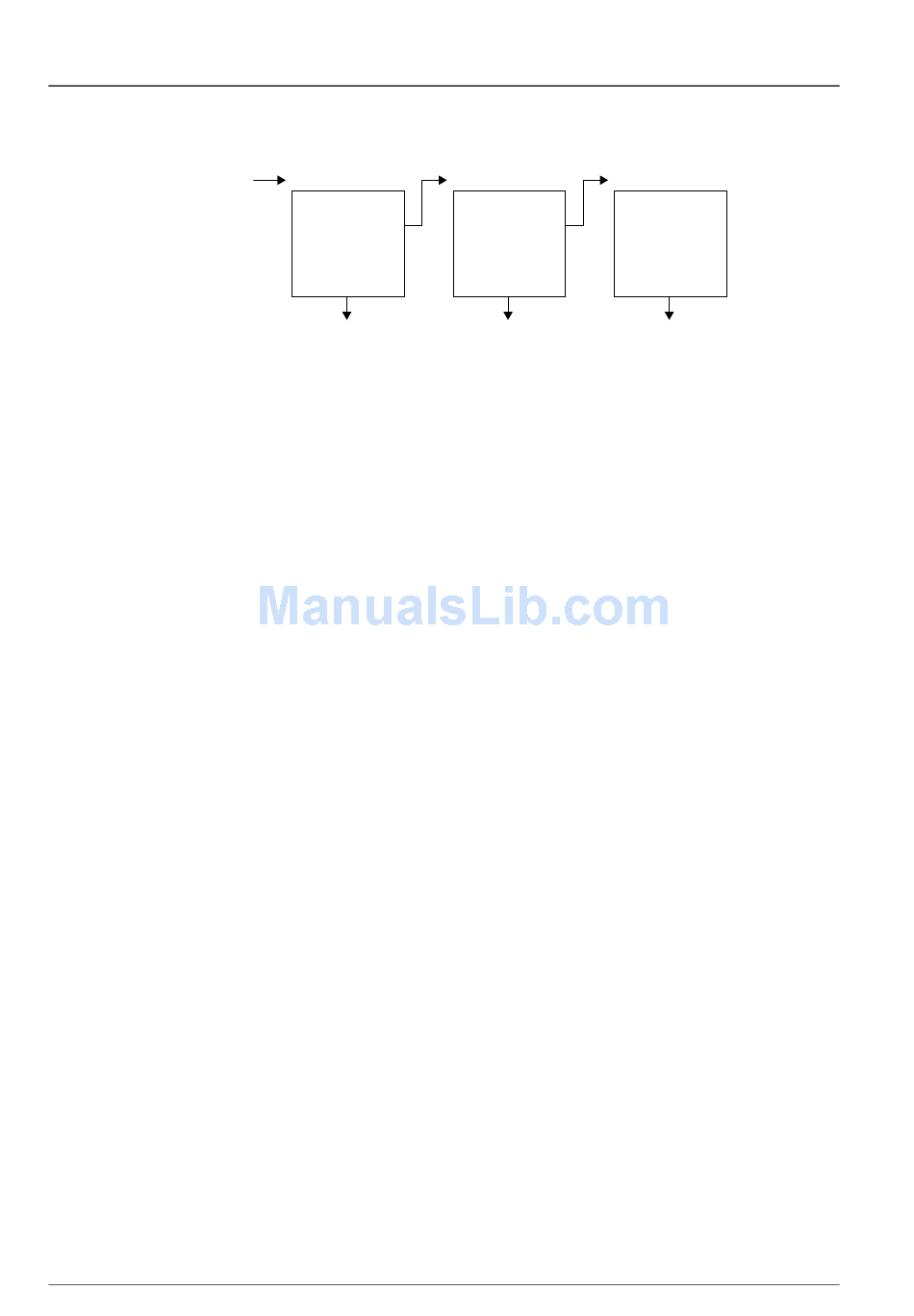

Figure 3.6 Example of Link Setting
EPSON
Ch.7
LNKEN = 0
LNKCHN = 9
DMOD = 10
DINTEN = 1
TC = 1
TC = 7
TC = 0
S1C33L03 FUNCTION PART
