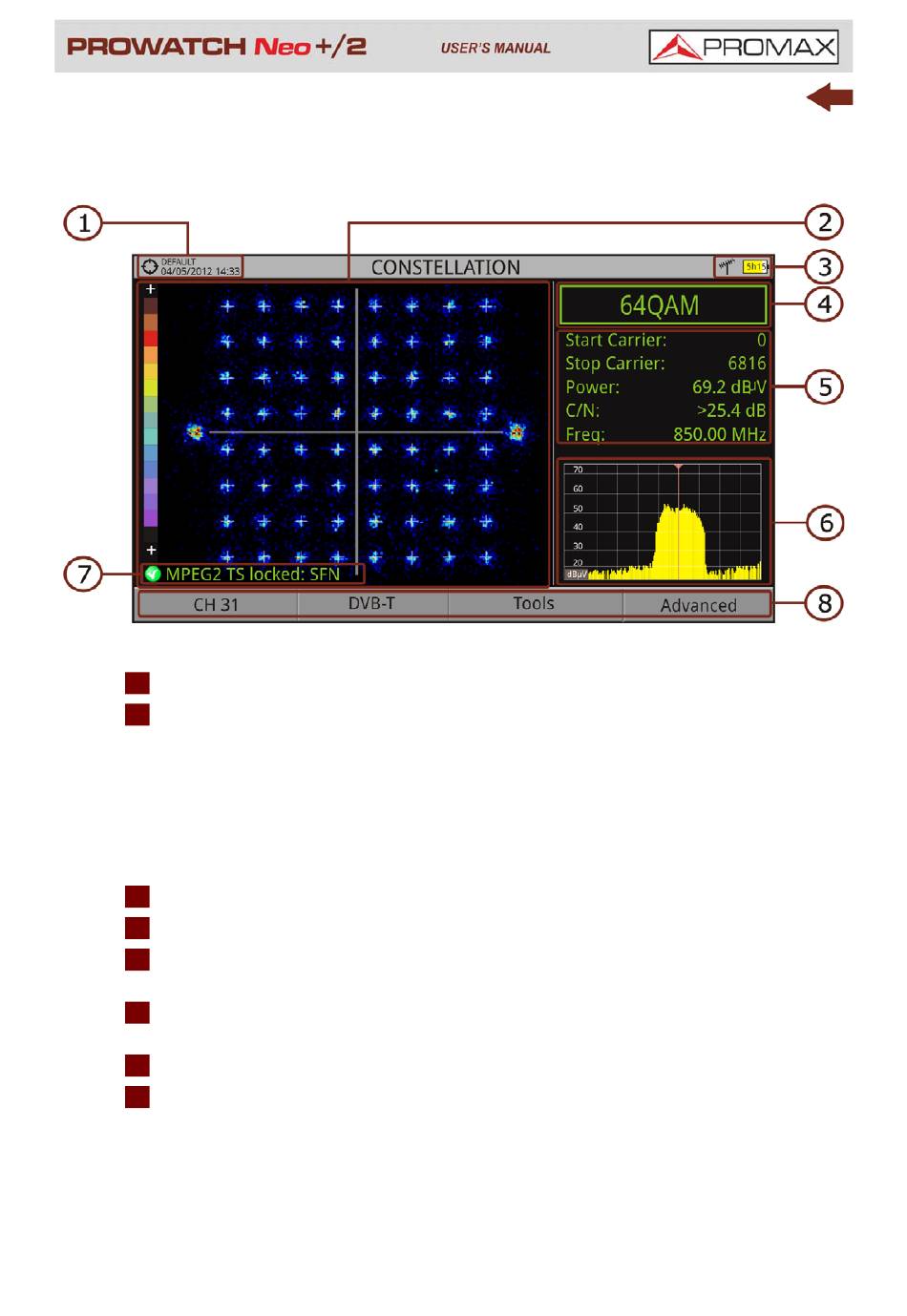

Screen Description
►
1 Selected installation; date and time.
2 Constellation window. The colour scale placed at the left side indicates the
signal quality in a qualitative way by a gradation of colours proportional to
the density of symbols concentrated in a given area. The colour scale ranges
from black (no symbols) to red (highest density). Greater dispersion of the
symbols indicates higher noise level or worse signal quality signal. If there is
symbols concentration with respect to the full grid (see advanced menu for
types of grid) this is indicative of good ratio signal/noise or absence of
problems.
3 Selected band; battery level.
4 Constellation modulation.
5 Data Window. Data shown are: Start Carrier, Stop Carrier, Power, C/N and
frequency/channel.
6 Spectrum of the tuned signal. Spectrum is displayed with the span selected
at the Spectrum mode.
7 Signal status (searching/locked/multiplex name).
8 Softkeys menus.
Cursor functions:
•Left/right: Frequency/Channel change (depending on the tuning mode).
