•R Dev: Frequency deviation caused only by R channel (once decoded).
•RDS Dev: Frequency deviation caused only by RDS subcarrier.
•Pilot Dev: Frequency deviation caused only by stereo pilot (19 kHz tone)
component of MPX.
•MPX Dev: Deviation of whole band pass filtered MPX.
Cursor functions:

•Up/down: Change of main measurement on screen.
•Left/right: Change of channel/frequency.
Function Keys:

•F1 Tuning: Tuning options.
•F2 FM: FM demodulation parameters.
•F3 Tools: Tools available for FM.
Status Bar: It shows if the FM is locked or unlocked. If it is locked then it

shows the PI (Programme Identification) and the PS (Programme Service).
► Measurement Mode Screen 4/4
► Advanced measurement for FM
Graph bars show dynamically levels for each component of the FM signal:
•L LVL: Left channel level.
•R LVL: Right channel level.
•L+R LVL: L+R component level (left + right), also known as mono, for
MPX.
•L-R LVL: L-R component level (left + right), also known as stereo, for
MPX.
March 2025

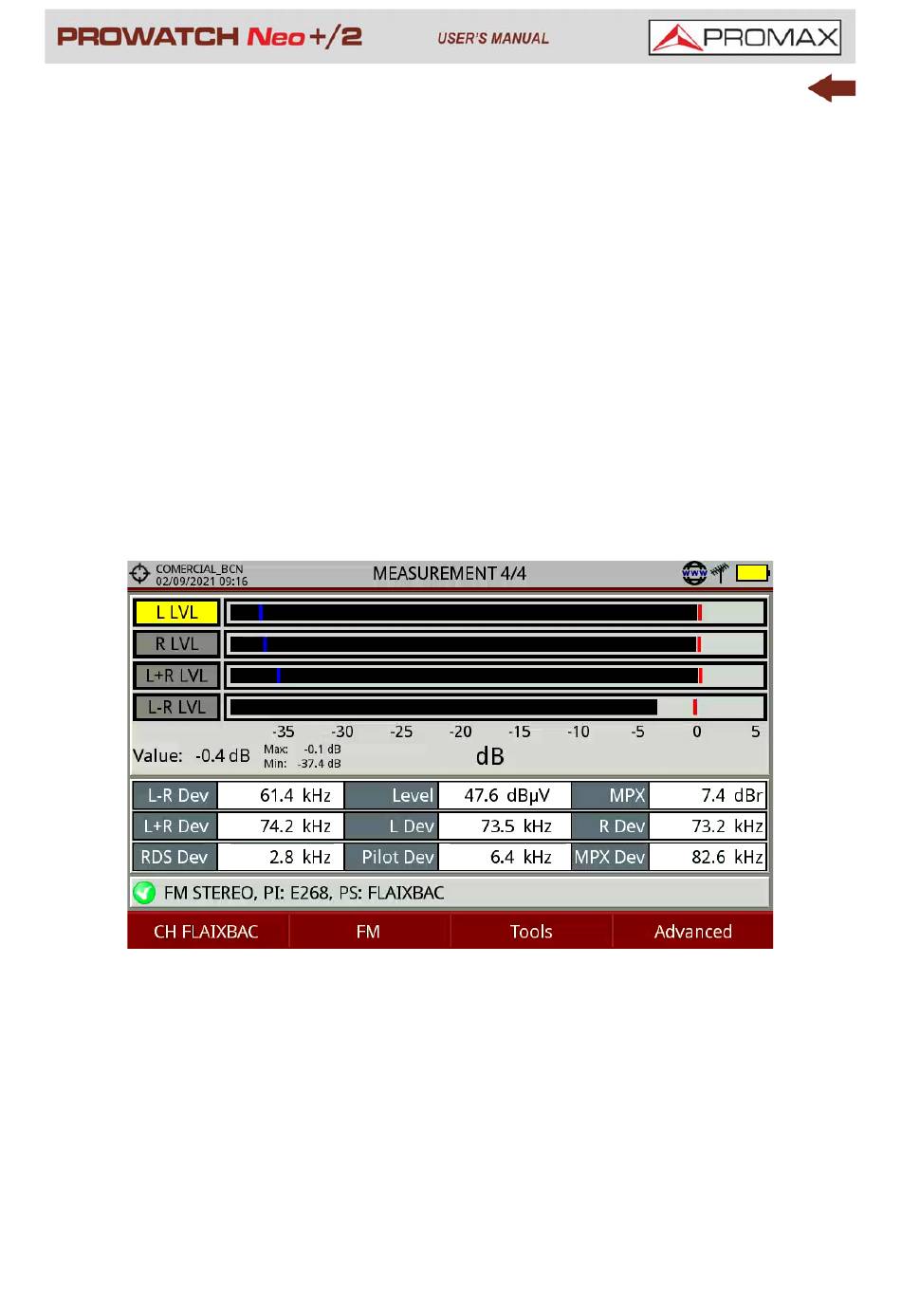

Figura 174. Measurement 4/4
