5.9.4 Settings
User can adjust some parameters on the Signal Monitoring:

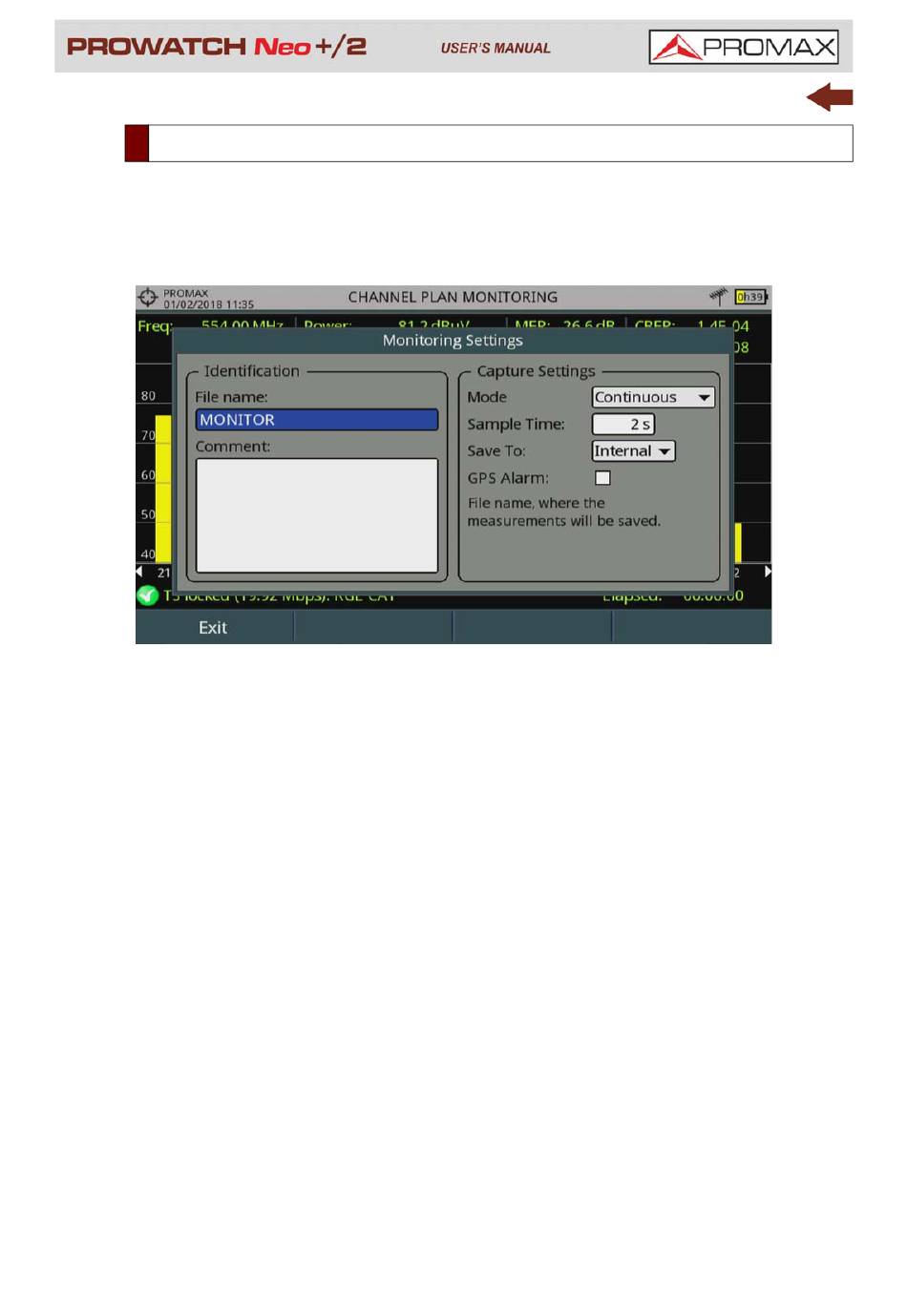

Figure 70. Settings for Single Channel Monitoring
File Name: User can give a name to the file where data is saved. All

measurement will be stored on the data file. Be sure to change the file
name when starting a new signal monitoring. If not, after a warning
message, the new data file will be saved on the last one.
Comment: User can write some comments about the monitoring.

Mode: There are three operation modes:

•Continuous: A sample is taken automatically every sample time.
•Manual: A sample is taken every time that user presses Enter.
•Schedule: User defines starting time for monitoring. Then he must press
on "Start" in Advanced menu (F4) to start the countdown to the starting
time.
Sample Time: Time between samples. Only when working in continuous

or schedule mode. Minimum time is 1 second.
Span Time (only for single channel monitoring): It is the width, in

time, shown on screen for the X axis.
Save to: There are two options: Internal or USB. For Internal option it

saves the file with all data in the internal memory of the equipment. For
USB option it saves the file with all data in a USB flash-drive connected to
the port of the equipment.
GPS Alarm: If this box is checked then it sounds a beep when the GPS is

unlocked.
