5.6.2 Operation
The MEROGRAM function is available for signals with carriers: DVB-T, DVB-T2
and DVB-C2.
1 Connect the RF input signal to the equipment.
2 Select the terrestrial band and tune a DVB-T, DVB-T2 or DVB-C2 channel
or frequency.
3 Press the Tools
4 Select the MEROGRAM function.
5 It shows the MEROGRAM function of the signal.
6 To exit press any key of mode (TV mode, Spectrum mode or Measurement
mode). All data registered is cleaned after leaving.
Screen Description
►
1 Selected installation; date and time.
2 Measurement values for the signal tuned at the frequency/channel selected.
3 Maximum level of MER.
4 MEROGRAM graphic.
5 Minimum level of MER.
March 2025
key.

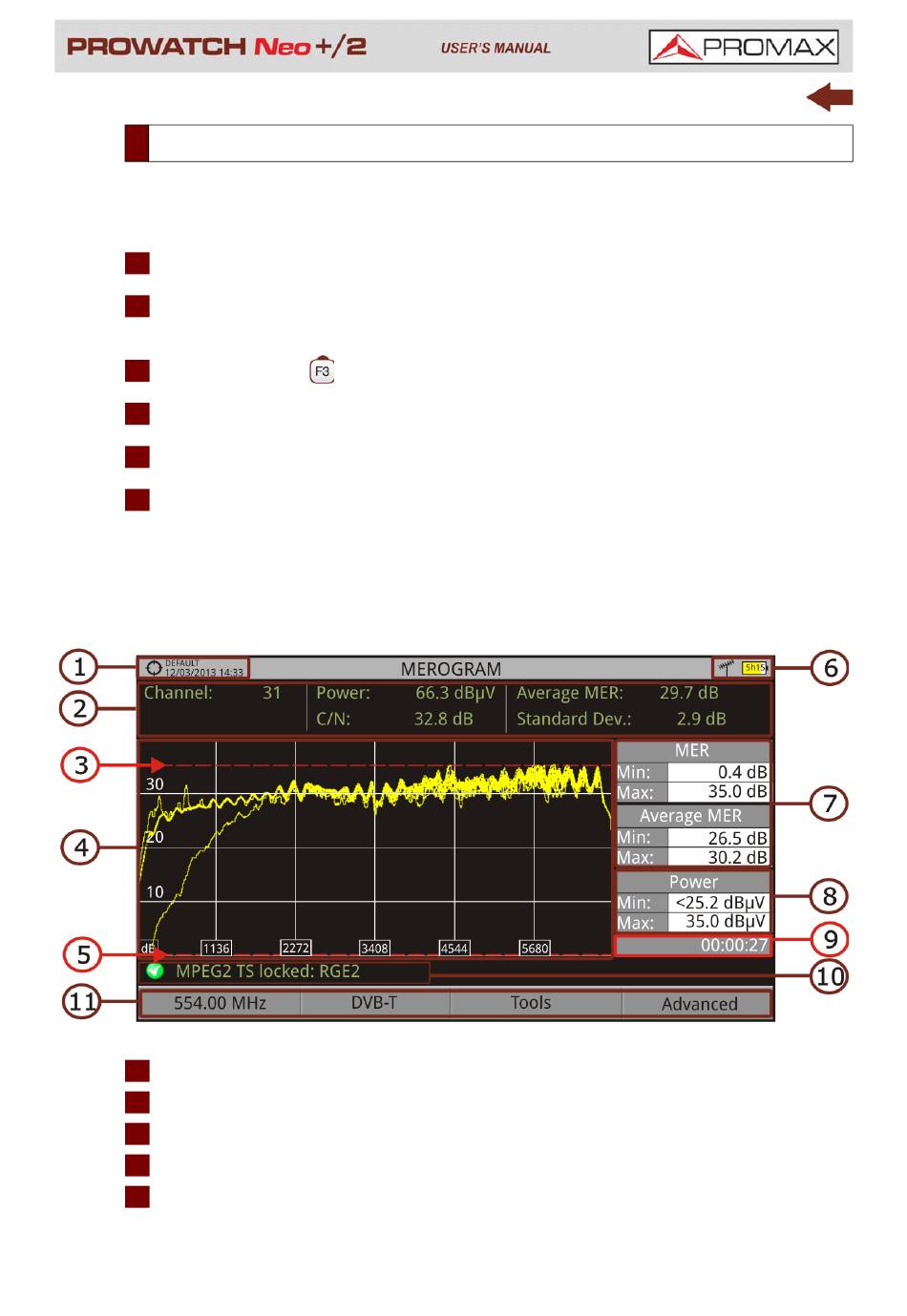

Figure 65.
