PROWATCH

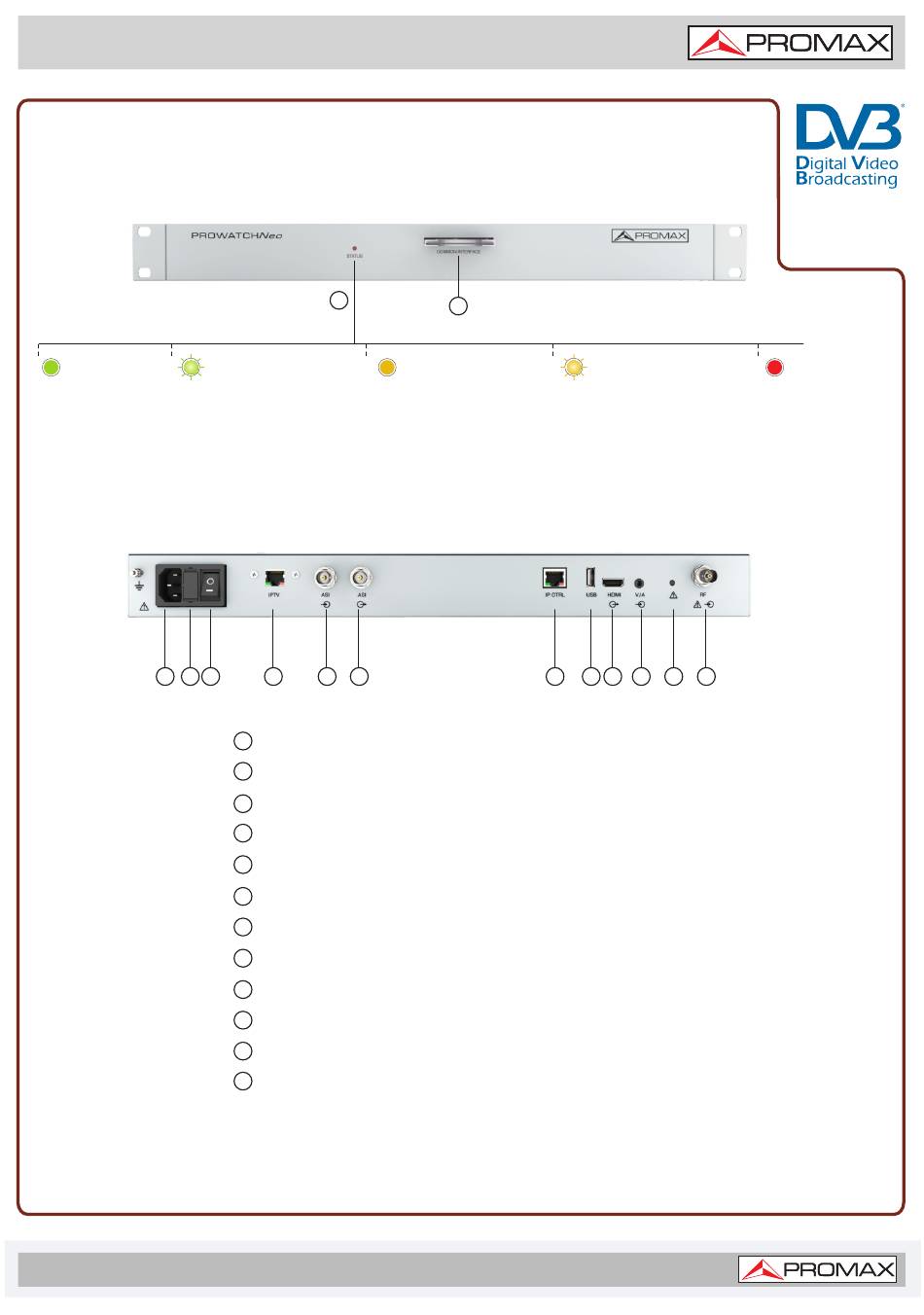

FRONT VIEW
Green LED (flashing)
Green LED
Working
Active Monitoring
REAR VIEW
3
4
5
Find the user's manual on the download area at: www.promaxelectronics.com
Neo
+/2 ATSC
1
Status LED
Orange LED
In service mode
8
6
7
Power input connector
3
4
Fuses
Power input connector
5
6
Ethernet connector
IPTV
ASI Input
(Only available for PROWATCHNeo 2)
7
ASI Output
(Only available for PROWATCHNeo 2)
8
9
ETHERNET connector for (NetUpdate / Streaming VA / Webserver**)
10
USB Connector
HDMI Output
11
12
Video / Audio Input
13
Reset / Updates Button
14
RF Input connector
QUICK REFERENCE GUIDE
*
module input connector
CAM
2
(Only available for PROWATCHNeo 2)
Orange
LED
Updating
10 11 12
9
(Only available for PROWATCHNeo 2)
* not included
Trademark of the
DVB - Digital Video
Broadcasting Project
(flashing)
Red LED
Fault
13
14
** password : Password
Advertisement
Table of Contents
Related Manuals for Promax PROWATCH Neo 2
Summary of Contents for Promax PROWATCH Neo 2
- Page 1 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE FRONT VIEW Trademark of the DVB - Digital Video Broadcasting Project module input connector (Only available for PROWATCHNeo 2) Status LED Green LED (flashing) Orange LED Orange (flashing) Green LED Red LED Working Active Monitoring In service mode Fault Updating...
-
Page 2: Load Default Configuration
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE LOAD DEFAULT CONFIGURATION 10.0.6.198 Default IP address Press Switch On Drop Orange Status LED (service mode) Press Load default configuration > 5 s The equipment restarts LOAD CUSTOM CONFIGURATION Press Switch On Drop Orange Status LED (service mode) Insert PENDRIVE with STATE.xml file which contains the custom configuration Press... -
Page 3: Local Mode Connection
PROWATCH QUICK REFERENCE GUIDE LOCAL MODE CONNECTION HUB (USB) (WEBCONTROL) REMOTE MODE CONNECTION INTERNET 10.0.6.198 Equipment IP address Password password : Password Default IP address: 10.0.6.198... -
Page 4: Access To The Webserver
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE ACCESS TO THE WEBSERVER 10.0.6.198 Equipment IP address BOOT SCREEN... -
Page 5: Web Server
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE WEBSERVER Measurements and Spectrum TV Parameters RANGER Neo Console Monitoring Historical Monitoring TIME ZONE AND TIME CONFIGURATION CAUTION Before carrying out the monitoring, select the geographical zone where the equipment is. See figure START EMULATION RANGER Neo CONSOLE Menu Installations Management... - Page 6 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE RANGER Neo Console Remote Control of Equipment Trademark of the DVB - Digital Video Broadcasting Project Keyboard access Screen Joystick Installations management key Measurement key Settings key Spectrum key TV key Softkeys Export (press >1s) Active Function Indicator / Reference (press <1s) SCREEN ICONS REFERENCE...
-
Page 7: Spectrum Analyser
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE SETTINGS Settings Signal source: Wi-Fi IPTV Band: Terrestrial Satellite SCREENS MEASUREMENT DEFAULT DEFAULT MEASUREMENTS 2/3 DEFAULT MEASUREMENT 1/3 MEASUREMENTS 3/3 23/02/2018 07:40 23/12/2016 07:40 23/12/2016 07:40 65.6 dBµV Power: 80.8dBµV Band ATSC PARAMETERS 14.1dB Bandwidth: 37125 kHz Spectral Inversion:... - Page 8 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE DEFAULT DEFAULT DEFAULT TV 3/3 TV 1/3 TV 2/3 23/12/2016 07:40 23/12/2016 07:40 23/02/2018 07:40 VIDEO SERVICE Network RGE2 Provider RTVE 12549 ONID 8916 FREE TSID 40000 40001 NIT v. +Info App. Type HbbTV Power: 69.2 dBµV...
- Page 9 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE Tools Select Service... Signal Monitoring Explore Channel Plan Discover FM Stations Field Strength: Datalogger New... Test & Go TS Analyser* TS Recording*. Service Recording... Streaming V/A Constellation Shoulder Attenuation LTE Ingress Test Attenuation Test Task Planner...
- Page 10 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE IPTV AJUSTES * (Only available for PROWATCHNeo 2) Settings IPTV Wi-Fi Signal Source: IPTV SCREENS IP MEASUREMENTS IPTV DEFAULT DEFAULT TV 1/3 TV 3/3 5h15 5h15 09/02/2015 15:35 15/01/2015 15:05 VIDEO SERVICE Network RGE2 Provider RTVE 12549...
- Page 11 PROWATCH +/2 ATSC QUICK REFERENCE GUIDE INTER PACKET ARRIVAL TIME IPTV MENUS Multicast Multicast Address UDP Port: Recent Multicast Addresses Discovered Multicast Addresses IGMPv3 Server Sources IP Parameters...
-
Page 12: Preferences Menu
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE Tools Select Service... TS Analyser TS Recording... View IP Network Log... IPTV Graph Inter Packet Arrival Time IP Ethernet Frame Viewer Ping and delay measurements.. Task Planner... Advanced Reset IP measures Advanced Span Restart analysis Advanced Audio Discovered URLs... -
Page 13: Settings Menu
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE SETTINGS MENU Terrestrial Settings Signal Source: Wi-Fi IPTV Wi-Fi Band: Satellite Terrestrial Decoder TS Input: ASI Input RF Demodulators ASI Output: Recorded TS ASI Input RF Demodulators Supply Output: Disabled Enabled Supply Voltage: LNB Drain: External 12 V 24 V... -
Page 14: Installation Management
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE INSTALLATION MANAGEMENT Filter by Type Load All (0) Screen shots (0) Channel Plans (0) Dataloggers (0) Manage DiSEqC (0) Data Captures (0) Signal Monitoring (0) Service Databases (0) Antennas (0) TS (0) Create New File Mark All Unmark All... -
Page 15: Parameter Selection
PROWATCH +/2 ATSC QUICK REFERENCE GUIDE JOYSTICK (1s) Joystick configuration RefLevel+ RefLevel+ CH - CH + Span - Span + RefLevel- RefLevel- Access Point Frequency Channel SPAN Marker moving change tuning tuning Change (Marker ON) PARAMETER EDITION PARAMETER SELECTION Tuning Advanced Channel: Average... - Page 16 Tools Advanced VIRTUAL KEYBOARD WRITING DEFAULT SPECTRUM 1/3 DEFAULT SPECTRUM 1/3 15/05/2018 13:50 115/05/2018 13:55 Enter file name: Enter file name PROMAX & & Shift Cancel Shift Cancel v26.3 05-07-2018 (0 DG0333) PROWATCH +/ 2 ATSC Find the user's manual on the download area at: www.promaxelectronics.com...
