DATA INTERFACE
Figure 35 shows the transmit CSSI (Tx) for 2-bit data symbols.
Figure 36 shows the receive CSSI (Rx) for 8-bit data symbols.
Figure 37 shows the transmit CSSI (Tx) for 8-bit data symbols.
Figure 38 shows the receive CSSI (Rx) for 16-bit data symbols.
analog.com

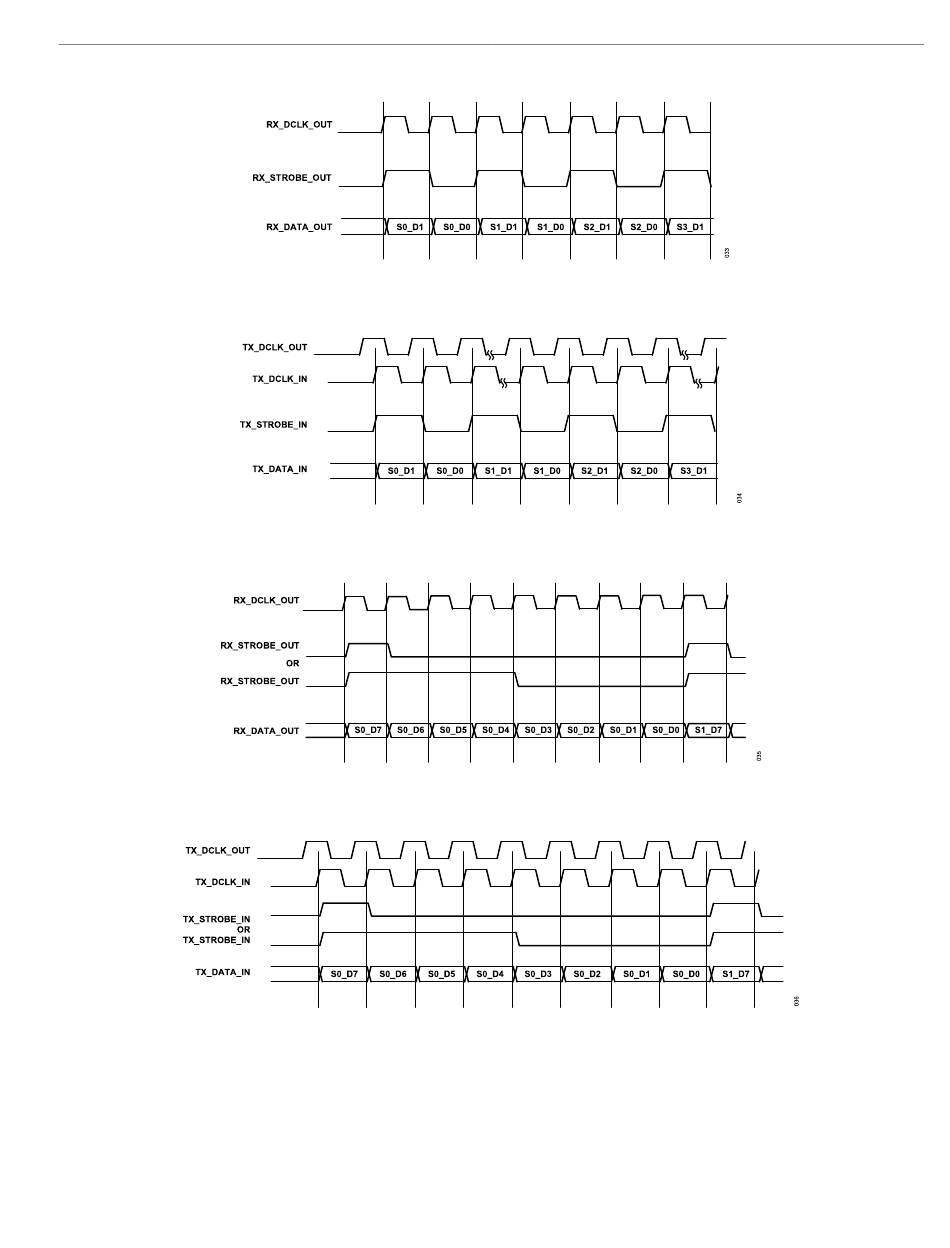

Figure 34. Receive CSSI Timing for 2-Bit Symbols (MSB First)
Figure 35. Transmit CSSI Timing for 2-Bit Symbols (MSB First)
Figure 36. Receive CSSI Timing for 8-Bit Symbols (MSB First)
Figure 37. Transmit CSSI Timing for 8-Bit Symbols (MSB First)
