Reference Manual ADRV9001
ADRV9001 EVALUATION SYSTEM

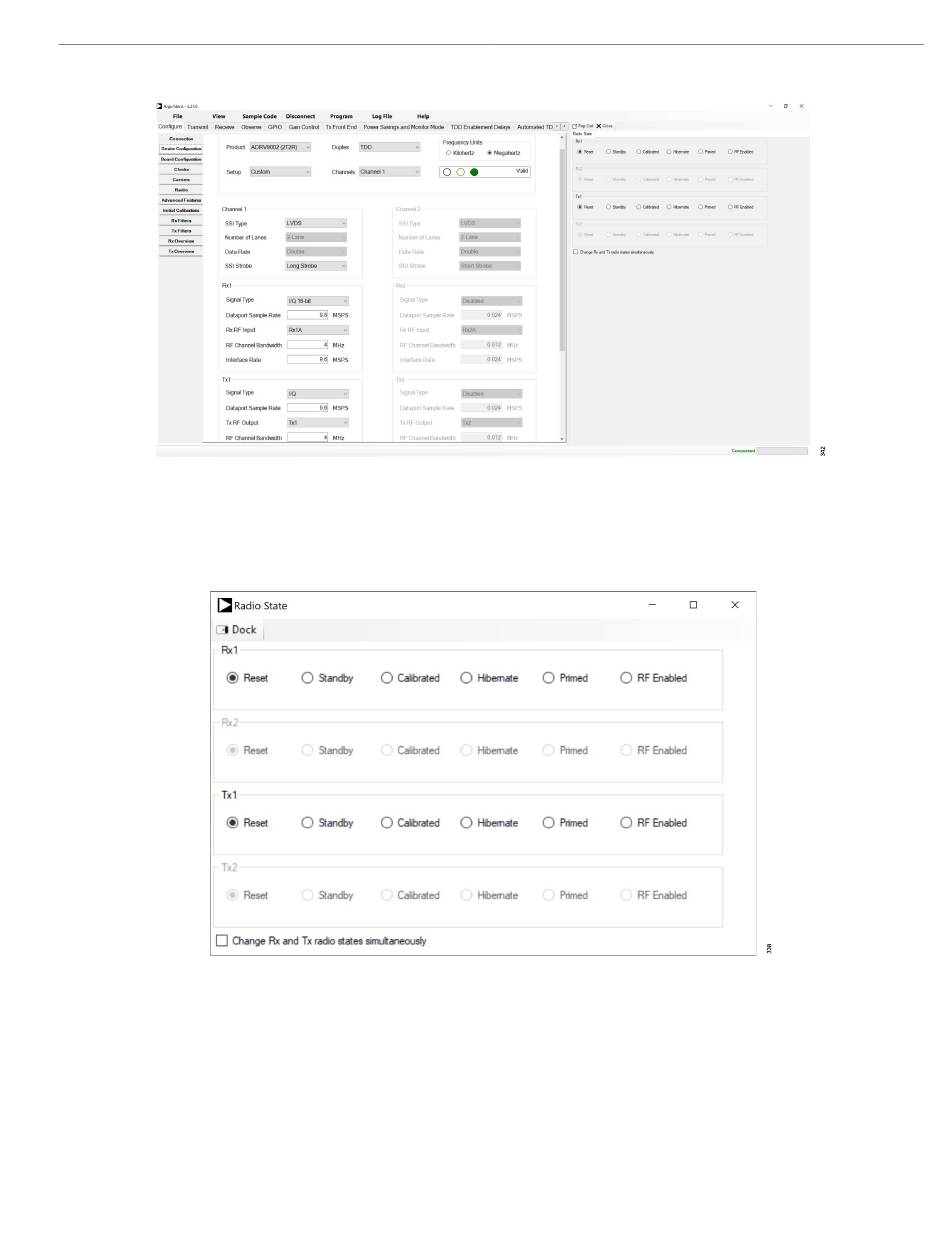

Figure 351. Pop-Up Options Docked in TES
Radio State
Once the board is connected, view/set the radio state under View->Radio State. Certain operations in the GUI can set the radio to certain
states. Be aware of the state the radio is operating on and control the GUI accordingly. Also set the radio to a certain state from this window.
Figure 352. Radio State Window
Power/Temperature Monitoring
The ADRV9001 evaluation software allows to monitor the power usage of the system. On top, Power/Temp Monitoring shows the detailed
voltage, current, and power status of each power domain. It also shows the temperature from an internal temperature sensor. Figure 353 is a
screenshot of the power monitor window.
Note that the ADRV9001 does not currently support the VDDA_1P0 power domain. So, ignore its read back.
