Reference Manual ADRV9001
DIGITAL PREDISTORTION (DPD)

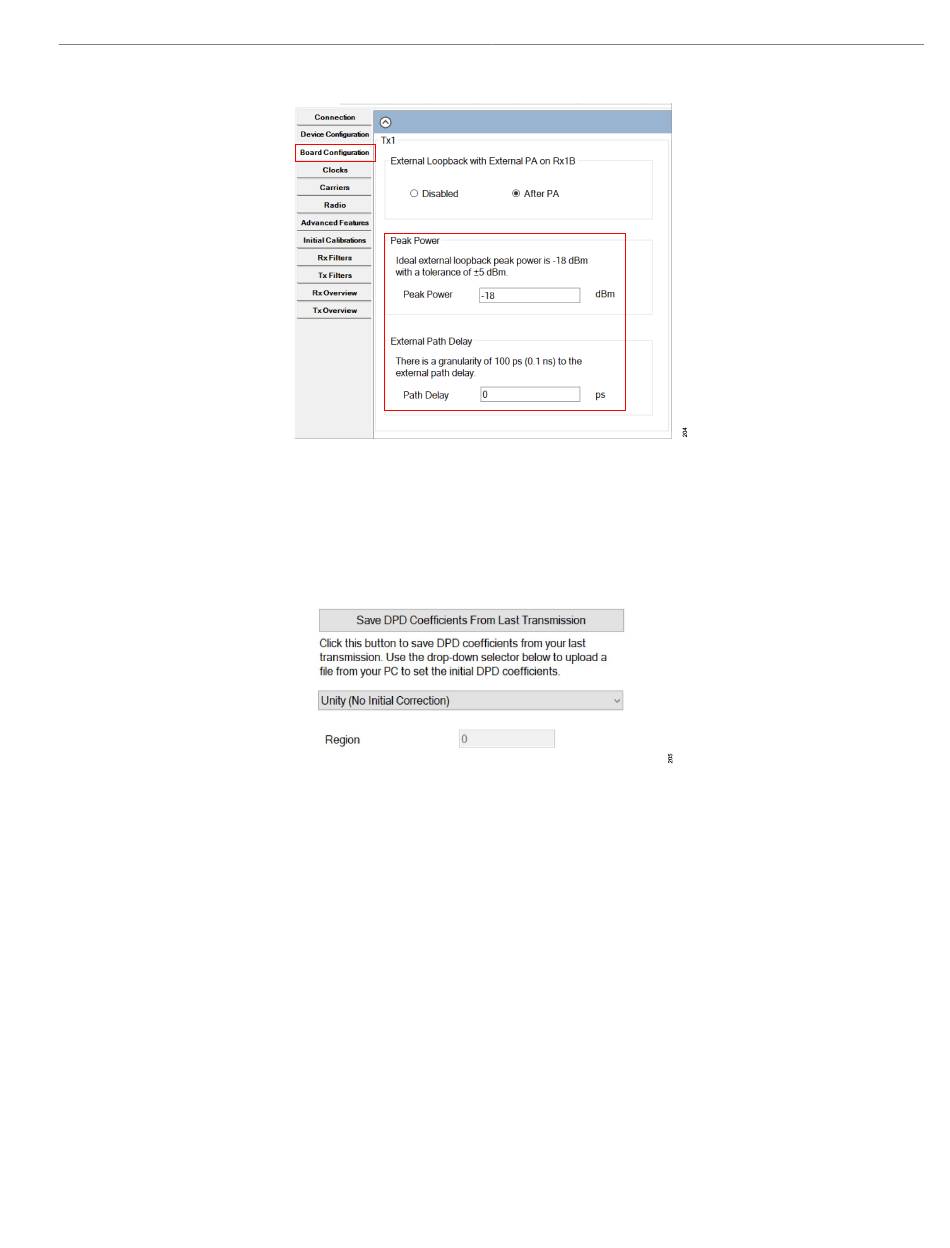

Figure 223. Configuring Board Configuration Related Parameters Through TES

SAVE AND LOAD DPD COEFFICIENTS FROM LAST TRANSMISSION

The ADRV9001 DPD also allows to save and load DPD coefficients from the last transmission. Therefore, the DPD can either start from scratch
(unity coefficients) or a set of known coefficients. This is a very useful option to reach convergence quickly under a similar transmit operation
condition. Use this feature as shown here in the TES.
Figure 224. Save and Load DPD Coefficients from Last Transmission Through TES

DEFINE THE FREQUENCY REGION WHEN PERFORMING DPD WITH FH

Perform the DPD operation during FH. Define the seven frequency regions as shown here in the TES.
analog.com Rev. A | 245 of 377
