One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the 240 Watts

FEATURES

Full support evaluation kit for the
240 W full bridge topology (adjustable to phase shifted full
bridge topology)
Rated power of 12 V dc, 20 A
PMBus Revision 1.2 compliant with PEC and extended
manufacturer specific commands
32-bit password protection with command masking
64 address selections (16 base addresses, expandable to 64)
6 PWM control signals, 625 ps resolution
Duty cycle double update rate
Fast line voltage feedforward
Redundant programmable OVP
Frequency synchronization
Soft-start and soft-stop functionality
Droop current sharing
On-board tests for housekeeping functions
PMBus communication
Software GUI

EVALUATION KIT CONTENTS

ADP1055-EVALZ
evaluation board
ADP1055DC1-EVALZ
daughter card
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
Isolated Power Supply with PMBus Interface
ADP1055

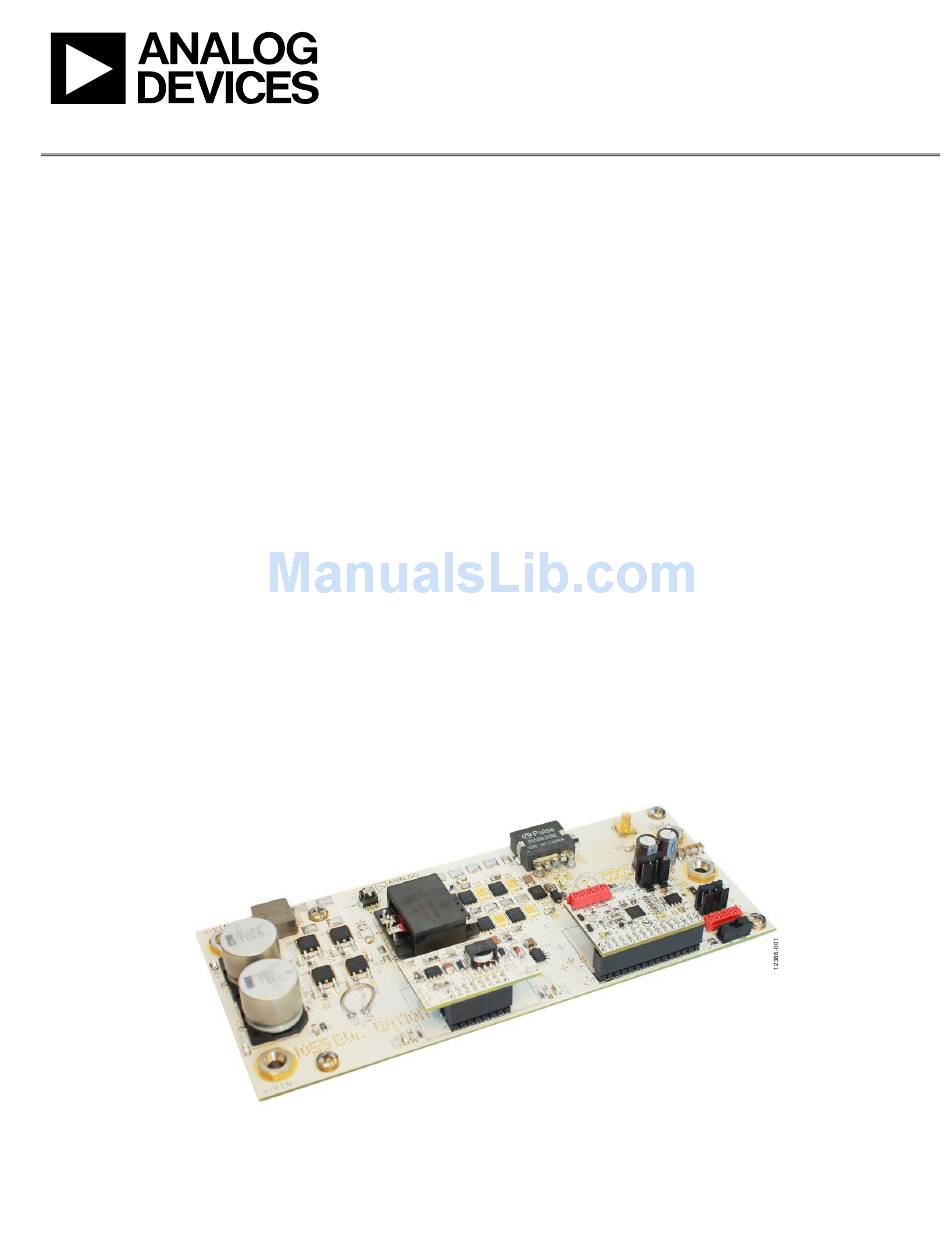

EVALUATION BOARD SETUP

Figure 1.
Rev. B | Page 1 of 43
ADP1055-EVALZ User Guide
ADP1055
Digital Controller for

ADDITIONAL EQUIPMENT NEEDED

2
The USB-I
C connector, ADP-I2C-USB-Z, with Driver CD
(must order separately from Analog Devices, Inc.)

GENERAL DESCRIPTION

This evaluation board, together with a daughter card, allows
you to evaluate the
With the USB to I
(GUI), the
ADP1055
with a PC via a USB port.
The evaluation board is set up to act as an isolated PSU with
a rated load of 12 V, 20 A from a 38 V dc to 60 V dc source.
Connectors on the evaluation board provide synchronization,
as well as share bus and PMBus™ interfaces, allowing direct
parallel evaluation when multiple evaluation boards are
connected in parallel to a common bus.
Multiple test points allow easy access to all critical points/pins.
ADP1055
Evaluation Board
ADP1055
as a power supply application.
2
C connector, and the graphical user interface
on the evaluation board can be interfaced
UG-710
