Receiver Rf Port Impedance Matching Network - Analog Devices ADRV9005 Reference Manual

Reference Manual
RF PORT INTERFACE INFORMATION

RECEIVER RF PORT IMPEDANCE MATCHING NETWORK

RX1A± and RX2A± Impedance Matching Network
The ADRV9001 evaluation board uses both the top and bottom layers of the PCB evaluation platform to accommodate two balun footprints.
The 0805 footprint accommodates the high-frequency narrowband baluns, while the backside accommodates the larger DB1627 case-style
transformer.
The PCB traces of the evaluation board are included in the simulation when designing the impedance match.
matching networks specific to the ADRV9001 evaluation board. The component values apply to RX1A± and RX2A±.
RX1B± and RX2B± Impedance Matching Network
Both the RXA and RXB paths share the same input S-parameters. However, given the ball locations of the RXB paths are in an inner row and
column, and the layout of both paths are slightly different, the RXB path has its own distinct impedance matching network different from the
RXA path. On the RXB path, the low-frequency DB1627 case style transformer is located on the top side of the evaluation platform, and the
high-frequency 0805 footprint transformer is located at the bottom of the board. This configuration is the opposite of the RXA path. This is done
to minimize the coupling of the receive paths.
The PCB traces of the evaluation board are included in the simulation when designing the impedance match.
matching networks specific to the ADRV9001 evaluation board. The component values apply to RX1B± and RX2B±.
Table 112. RX1A± and RX2A± Impedance Matching Network
Frequency Balun
30MHz to
MiniCircuits
3GHz
TCM2-33WX+
analog.com

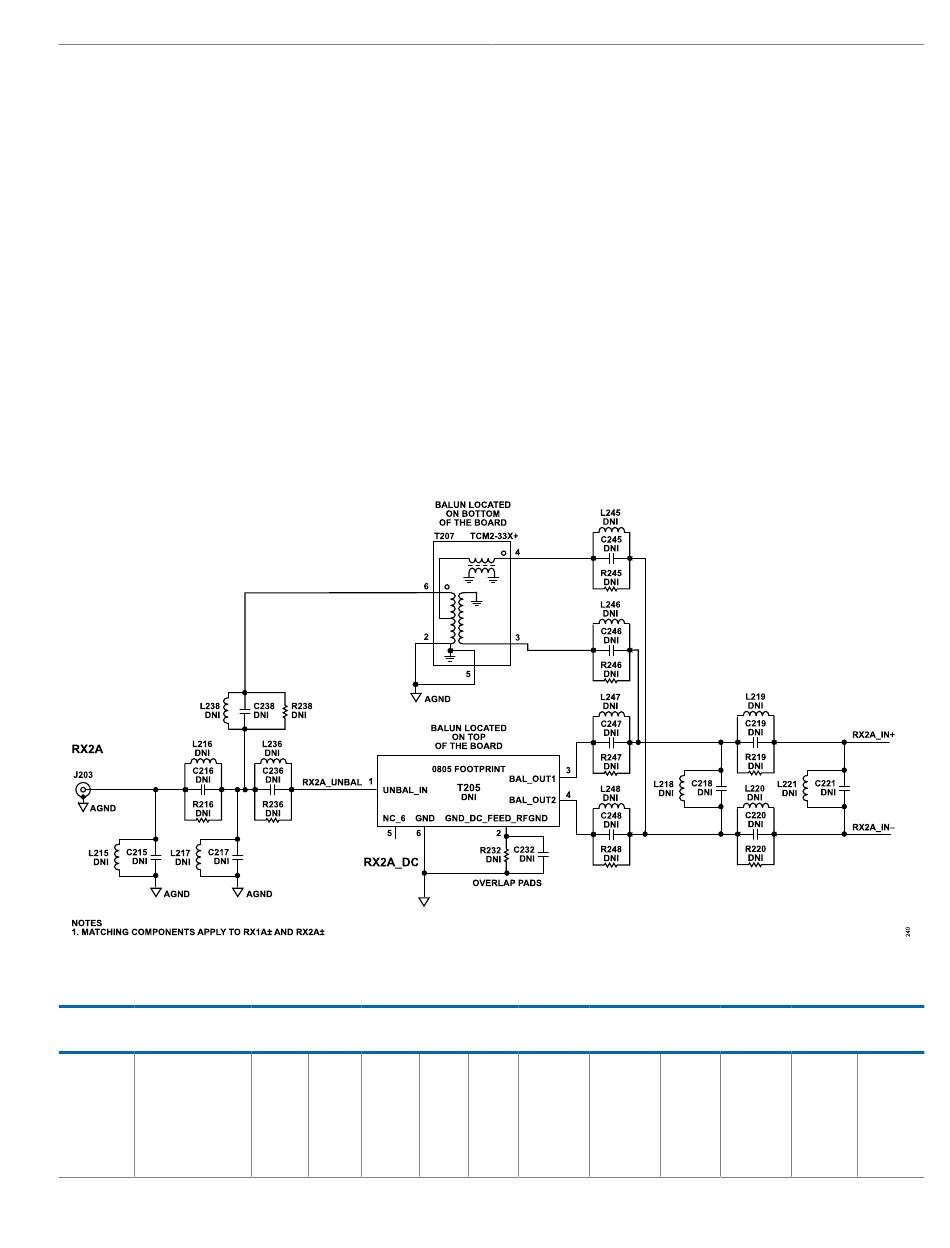

Figure 260. RX1A and RX2A Impedance Matching Network
L/C/R L/C/R L/C/R
215 216 L/C 217 238
L215: L216: L217: L238:
DNI 1.2nH DNI DNI
C215: AVX Ind C217: C238:
DNI (L0201 DNI DNI
Series) R238:
0Ω
L/C/R 245 L/C/R 247
L/C/R
L/C/R 246 L/C/R 248
236
L236: L245/246: L247/248:
DNI DNI DNI
C236: C245/246: C247/248:
DNI DNI DNI
R236: R245/246: R247/248:
DNI 0Ω DNI
ADRV9001
Table 112 provides impedance
Table 113 provides impedance
L/C/R 219
L/C/R 220
L/C 218 L/C 221
L218: L219/220: L221: DNI
DNI DNI C221: DNI
C218: C219/220:
DNI 470 pF
Murata
Rev. A | 276 of 377
C232
R232
C232:DNI
R232:DNI
