Evaluating the ADRF5519 Dual-Channel, 2.3 GHz to 2.8 GHz, 20 W Receiver Front End
FEATURES
Full featured evaluation board for the
►
Easy connection to test equipment
►
Thru line for calibration
►
EQUIPMENT NEEDED
DC power supplies
►
Network analyzer
►

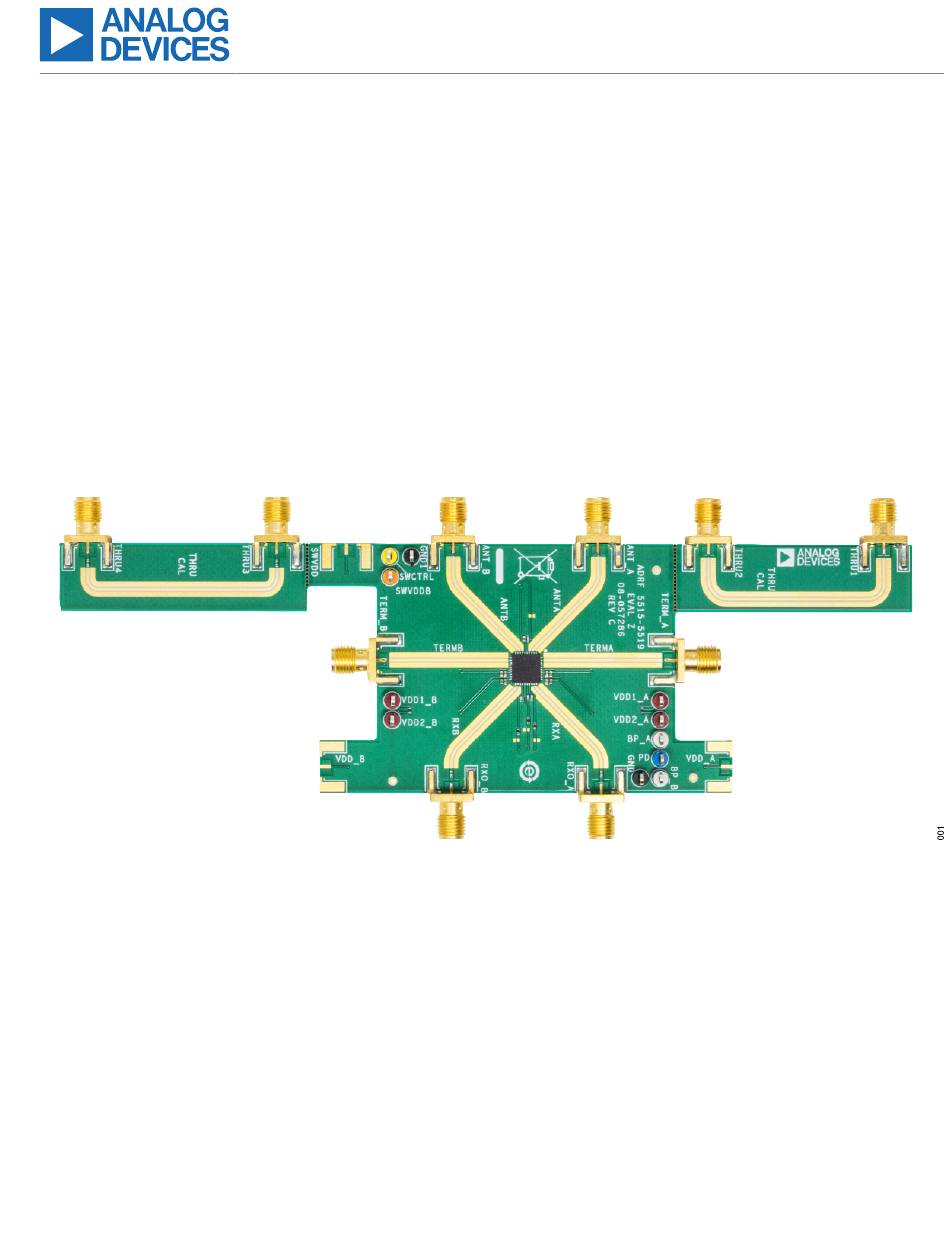

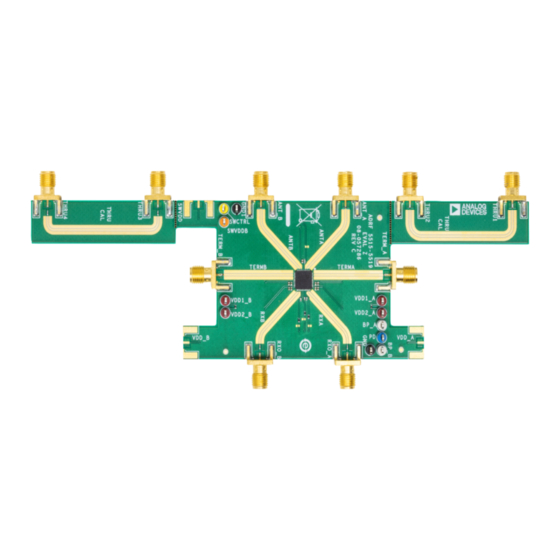

ADRF5519-EVALZ PHOTOGRAPH
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADRF5519
Figure 1.
User Guide | UG-1948
ADRF5519-EVALZ User Guide
GENERAL DESCRIPTION
The ADRF5519 is an integrated, dual-channel, 2.3 GHz to 2.8 GHz,
20 W receiver front end ideally suited for time division duplexing
(TDD) wireless infrastructure applications. The ADRF5519 consists
of a high power switch and a two-stage low noise amplifier (LNA)
on each channel.
This user guide describes the ADRF5519-EVALZ, designed to
easily evaluate the features and performance of the ADRF5519. A
photograph of the ADRF5519-EVALZ is shown in
The ADRF5519 data sheet provides full specifications for the
ADRF5519. Consult the ADRF5519 data sheet in conjunction with
this user guide when using the ADRF5519-EVALZ.
Figure
1.
Rev. 0 | 1 of 8
Advertisement
Table of Contents
Related Manuals for Analog Devices ADRF5519-EVALZ
Summary of Contents for Analog Devices ADRF5519-EVALZ
-
Page 1: Features
► of a high power switch and a two-stage low noise amplifier (LNA) on each channel. EQUIPMENT NEEDED This user guide describes the ADRF5519-EVALZ, designed to DC power supplies ► easily evaluate the features and performance of the ADRF5519. A Network analyzer ►... -
Page 2: Table Of Contents
Test Procedure............5 ADRF5519-EVALZ Photograph......1 Biasing Sequence..........5 Evaluation Board Hardware........3 Expected Results..........6 Overview............3 Evaluation Board Artwork and Schematic..... 7 ADRF5519-EVALZ Layout......... 3 Ordering Information..........8 Power Supply Inputs.......... 3 Bill of Materials........... 8 REVISION HISTORY 4/2021—Revision 0: Initial Version analog.com... -
Page 3: Evaluation Board Hardware
The typical total current consumption for the ADRF5519 is 220 mA in receive operation, high gain mode. Each supply pin for the LNAs of the ADRF5519-EVALZ is decou- pled with 1 nF and 10 µF capacitors. A 10 µF capacitor is used on the supply line for the switches of the ADRF5519-EVALZ. -
Page 4: Control Inputs
UG-1948 EVALUATION BOARD HARDWARE CONTROL INPUTS RF INPUTS AND OUTPUTS The ADRF5519-EVALZ has four control inputs, as described in The ADRF5519-EVALZ has ten edge mounted SMA connectors Table 3. Each control input is decoupled with a 100 pF capacitor. for the RF inputs and outputs, as shown in Table 4. -
Page 5: Test Procedure
ADRF5519-EVALZ: and the PCB. The thru line must be measured to calibrate out the ADRF5519-EVALZ effects. The thru line is the summation of an RF 1. Connect the GND or GND1 test point to the ground terminal of input line and an RF output line that are connected to the device the power supply. -
Page 6: Expected Results
User Guide UG-1948 TEST PROCEDURE EXPECTED RESULTS Figure 4. Receive Operation, High Gain Figure 6. Receive Operation, Low Gain Figure 5. Receive Operation, Antenna to Termination Isolation Figure 7. Transmit Operation, Antenna to Termination Insertion Loss analog.com Rev. 0 | 6 of 8... -
Page 7: Evaluation Board Artwork And Schematic
User Guide UG-1948 EVALUATION BOARD ARTWORK AND SCHEMATIC Figure 8. Evaluation Board Assembly Diagram Figure 9. Evaluation Board Schematic analog.com Rev. 0 | 7 of 8... -
Page 8: Ordering Information
