POWER SAVING AND MONITOR MODE
3. In the Receive tab, set the interface gain to 0 dB.
4. Either run the SYNC path delay or give a known value.
5. Now, select 'Sync' detection mode and enable the desired vectors.
Enable External PLL with SPI Main
To enable an external PLL, follow these steps:
1. Use SPI main to send a wakeup command when the monitor mode enters the 'detecting' state.
2. Program the device, enable SPI Main from the 'Auxiliary' tab and set the trigger source to 'Monitor'.
analog.com

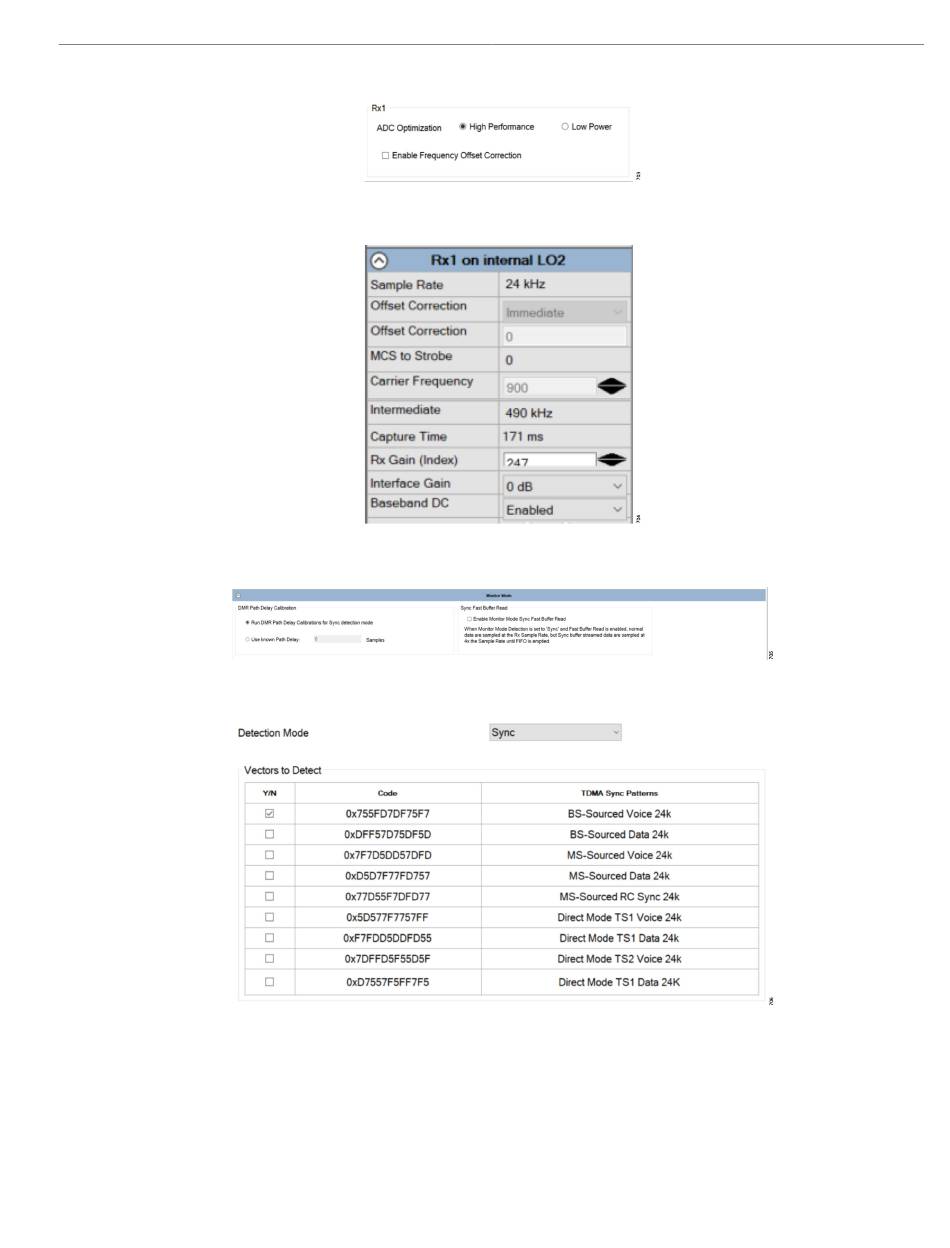

Figure 203. Sync Detect Settings 2
Figure 204. Sync Detect Settings 3
Figure 205. Sync Detect Settings 4
Figure 206. Sync Detect Settings 5
