DATA INTERFACE
An optional LVDS port (alternative function of Digital GPIO) can also be configured as an output LVDS pad used as a reference clock
TX_DCLK_OUT (±) for the baseband processor. Use TX_DCLK_OUT to generate the LSSI clock, strobe, and data signal.
Transmit LSSI with Separate Lanes for I and Q
Figure 55 shows the transmit LSSI (Tx1 and Tx2) for a 16-bit I/Q data sample with MSB first configuration.
Figure 56 shows the transmit LSSI (Tx1 and Tx2) for a 12-bit I/Q data sample with MSB first configuration.
The TX_STROBE signal is aligned with the first bit of the serialized data (I and Q), and can be configured to be high:
For a half-clock cycle at the start of the I and Q sample transmit. For a 16-bit data sample, the TX_STROBE is high for a half-clock cycle and
►
low for a half and 15 clock cycles. For a 12-bit data sample, the TX_STROBE is high for a half-clock cycle and low for a half and 11 clock
cycles.
For half of I and Q data duration. For a 16-bit data sample, the TX_STROBE is high for 4 clock cycles, and low for 4 clock cycles (Q data
►
sample). For a 12-bit data sample, the TX_STROBE is high for 3 clock cycles and low for 3 clock cycles.
In the 12-bit I/Q mode, 12-bit samples from LSSI are extended to 16 bits by padding four bits zero in LSB for the following transmit datapath
process.
Transmit LSSI with One-Lane for I and Q
In this mode, only one-lane is used to transfer I and Q data samples. The I/Q data bits can be deserialized with configurable I or Q first and
MSB or LSB first. The strobe signal can be configured to high for a half-clock cycle to indicate the start of the I and Q symbols or for half of the I
and Q data duration to distinguish between I and Q data.
Figure 57 shows the one-lane LSSI (Tx1 and Tx2) for a 16-bit I/Q data sample with I sample and MSB first configuration.
analog.com

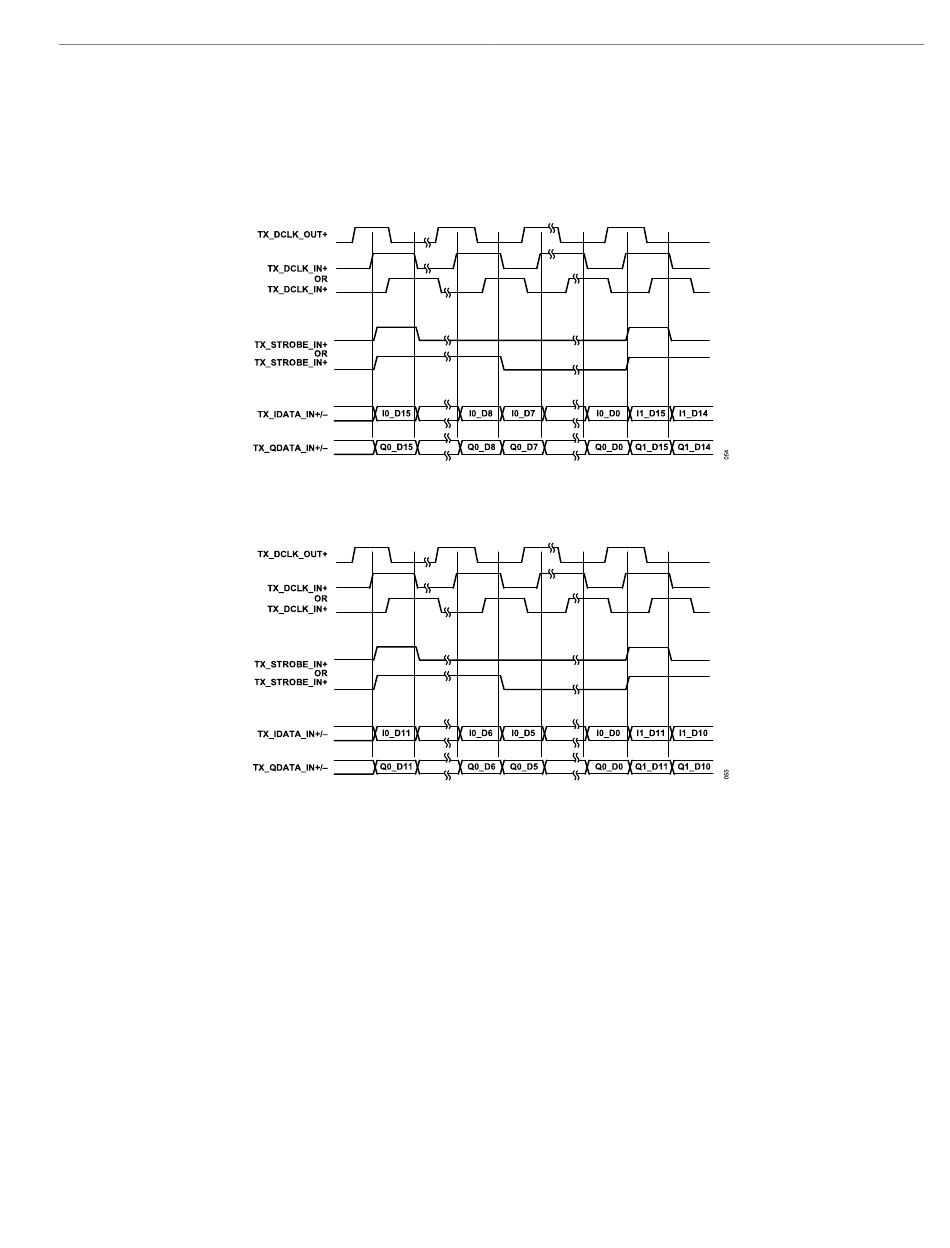

Figure 55. Transmit LSSI Timing for 16-Bit I/Q Data Sample on Separate Lanes
Figure 56. Transmit LSSI Timing for 12-Bit I/Q Data Sample on Separate Lanes
