Evaluating the ADRF5048, Silicon SP4T Switch, Nonreflective, 100 MHz to 45 GHz
FEATURES
Full featured evaluation board for the
►
Simple connection to test equipment
►
Thru line for calibration
►
EQUIPMENT NEEDED
DC power supplies
►
Network analyzer
►
GENERAL DESCRIPTION
The ADRF5048 is a SP4T, nonreflective switch manufactured in the
silicon process.
This user guide describes the ADRF5048-EVALZ evaluation board,
which was designed to simply evaluate the features and perform-
ance of the ADRF5048. A photograph of the evaluation board is
shown in
Figure
1.
Note that the ADRF5048 IC is populated on the ADRF5042 bare
evaluation board. However, the whole assembly is the ADRF5048-
EVALZ.
The ADRF5048 data sheet provides full specifications for the
ADRF5048. Consult the ADRF5048 data sheet in conjunction with
this user guide when using the ADRF5048-EVALZ.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADRF5048
User Guide | EVAL-ADRF5048
ADRF5048-EVALZ EVALUATION BOARD
PHOTOGRAPH

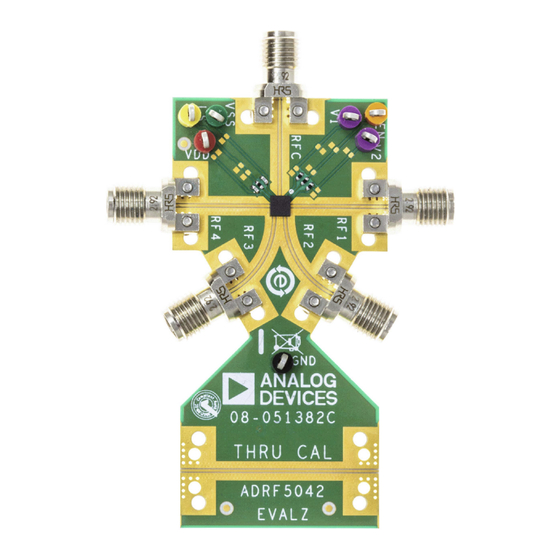

Figure 1. Evaluation Board Photograph
UG-2146
Rev. 0 | 1 of 7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices ADRF5048-EVALZ
Summary of Contents for Analog Devices ADRF5048-EVALZ
- Page 1 The ADRF5048 is a SP4T, nonreflective switch manufactured in the silicon process. This user guide describes the ADRF5048-EVALZ evaluation board, which was designed to simply evaluate the features and perform- ance of the ADRF5048. A photograph of the evaluation board is...
- Page 2 Features..............1 RF Inputs and Outputs ........3 Equipment Needed..........1 Test Procedure............4 General Description..........1 Biasing Sequence..........4 ADRF5048-EVALZ Evaluation Board Photograph 1 Expected Results..........5 Evaluation Board Hardware........3 Evaluation Board Schematic and Artwork..... 6 Overview............3 Ordering Information..........7 Board Layout............3 Bill of Materials...........
- Page 3 EVALUATION BOARD HARDWARE OVERVIEW POWER SUPPLY AND CONTROL INPUTS The ADRF5048-EVALZ is a connectorized board, assembled with The ADRF5048-EVALZ has two power supply inputs, four control ADRF5048 and its application circuitry. All components are inputs, and a ground, as shown in Table 1.
- Page 4 ADRF5048-EVALZ: Note that the measurements performed at the 2.92 mm connectors of the ADRF5048-EVALZ include the losses of the 2.92 mm con- 1. Connect the GND test point to the ground terminal of the power nectors and the PCB. The thru line must be measured to calibrate supply.
- Page 5 User Guide EVAL-ADRF5048 TEST PROCEDURE EXPECTED RESULTS Figure 4. Insertion Loss for RFC to RFx Selected vs. Frequency Figure 6. Insertion Loss for RFC to RF1 vs. Frequency over Temperature Figure 5. Return Loss for RFC when RFx Selected vs. Frequency Figure 7.
- Page 6 User Guide EVAL-ADRF5048 EVALUATION BOARD SCHEMATIC AND ARTWORK Figure 8. ADRF5048-EVALZ Evaluation Board Schematic Figure 9. ADRF5048-EVALZ Evaluation Board Assembly Diagram analog.com Rev. 0 | 6 of 7...
- Page 7 Evaluation Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
